13-2



M4GB-13-001
Model ZW180 ZW220
Bucket Type
FBD260-63F FBD310-63F FBD330-63G FBD350-63G
Bucket Capacity : heaped
m
3
2.6 3.1 3.3 3.5
Bucket Capacity : Struck
m
3
2.3 2.7 2.8 3.0
Operating Weight
kg 14550 14650 18030 18070
Tipping Load
kg 11590 11440 12650 12600

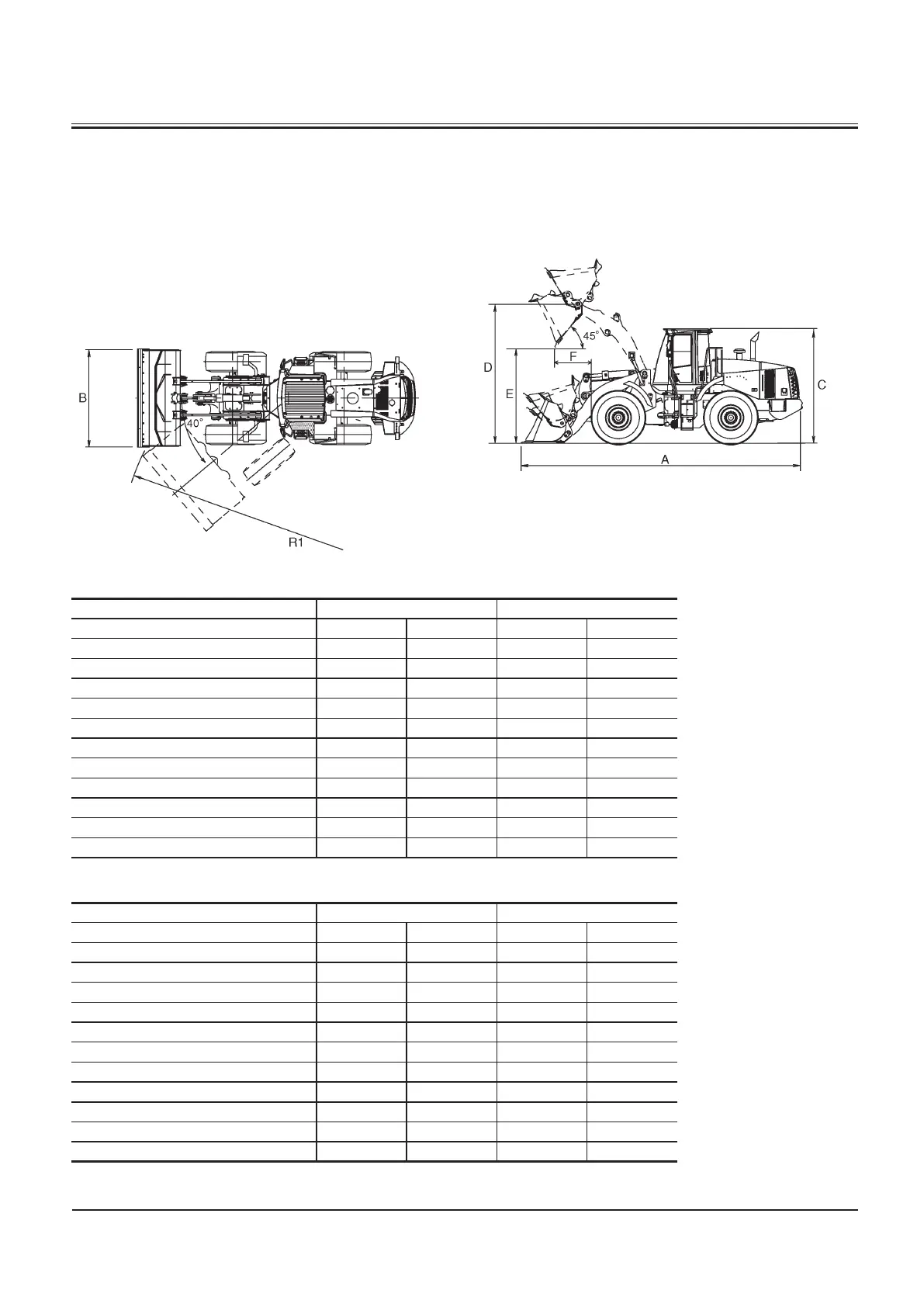

A: Overall Length
mm 7610 7760 8215 8265
B: Overall Width (Bucket)
mm 2535 2535 2910 2910
C: Overall Height
mm 3285 3285 3370 3370
D: Bucket hinge Height
mm 3920 3920 4085 4085
E: Dumping Clearance (45°)
mm 2800 2690 2900 2870
F: Dumping Reach (45°)
mm 1070 1180 1130 1170
R1: Minimum Rotation Radius
mm 6030 6070 6600 6620
Model ZW250 ZW310
Bucket Type
FBD360-63H FBD380-63H FBD420-63J FBD450-63J
Bucket Capacity : heaped
m
3
3.6 3.8 4.2 4.5
Bucket Capacity : Struck
m
3
3.1 3.2 3.6 3.9
Operating Weight
kg 20360 20410 23490 23560
Tipping Load
kg 13950 13900 16550 16450
A: Overall Length
mm 8350 8395 8840 8905
B: Overall Width (Bucket)
mm 2980 2980 2980 2980
C: Overall Height
mm 3400 3400 3460 3460
D: Bucket hinge Height
mm 4190 4190 4390 4390
E: Dumping Clearance (45°)
mm 2970 2940 3070 3020
F: Dumping Reach (45°)
mm 1100 1130 1240 1290
R1: Minimum Rotation Radius
mm 6740 6750 6920 6930
