Model ZW180 ZW220 ZW250
Bucket Type
B3*270-63F B3*330-63G B3*360-63H
Bucket Capacity : heaped
m
3
2.7 3.3 3.6
Bucket Capacity : Struck
m
3
2.3 2.8 3.1
Operating Weight
kg 14380 17910 20330
Tipping Load
kg 11890 12900 13900

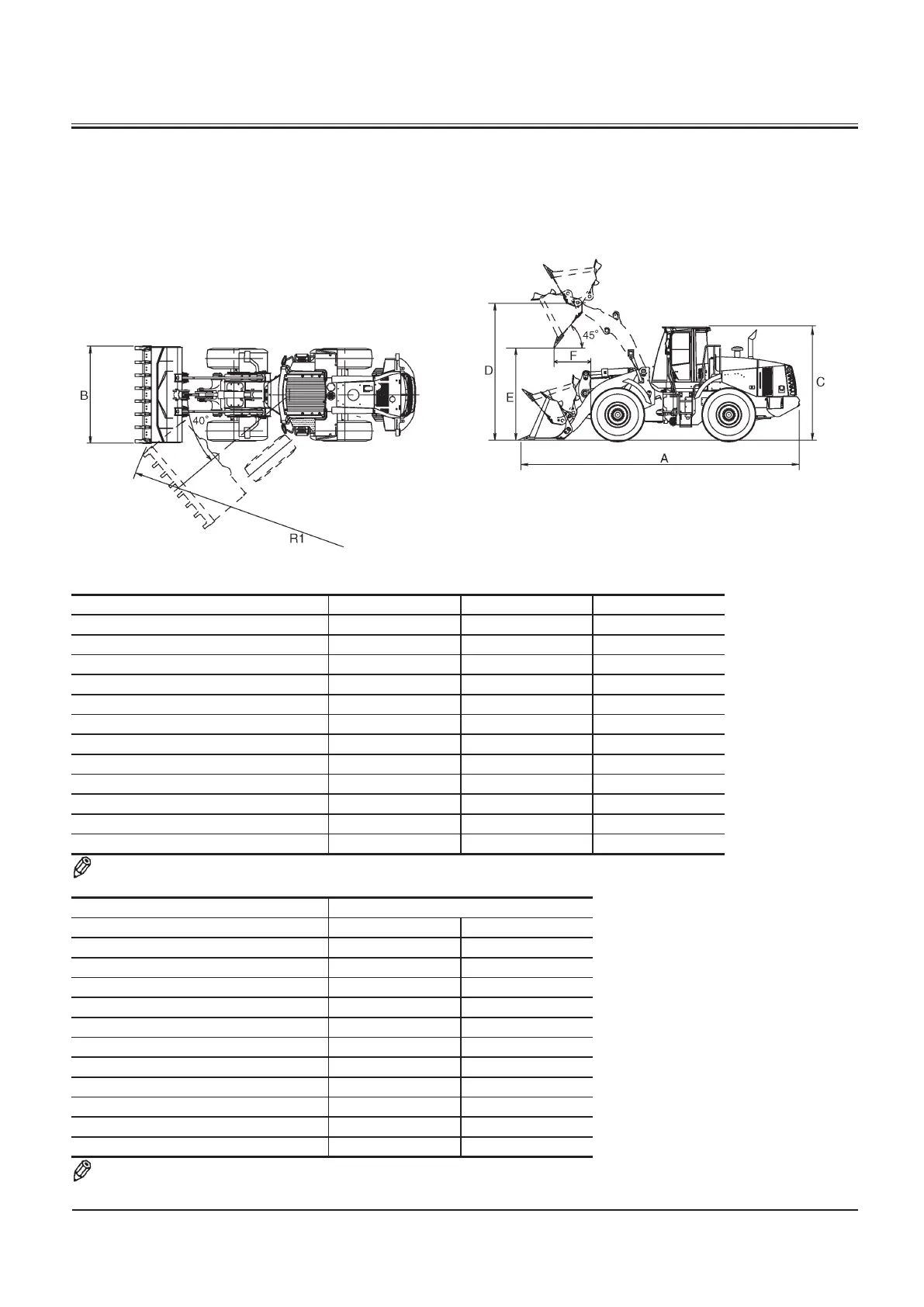

A: Overall Length
mm 7770 8400 8570
B: Overall Width (Bucket)
mm 2535 2910 2980
C: Overall Height
mm 3285 3370 3400
D: Bucket Hinge Height
mm 3920 4085 4190
E: Dumping Clearance (45°)
mm 2690 2770 2820
F: Dumping Reach (45°)
mm 1220 1270 1260
R1: Minimum Rotation Radius
mm 6070 6650 6820
NOTE: These specifications are subject to change without notice.
Model ZW310
Bucket Type
B3*400-63J B3*430-63J
Bucket Capacity : heaped
m
3
4.0 4.3
Bucket Capacity : Struck
m
3
3.5 3.7
Operating Weight
kg 23350 23500
Tipping Load
kg 16850 16700
A: Overall Length
mm 9015 9080
B: Overall Width (Bucket)
mm 2980 2980
C: Overall Height
mm 3460 3460
D: Bucket Hinge Height
mm 4390 4390
E: Dumping Clearance (45°)
mm 2950 2900
F: Dumping Reach (45°)
mm 1380 1430
R1: Minimum Rotation Radius
mm 6960 6980
