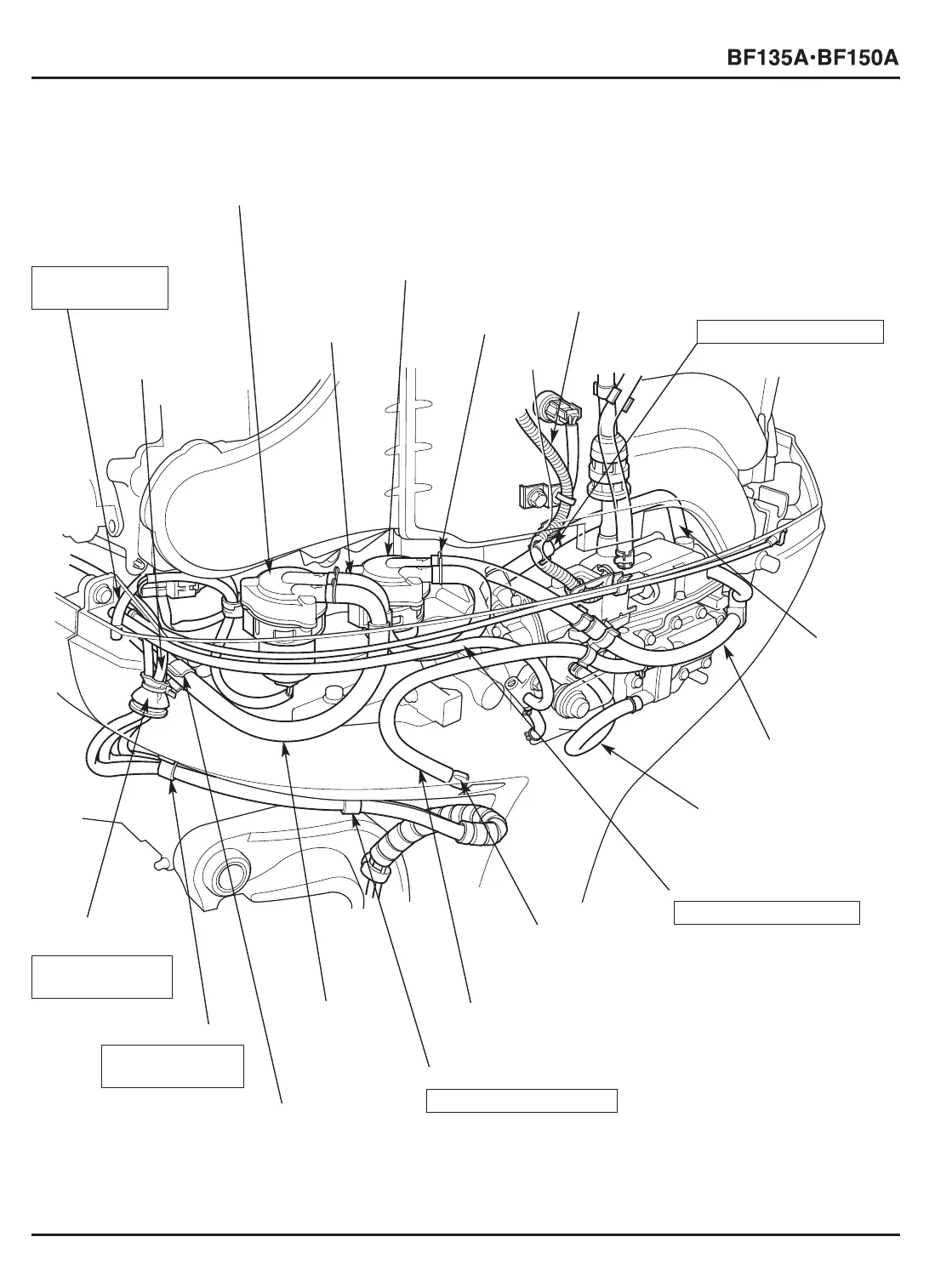

Honda BF135A - Page 85

2-75
[18]
UNDERCASE
GROMMET C
INSTALLATION:
P. 2-56
[2]
SPEED SENSOR
TUBE A
[15] 14 mm CLIP
INSTALLATION:
P. 2-63
[15] 14 mm CLIP
INSTALLATION: P. 2-63
[4]
FUEL TUBE C
[5]
FUEL STRAINER
[6]
TUBE CLIP
B12
[3]
WATER SEPARATOR
with WATER LEVEL
SENSOR
[10]
FUEL TUBE E
[14] 7 x 400 mm TUBE
[11]
WATER TUBE F
[13] WATER CHECK
GROMMET
[17] 14 mm FUEL
TUBE CLIP
[16]
FUEL TUBE A
[12]
3.5 x 430 mm FUEL TUBE
INSTALLATION: P. 2-69
[7]
MAIN WIRE
HARNESS
[1]
4 x 7 x 160 mm
VINYL TUBE
INSTALLATION:
P. 2-69
[8] HOSE CLAMP
INSTALLATION: P. 2-61
[9]
FUEL HOSE
(HIGH
PRESSURE
SIDE)
