5. Configuration and Function of Internal Memory
5.5. PUT/GET function block use area (parameter area)
102 Analog Input Module 2MLF-AV8A, AC8A User's Guide R200
Honeywell September 2010

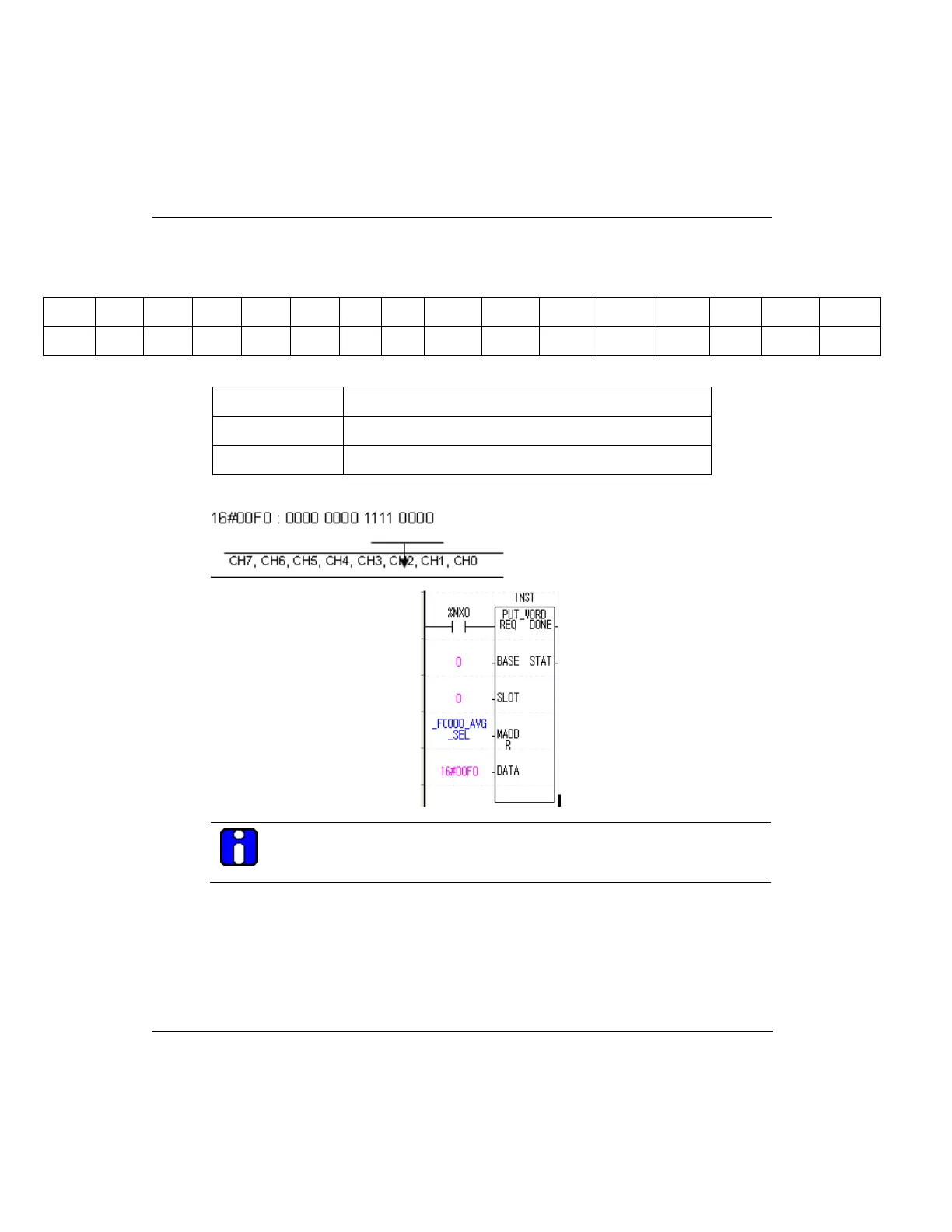

3. The following figure is an example setting for CH0~CH3 as count average and
CH4~CH7 as time average.
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
- - - - - - - - CH7 CH6 CH5 CH4 CH3 CH2 CH1 CH0
BIT Description
0 Count average
1 Time average
ATTENTION
For setting average process by Time/Count, enable average process.
Average value setting
1. Constant value setting range of Time/Count is as follows:
− Time average setting range: 4 ~ 16000 (ms)
− Count average setting range: 2 ~ 64000 (times)
