5. Configuration and Function of Internal Memory
5.5. PUT/GET function block use area (parameter area)
104 Analog Input Module 2MLF-AV8A, AC8A User's Guide R200
Honeywell September 2010
ATTENTION
For setting Time/Count average process value, enable average process..
Error code
1. Saves error code detected at A/D conversion module.

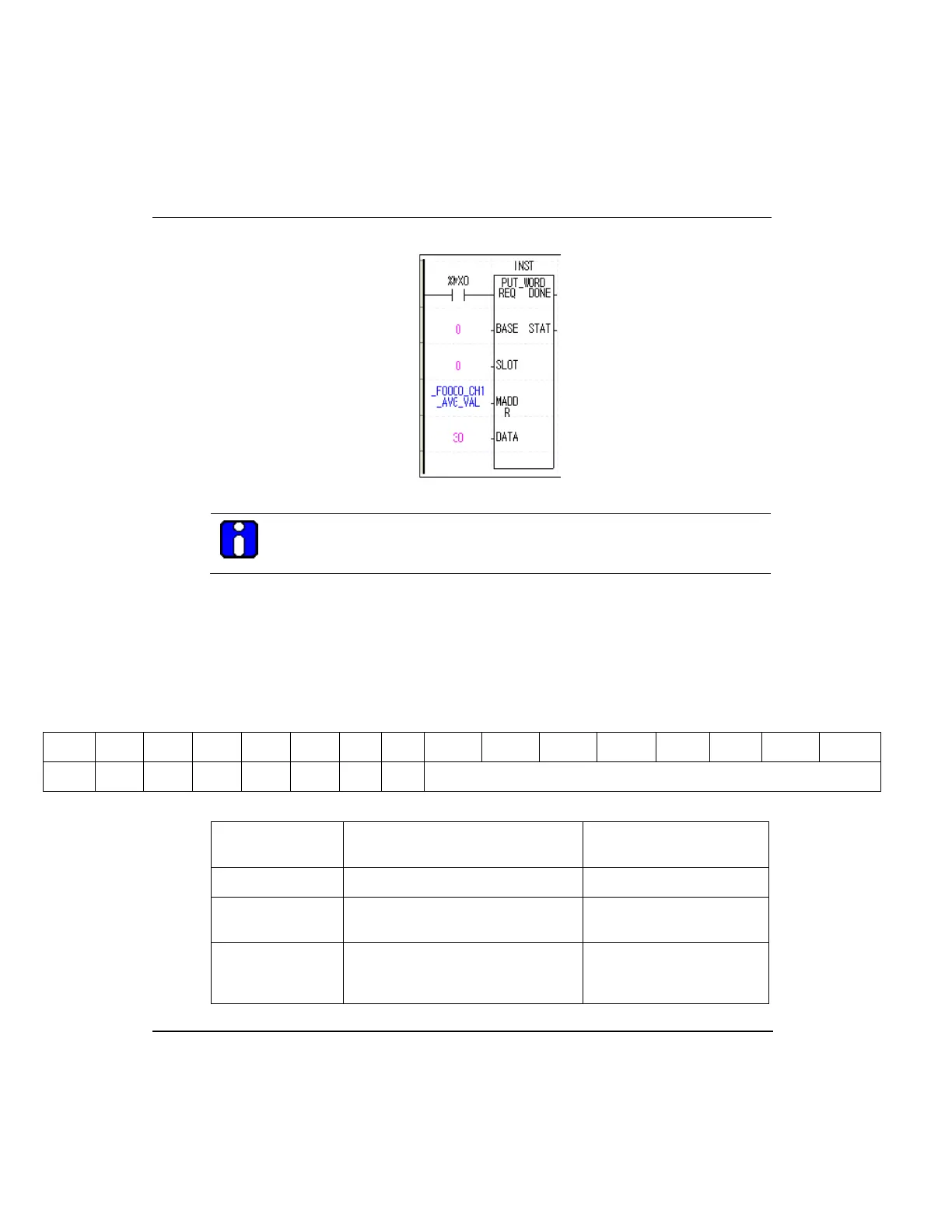

2. The following figure is a program example for reading error code
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
- - - - - - - - Error Code
Error Code
(Decimal)
Error Contents Remark
0 Normal RUN RUN LED on
20
Module error (A/D Conversion
Error)
RUN LED flickers every
0.2s
40#
Offset value of 1~5V (4~20mA)
range is set as larger or equal than
gain value
