CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 105
Appendix C: Connecting to the Panels
C.1 Gateway Board Connections
The gateway board can connect with a cellular module, wireless aerials, the CLSS Site
Manager, a configuration computer, a panel, a mobile device, and an external power
supply.

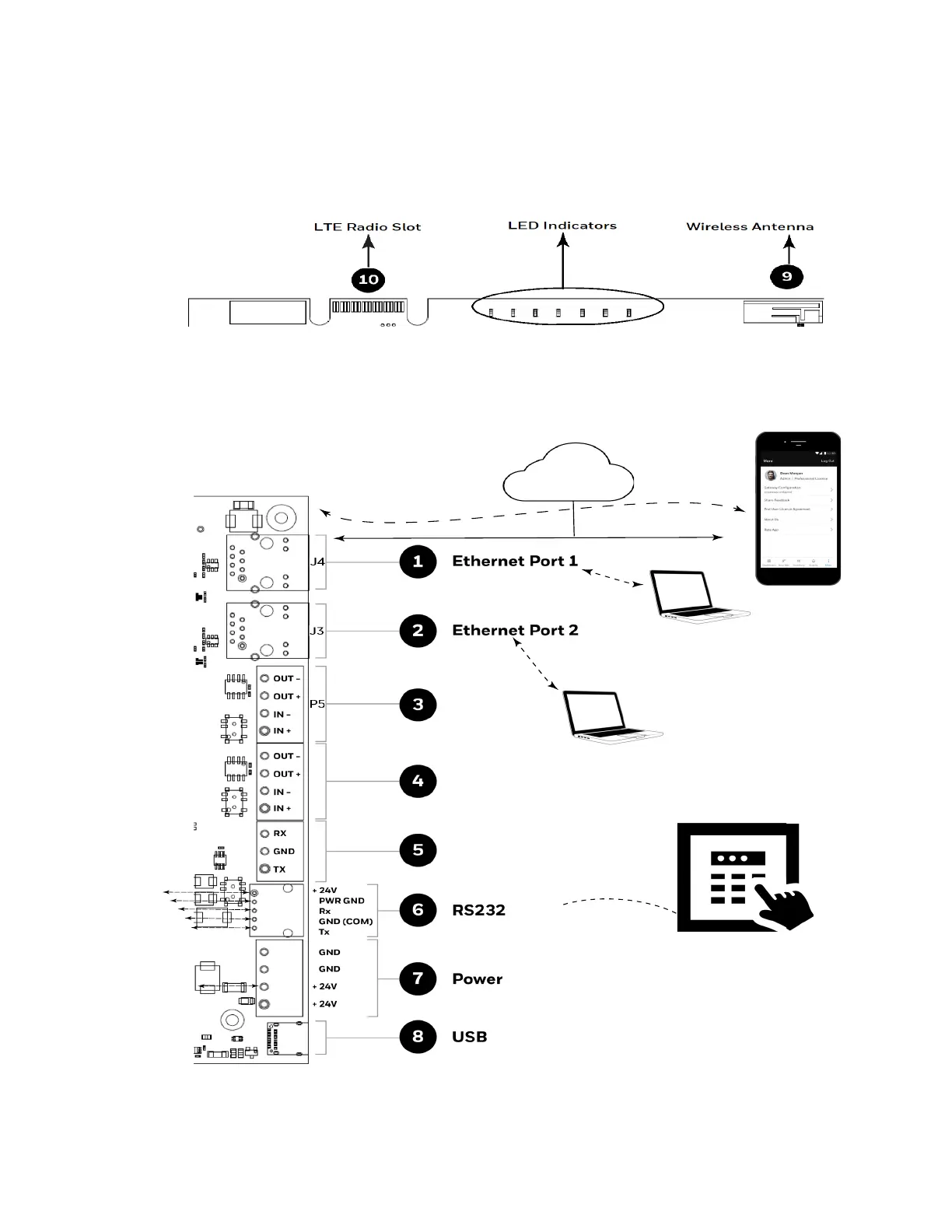

Figure C.1 illustrates the connection options at the top side of the gateway board.
Figure C.1: Gateway Connections - Top Side
Figure C.2
illustrates the gateway connection options at the bottom side of the gateway
board.
Figure C.2: Gateway Connection Options - Bottom Side
Fire Alarm Panel
CLSS
Cloud
Modbus
Client
Configuration
Computer
Mobile
Connection
/NUP
Ethernet
Connection
WHITE COLOR
GREEN COLOR
RED COLOR
BLACK COLOR
BROWN COLOR
P7
P2
P4
J5
P1
Future Use
Future Use
Future Use
(Eth 1)
(
Eth 0)
To Next Page
