CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 92
System Architecture The BACnet Feature
8.5.2 NFN Network Architecture
NFN network connection — a NUP connection is made to an NCM or HS-NCM board on
the NFN network as the CLSS Gateway Figure 8.2, “Notifier System Example 1- A Single
NFN Network”.

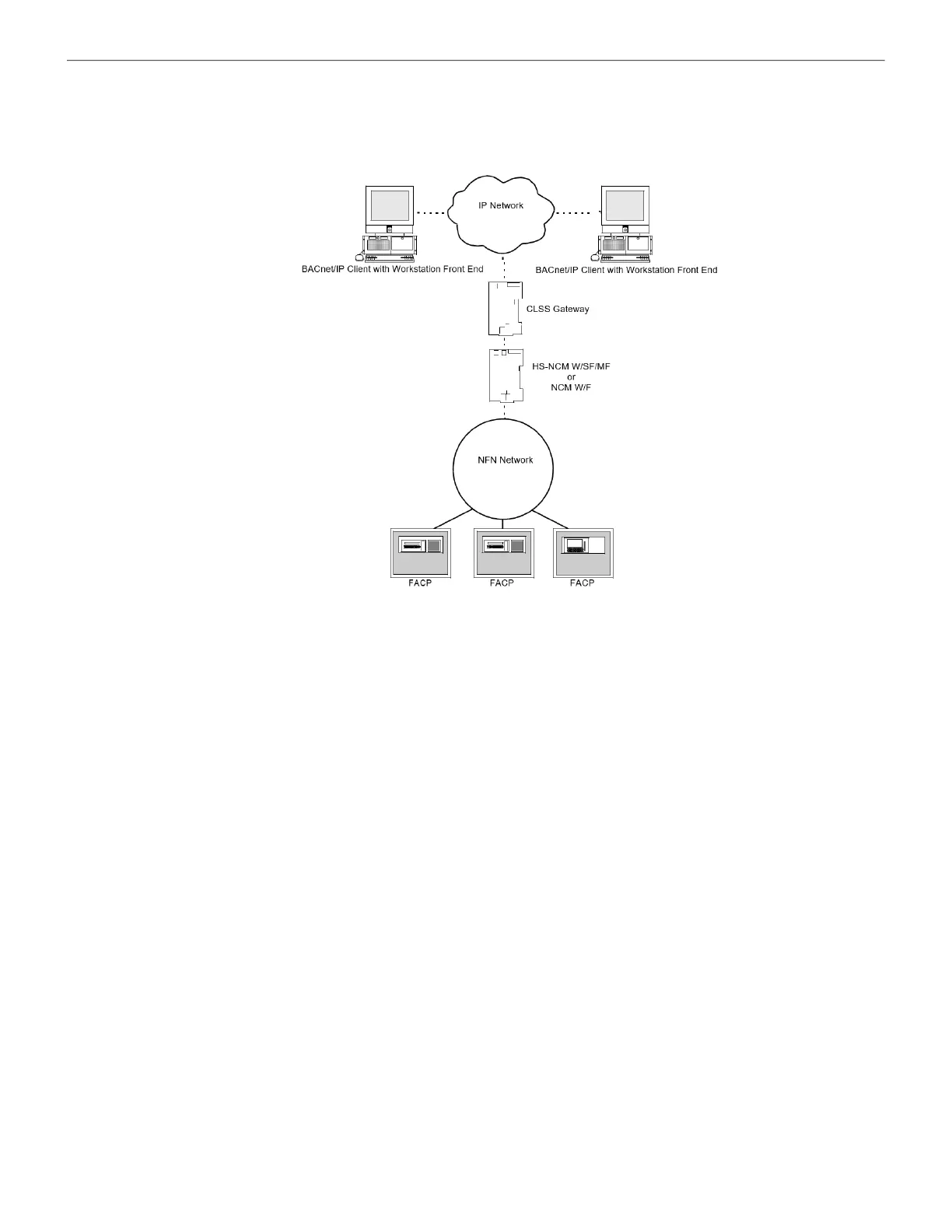

Figure 8.2: Notifier System Example 1- A Single NFN Network
To Next Page
