Honeywell HON-CGW-MBB User Manual

CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 137
NOTIFIER® UL Connecting to the Panels
C.10 NOTIFIER® UL
C.10.1 Connection Options
The gateway operates only with the NOTIFIER fire alarm control panels as listed in the
table below:
Table C.8: NOTIFIER UL Panel Connection Options
C.10.2 To Use a NUP Connection
Some NOTIFIER panel variants use a NUP connection with the CLSS Gateway.
1. On the Gateway Side
Connect the NUP cable to the NUP port of the gateway board.
The NUP port is labeled as 6 in the Figure C.23.
2. On the Panel Side
In the NUP socket of the panel:
• Stand-alone Panel: Connect the NUP cable.

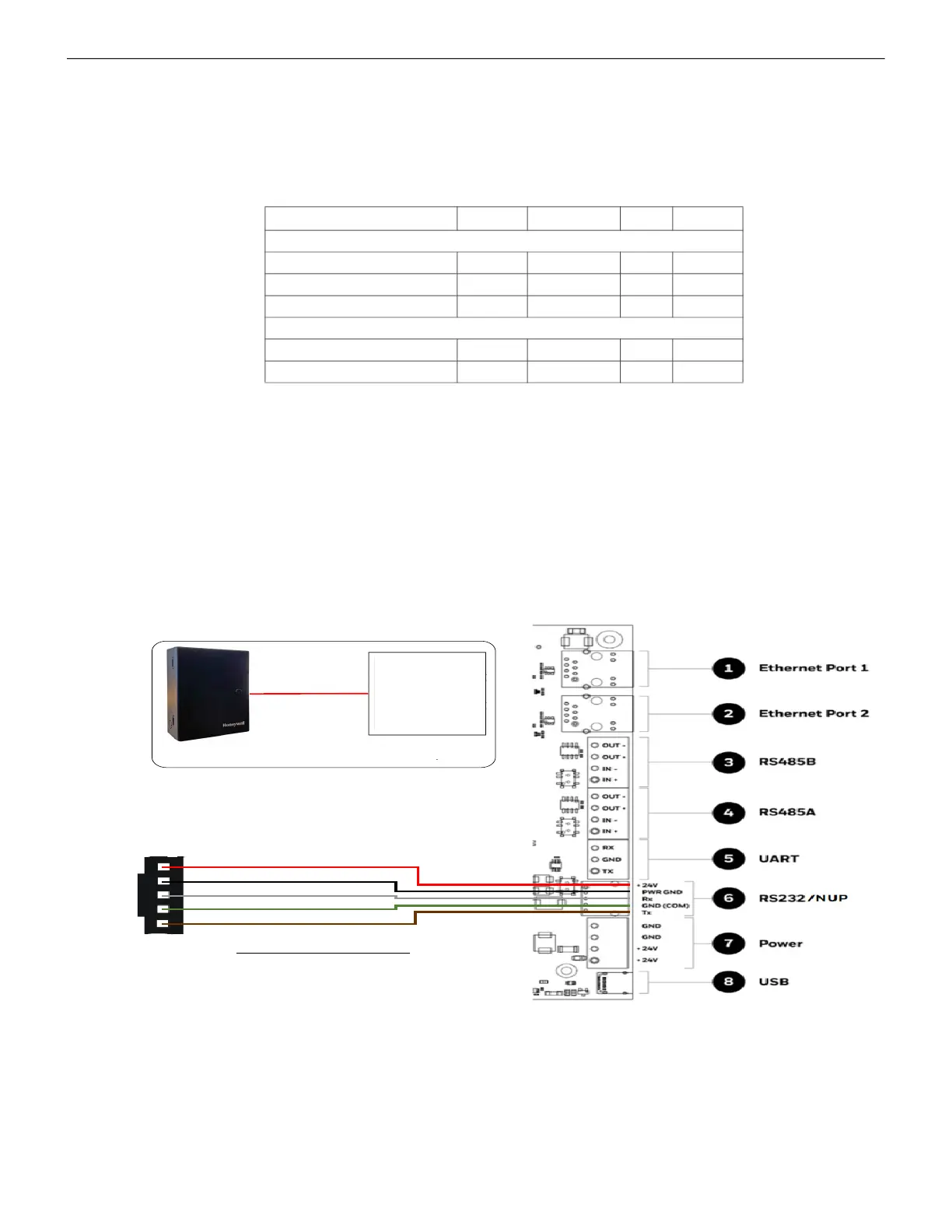

Figure C.23: Stand-alone Panel: NUP Connection
Fire Alarm Panel Models RS-485 UART/TTL NUP USB
ONYX Panels
NFS-320 No No Yes No
NFS2-640 No No Yes No
NFS2-3030 No No Yes No
INSPIRE Panels
N16E No No Yes No
N16X No No Yes No
Fire Panel NUP
ConnecƟon
J1
White
Green
Brown
Black
Red
Required Equipment:
• NUP-to-NUP cable (75577A)
HON-CGW-MBB
NoƟĮer Onyx Panel
NUP
Panel
