CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 136
Morley-IAS Panels Connecting to the Panels
For the External Power Supply:
On the Gateway Side
1. Connect to the 24V DC external power supply or to the panel’s 24V DC power port.
2. Ensure that the S7 switch next to the RS-232 port is switched towards NUP_OUT.

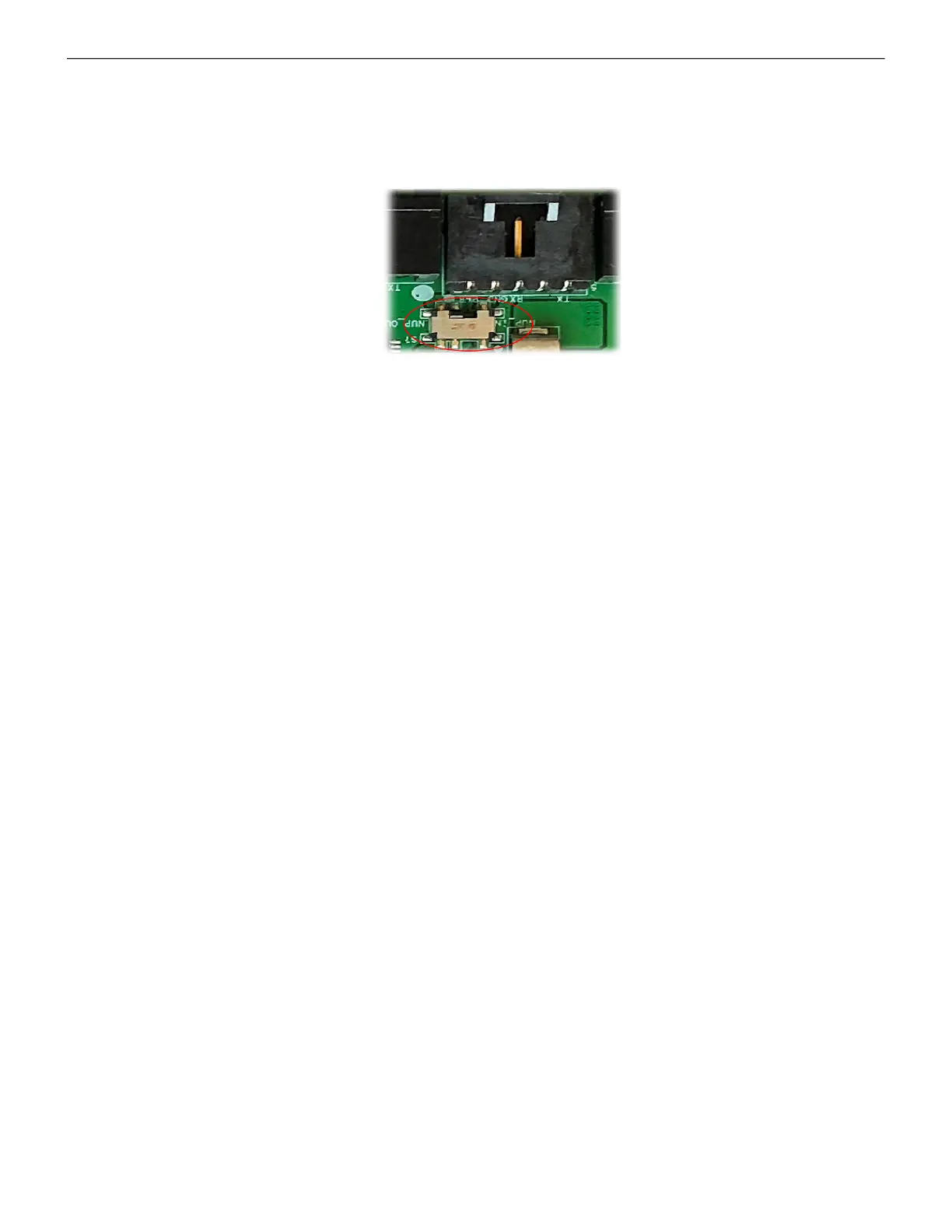

Figure C.22: The S7 Switch
On the Panel Side
In the SK4 or SK5 terminal,
Connect the RS-232 cable for the non-resettable internal power.
To Next Page
