Verifying the Gateway Connections Configurations
5.2 Verifying the Gateway Connections

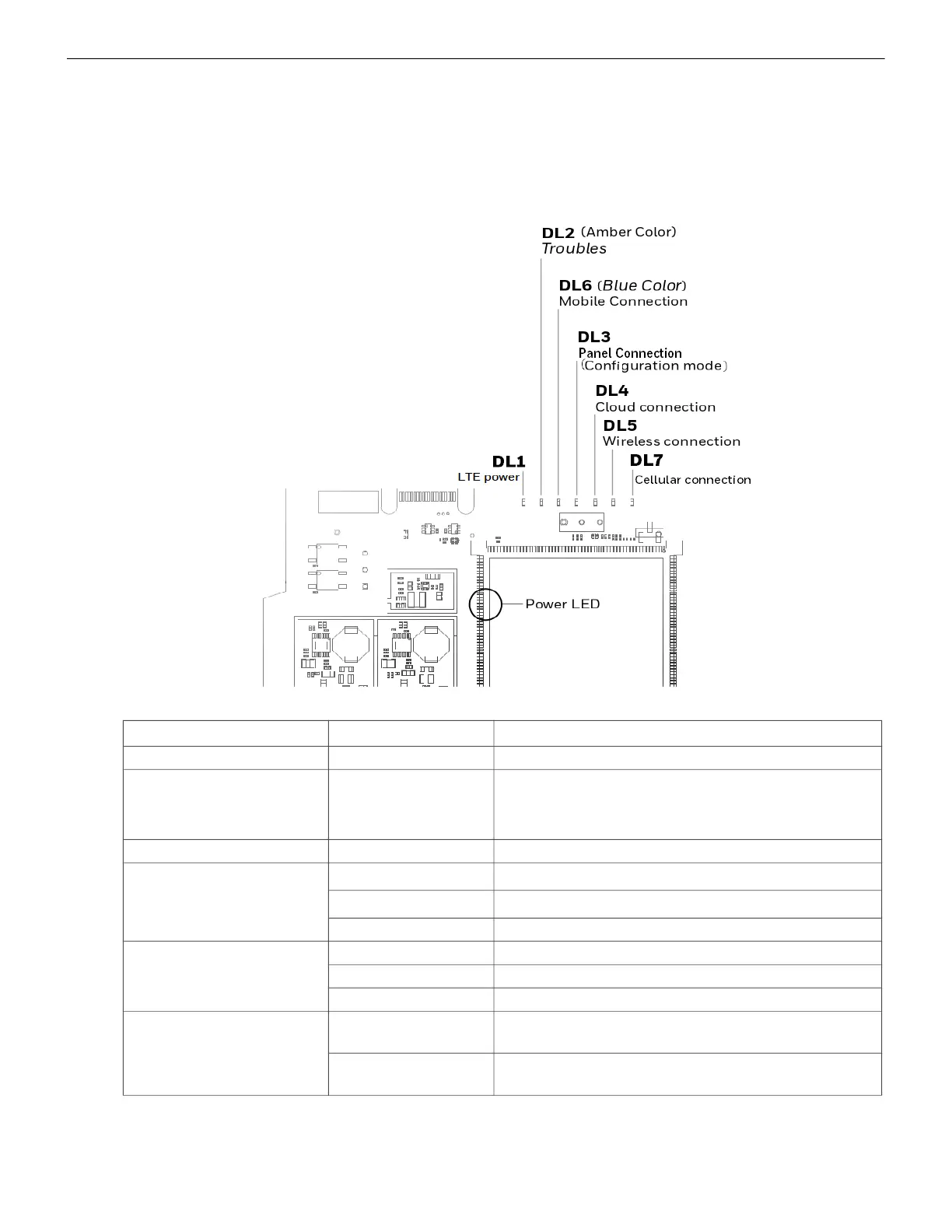

While configuring the gateway, confirm that the LEDs indicate successful connections as
shown in Figure 5.3.
If the LED is indicating differently, refer to Table 2.2 to know the operational status. If
necessary, refer to the 6.2, "Troubleshooting" section to fix the problem or contact
Honeywell Technical Support.
LED Indicator State Meaning
Power-Indicating LED ON Successful power connection
DL1 ON
OFF
ON - The cellular module is installed and
receiving power.
OFF - The cellular module is not installed.
DL2 OFF There are no issues
DL6
Flashing fast
a
a FLASHING FAST = 0.2 second ON and 0.2 second OFF
Successful mobile connection
Flashing slow
b
b FLASHING SLOW = 1 second ON and 1 second OFF
Ready for connection
OFF Disabled mobile connection
DL3 ON The gateway is in the configuration mode
Flashing fast The gateway is getting the inventory data
Flashing slow The gateway is communicating with the panel
DL4 Flashing slow The gateway is communicating with CLSS Site
Manager
Flashing fast The gateway has the Internet connectivity, but not
the CLSS Site Manager connectivity
