CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 132
Gent Panels Connecting to the Panels
C.8.3 Vigilon Series Panels
For a fixed gateway, we recommend using a UART/TTL connection. If it is not available,
use a RS-232 connection.
To Use a UART/TTL Connection
1. On the Gateway Side
Connect the male UART/TTL cable to the Rx (Red), Gnd (Silver), and Tx (White) UART/TTL
terminals of the gateway.
The UART/TTL port is labeled as 5 in Figure C.2.
2. On the Panel Side
1. Within the panel, find the backplane PCB board (see Figure C.19).
2. Connect the 3.5mm phono socket to the P11 connector on the panel’s PCB.

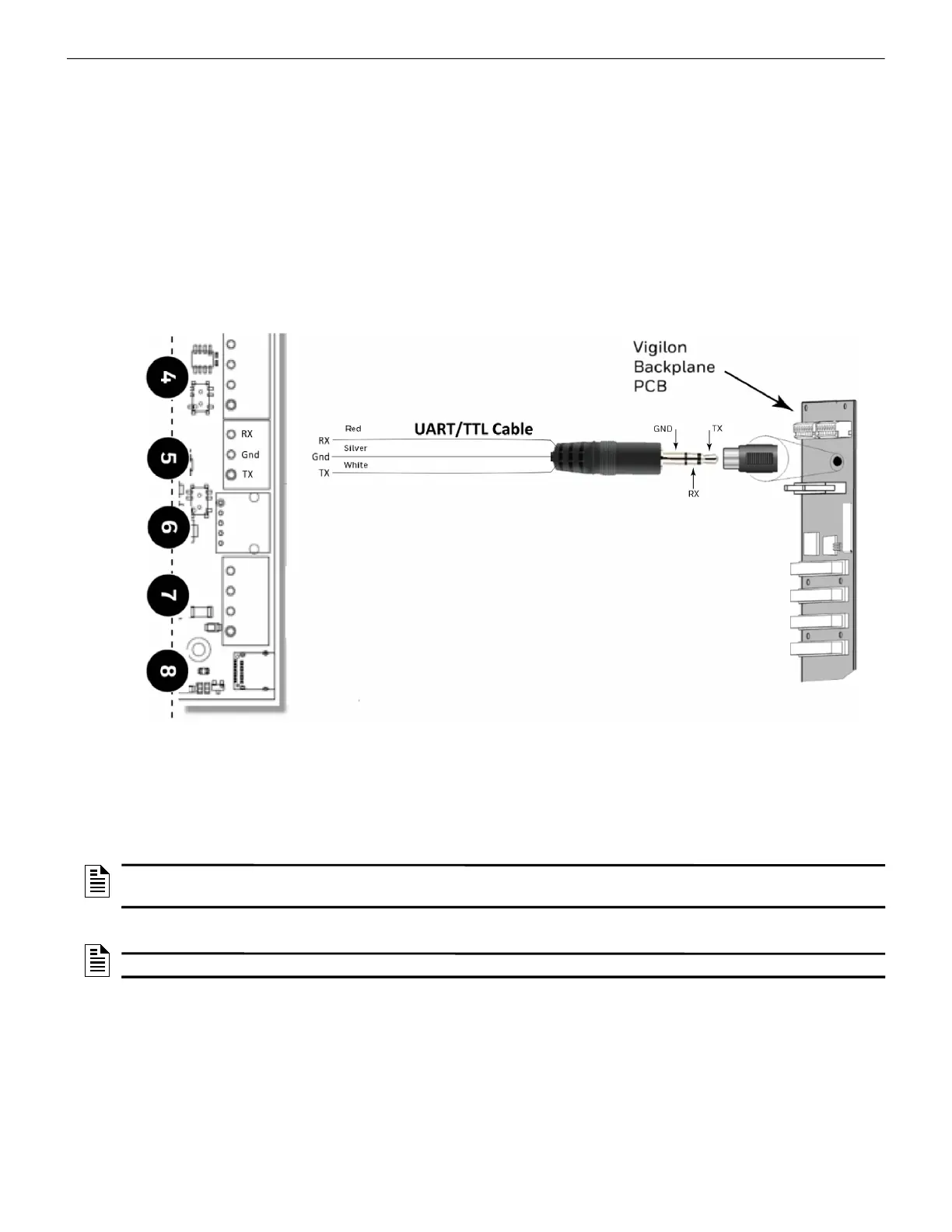

Figure C.19: Vigilon Panels: UART/TTL Connection
3. Power Connection
On the Gateway Side
Connect the power cable to a 24V DC external power source.
To Use an RS-232 Port via an I/O Card
Using an add-on I/O card (VIG-IOC-DOM), certain Vigilon panel variants can
communicate with the CLSS Gateway.
• The I/O card has a rotary switch, which should point to 5.
• The baud rate of the I/O card should be 19200.
NOTE: The external power supply must be dedicated and not shared with any other
devices.
NOTE: The panel’s power supply to the gateway must be within +24V DC power.
