Gateway Board Connection Options Installation
4.3 Gateway Board Connection Options
The gateway board can be connected with a cellular module, wireless aerials, the CLSS
Site Manager, a configuration computer, a panel, a mobile device, and an external power
supply.

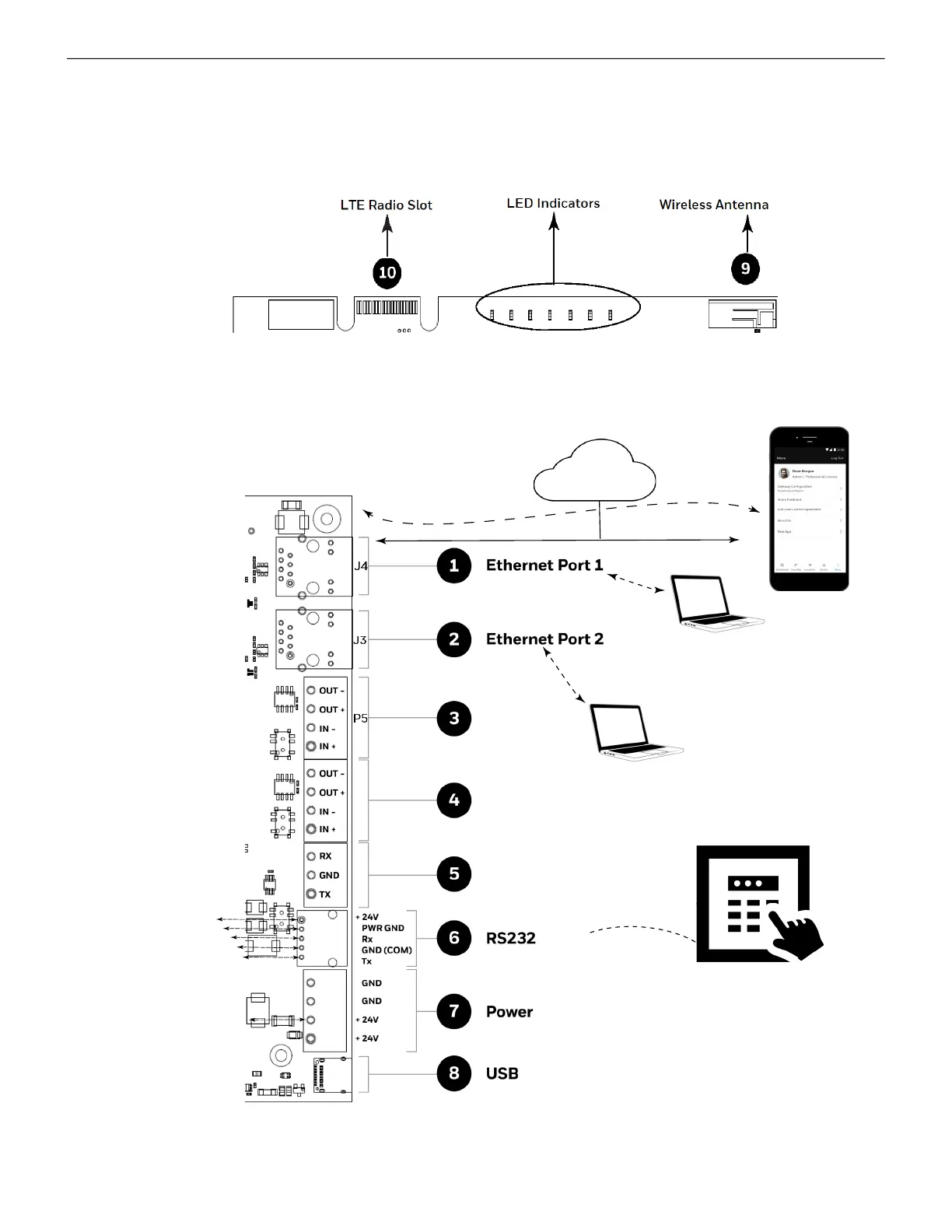

Figure 4.3 illustrates the connection options at the top side of the gateway board.
Figure 4.3: Gateway Connections - Top Side
Figure 4.4 illustrates the gateway connection options at the bottom side of the gateway
board.
Figure 4.4: Gateway Connection Options - Bottom Side
Fire Alarm Panel
CLSS
Cloud
Modbus
Client
Configuration
Computer
Mobile
Connection
/NUP
Ethernet
Connection
WHITE COLOR
GREEN COLOR
RED COLOR
BLACK COLOR
BROWN COLOR
P7
P2
P4
J5
P1
Future Use
Future Use
Future Use
(Eth 1)
(
Eth 0)
