CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 138
NOTIFIER® UL Connecting to the Panels
• Standard-speed Network of Panels: Add an additional standard NCM card to the
panel for the gateway connection.

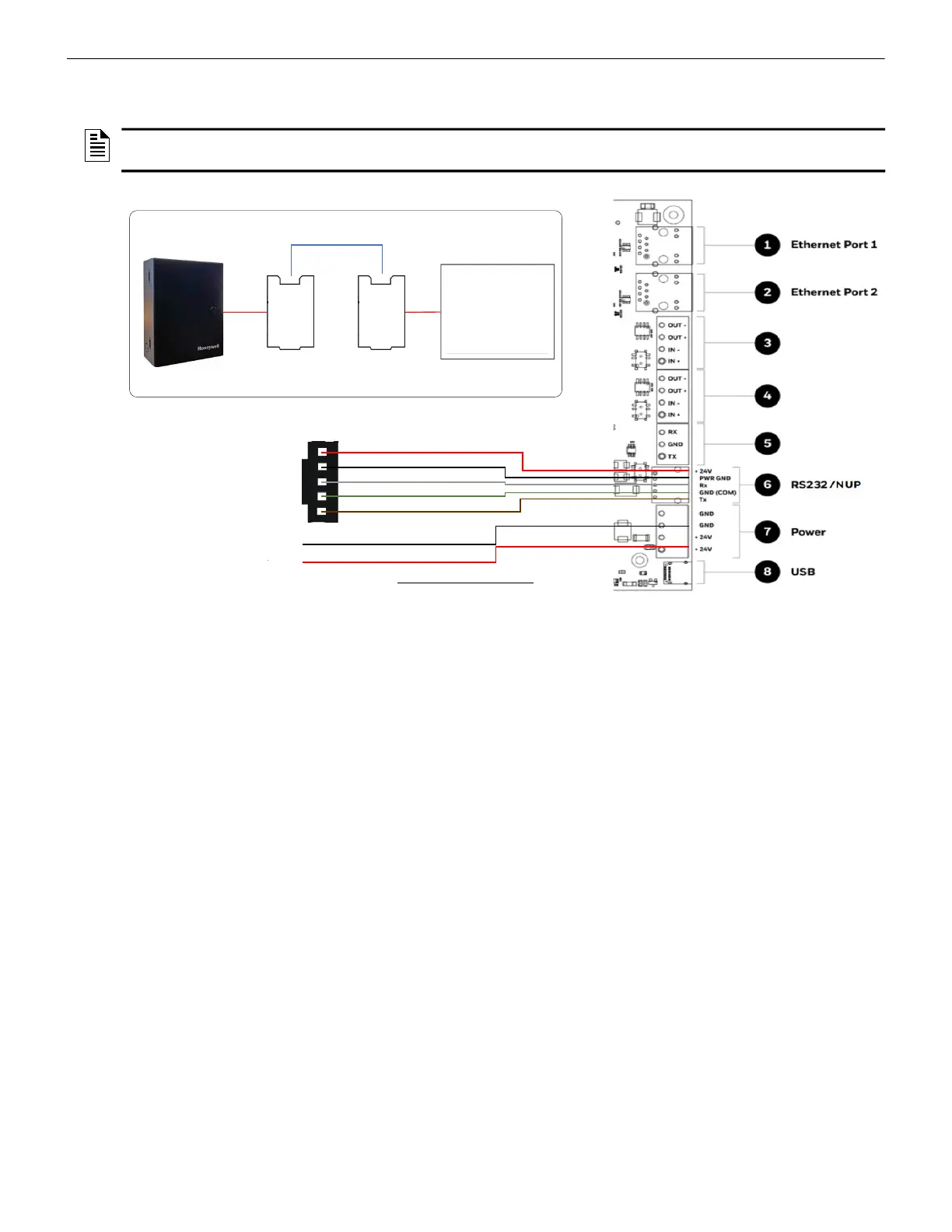

Figure C.24: Standard-speed Network Panel: NUP Connection
• High-speed Network of Panels: Connect the NUP cable into an open NUP port of
the HS-NCM card on the panel. If no NUP port is available, an additional HS-NCM
card must be added and connected.
NOTE: For the standard-speed network, each device should have its NCM card on the
panel with an available port.
Standard NCM NUP
ConnecƟon J1
White
Green
Brown
Black
Red
Required Equipment:
• NUP-to-NUP cable
• Standard NCM card
-ve
+ve
24 VDC from panel
or
A dedicated power supply
HON-CGW-MBB
NoƟĮer Onyx Panel
NCM NCM
NUP
NUP
Network Media
(Wire/Fiber)
Panel
-
+
To Next Page
