CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 139
NOTIFIER® UL Connecting to the Panels

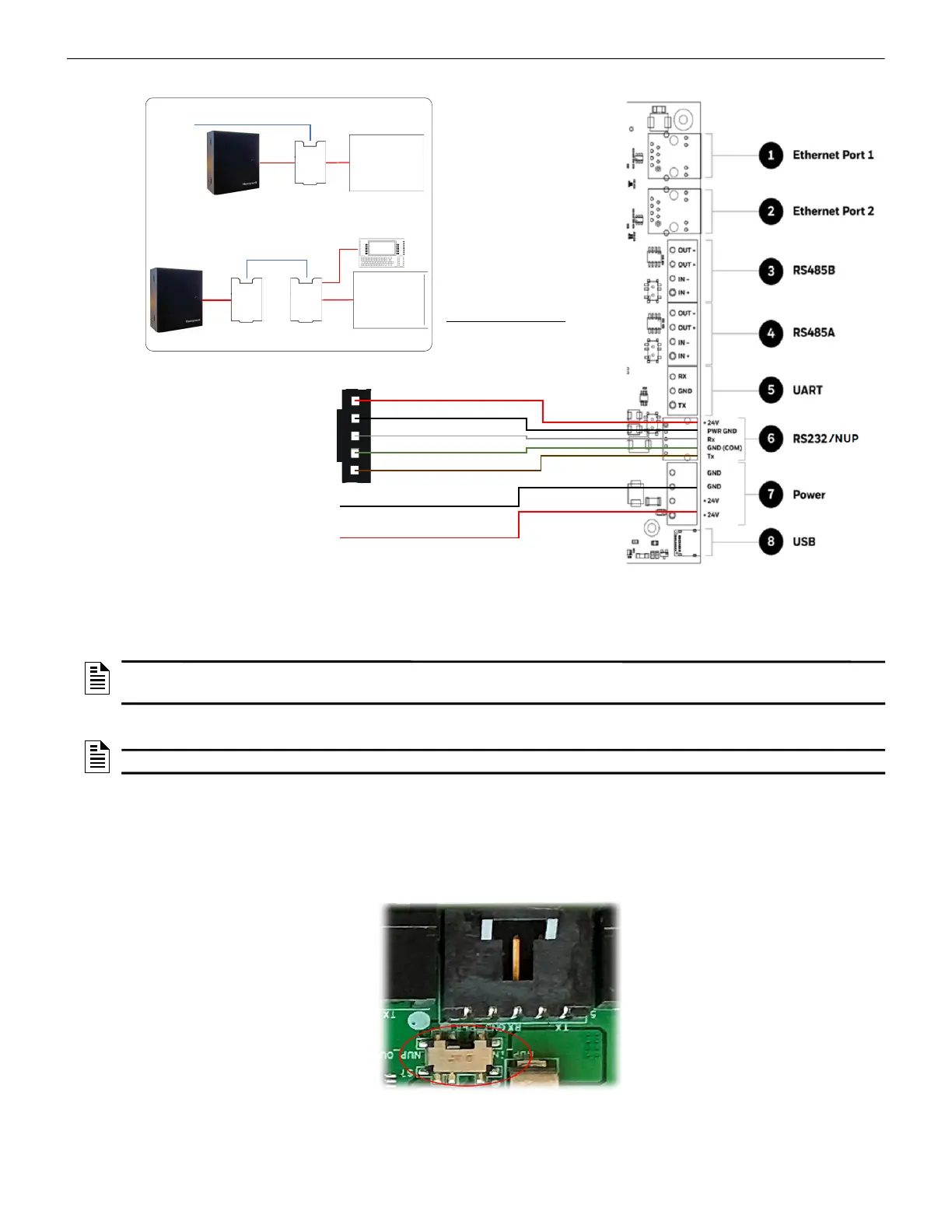

Figure C.25: High-speed Network Panel: NUP Connection
3. Power Connection
On the Gateway Side
• Stand-alone Panel:
• Ensure that the NUP cable is connected with the NUP port of the gateway.
• Find the S7 switch next to the NUP port, and switch it towards NUP_IN.
Figure C.26: The S7 Switch
High-Speed NCM
Open NUP ConnecƟon
*If there are no available
NUP ports an addiƟonal
High-Speed NCM card
is required to add the gateway
to the network
White
Green
Brown
Black
Red
-ve
+
ve
Required Equipment:
• NUP-to-NUP cable
• High-Speed NCM card
(if no available NUP port)
HON-CGW-MBB
NoƟĮer Onyx Panel
HS-NCM
NUP
NUP
NoƟĮer Onyx Panel
Network Media to next
Panel/node (Wire/Fiber)
OR
Network Media
(Wire/Fiber)
NUP
NUP
NUP
24 VDC from panel
or
A dedicated power supply
HON-CGW-MBB
HS-NCM HS-NCM
Panel
Panel
-
+
NOTE: The external power supply must be dedicated and not shared with any other
devices.
NOTE: The panel’s power supply to the gateway must be within +24V DC power.
To Next Page
