CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 111
ESSER Panels Connecting to the Panels
4. Power Connection
Using a power cable, the gateway can connect to the 24V DC power supply module of
the FlexES panel.
On the Gateway Side
• Connect the +ve wire to the +ve pin of the power supply port.
• Connect the -ve wire to the -ve pin of the power supply port.
On the Panel Side
• Connect the +ve wire to the +Ub pin of the power supply module.
• Connect the -ve wire to the Gnd pin of the power supply module.
•

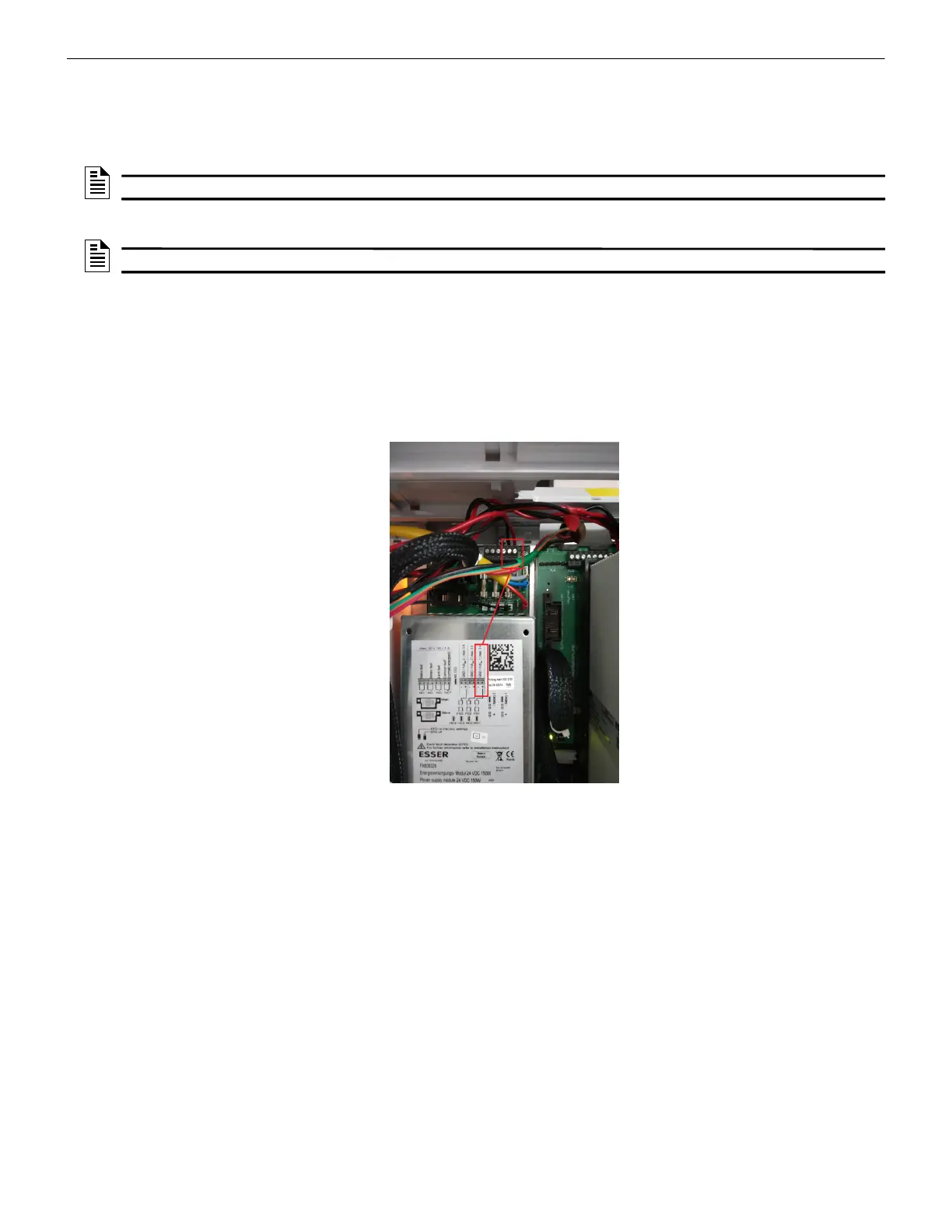

Figure C.6: FlexES Panel Power Connectors
NOTE: Use the details given on the power supply module of the panel.
NOTE: The panel’s power supply to the gateway must be within +24V DC power.
