CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 114

ESSER Panels Connecting to the Panels

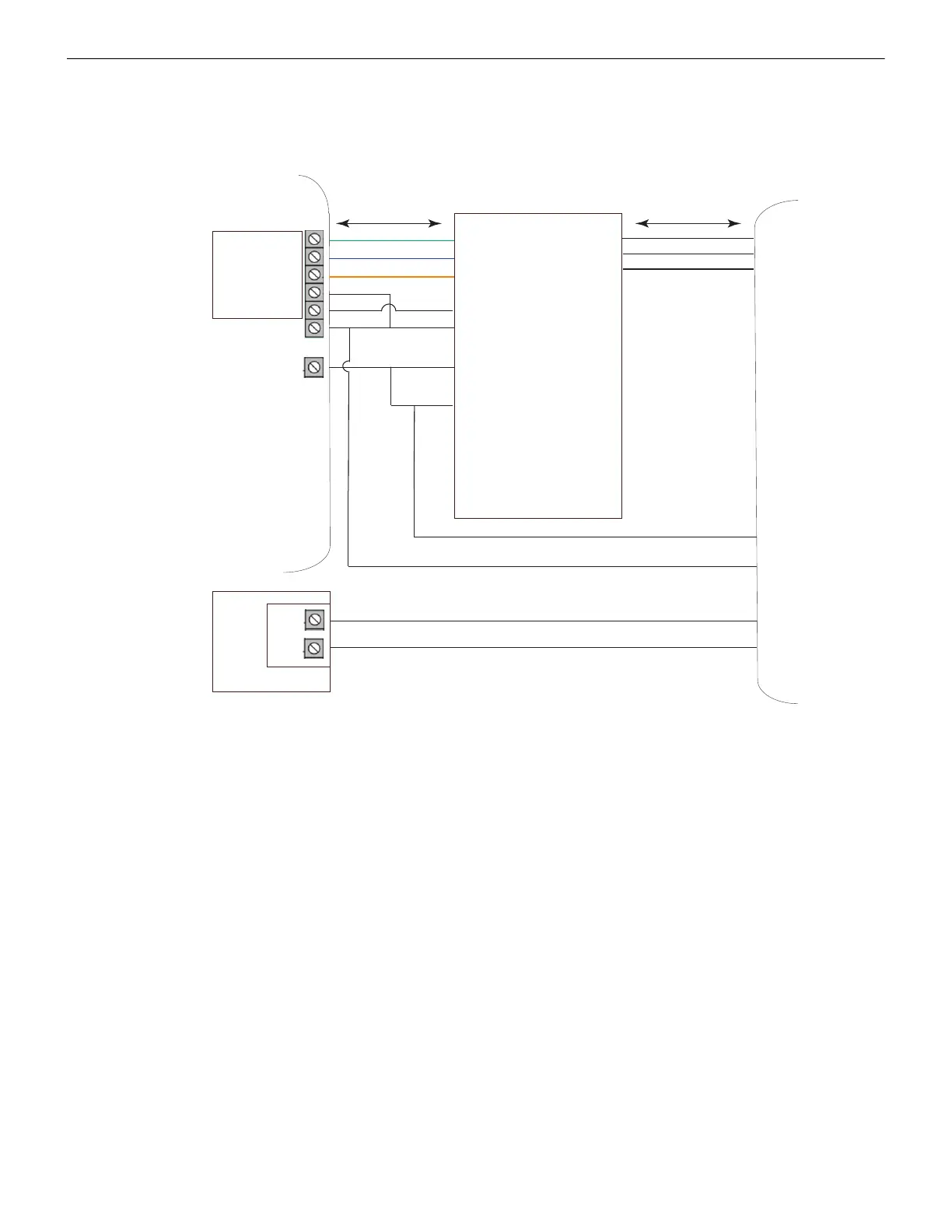

• Connecting to Panel’s TTY Port

Using an RS-232 cable, you can connect to the RS-232 port on the panel's serial

interface.

TxD + B

TxD - A

RxD + B

RxD - A

GND

+UB

VCC +

Rx +

GND

24 V

GND

Rx -

Tx -

VCC -

Tx +

EARTHEARTH

RxD +

RxD -

485A_IN+*

485A_IN -*

Serial

Interface

Upto 1000 m

Upto 15 m

IQ8 Panel

88=ǭ67'SRZIVXIV

'077+EXI[E]

* The connection can also be to 485B_IN + and 485B_IN -.

SEI2
