CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 124

FireWarden Panels Connecting to the Panels

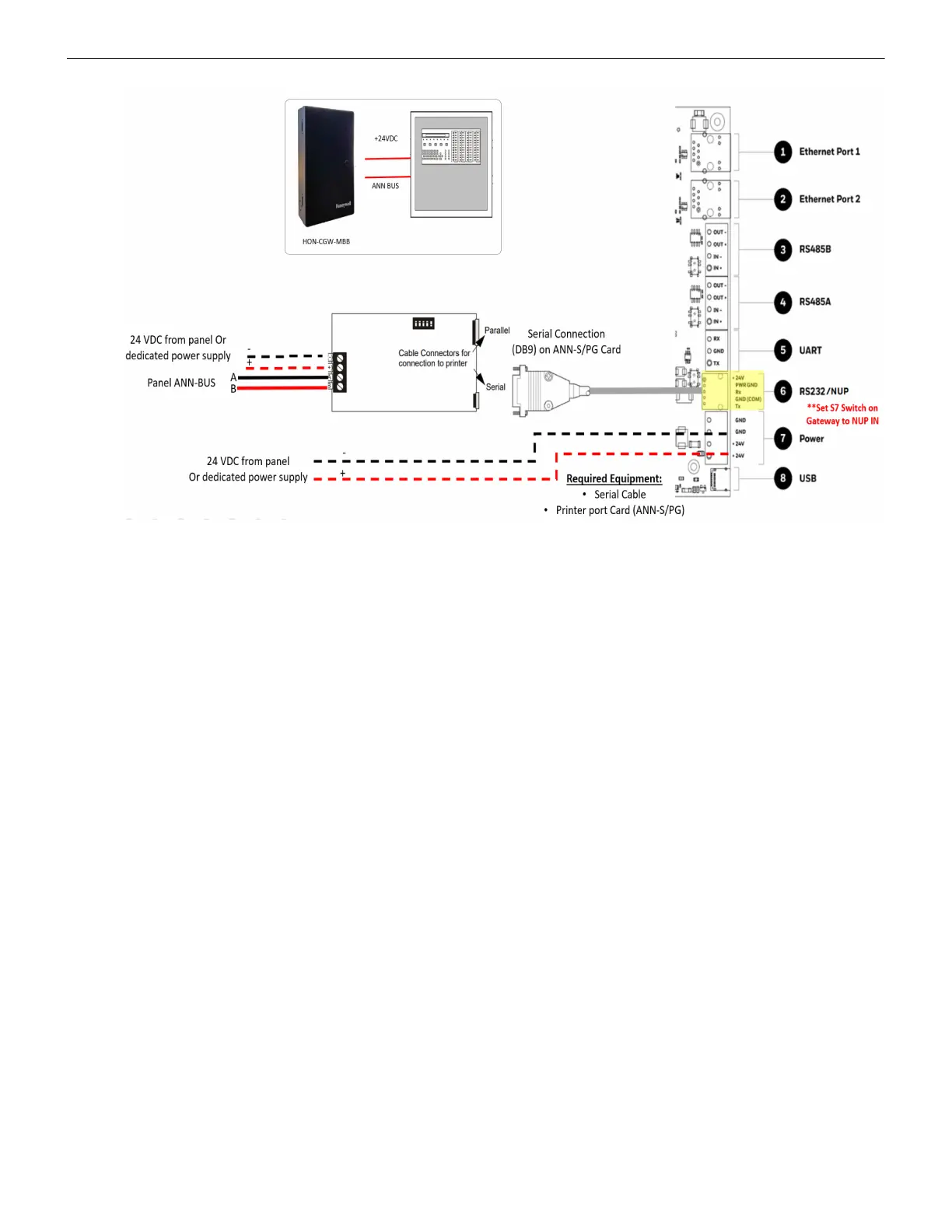

Figure C.13: FireWarden Panels: Printer Port Connections
