CLSS Gateway - Installation and Users’ Manual | P/N:LS10248-000HW-E | REV. F | FEB/11/2022 130
Gent Panels Connecting to the Panels

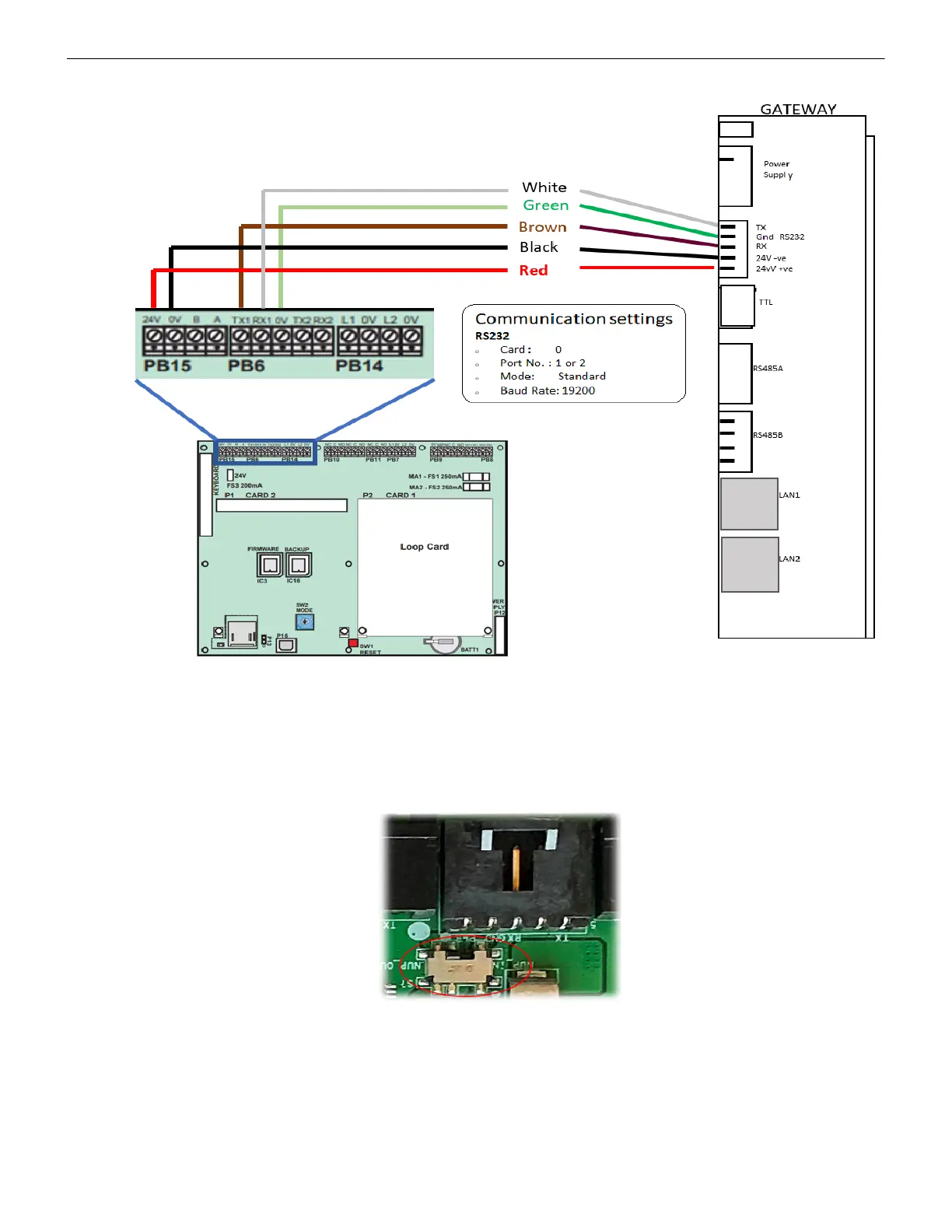

Figure C.16: COMPACT Panels: RS-232 Connections on the PB6 Terminal
3. Power Connection
On the Gateway Side
1. Ensure that the RS-232 cable is connected with the RS-232 port of the gateway.
2. Ensure that the S7 switch next to the RS-232 port is switched towards NUP_IN.
Figure C.17: The S7 Switch
On the Panel Side
At the PB15 terminal of the panel,
• Connect the Red wire (+ve) to the +24V pin.
• Connect the Black wire (-ve) to the 0V pin.
To Next Page
