94 MDR 710 – WWL Conveyor | Maintenance Manual | 29349817
November 16, 2020

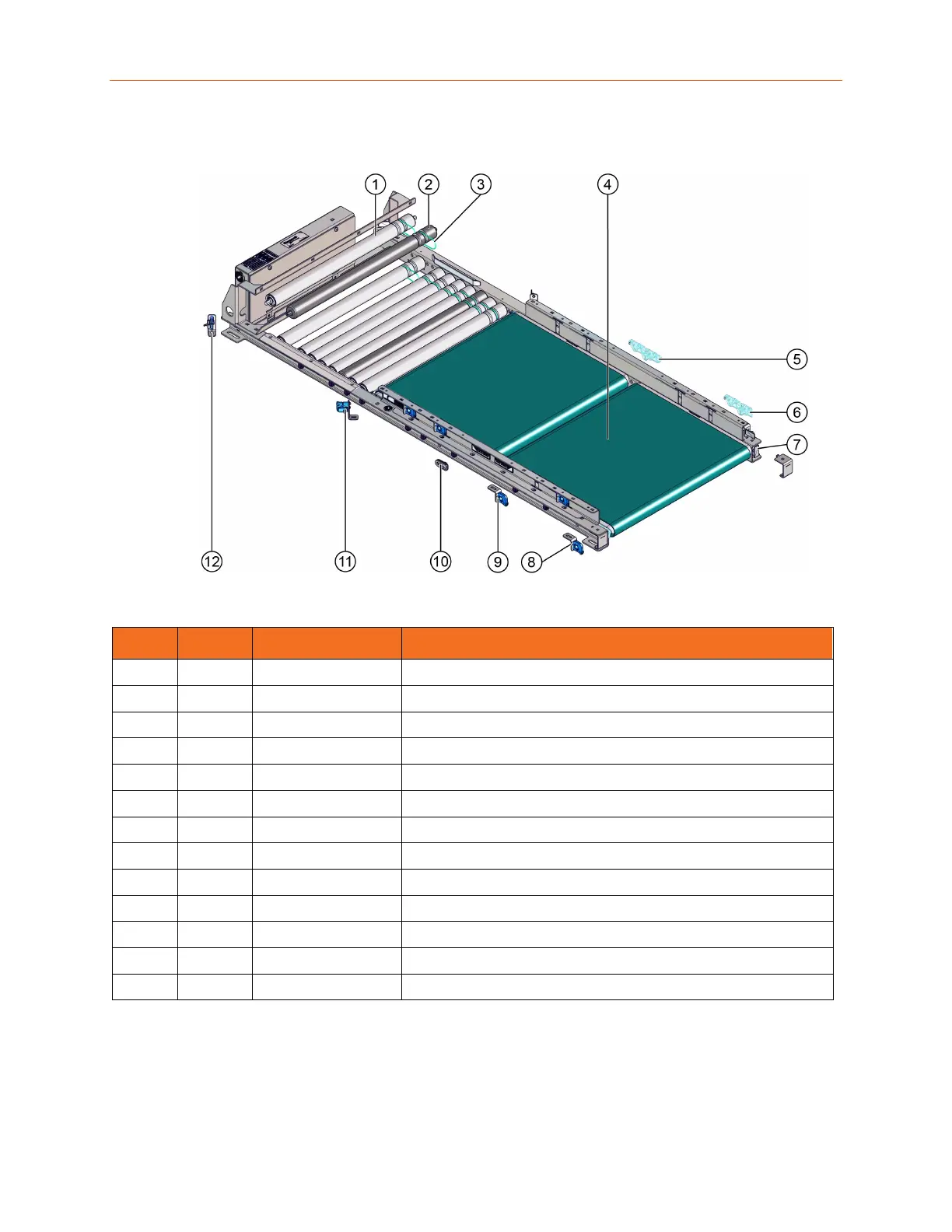

Figure 5-20 P&D Conveyor
Table 5-20 P&D Roller and Frames Spare Parts
SEQ QTY. PART NO Description
1 8 140066__ ROL G196AB __.__ “BF MDR DGR AX7 B2006
2 2 150_____ 710 MDR DGR MOTORIZED ROLLER __BF
3 8 29451500 O – BELT .188 x 7.750 LG 83A
4 * 544637__ MDR FWB CARTIDGE ASSY HORZ, 24”Z, BI – DIR, __BF
4 * 544638__ MDR FWB CARTIDGE ASSY HORZ, 30”Z, BI – DIR, __BF
5 * 54400100 ASRS P&D MDR 710 FWB MODIFED FRAME CLIP
6 * 544002__ ASRS P&D MDR 710 FWB MODIFIED END OF FRAME CLIP, _H
7 2 49091900 REFLECTOR MICROCUBE SICK
8 1 49623601 MDR 710 PHOTO EYE L SHAPED BRKT OVER ROLLER
9 4 49009221 MDR 710 PHOTO EYE L SHAPED BRKT OVER ROLLER
10 2 49105100 MDR POINTS UP 3 PLT AXLE LOCK PHANTOM ASSY
11 1 544016__ ASRS P&D MDR 710 PE/REF ASSY, __H
12 2 49009238 MDR 710 PHOTO EYE/REFL L VSHAPED BRKT - EXTENDED
* Quantity depends on the number of full-width belt zones.
