5.21 Belt Strip Decline PF Assy 24" Zone 4" Centers
2 ZN (493180)

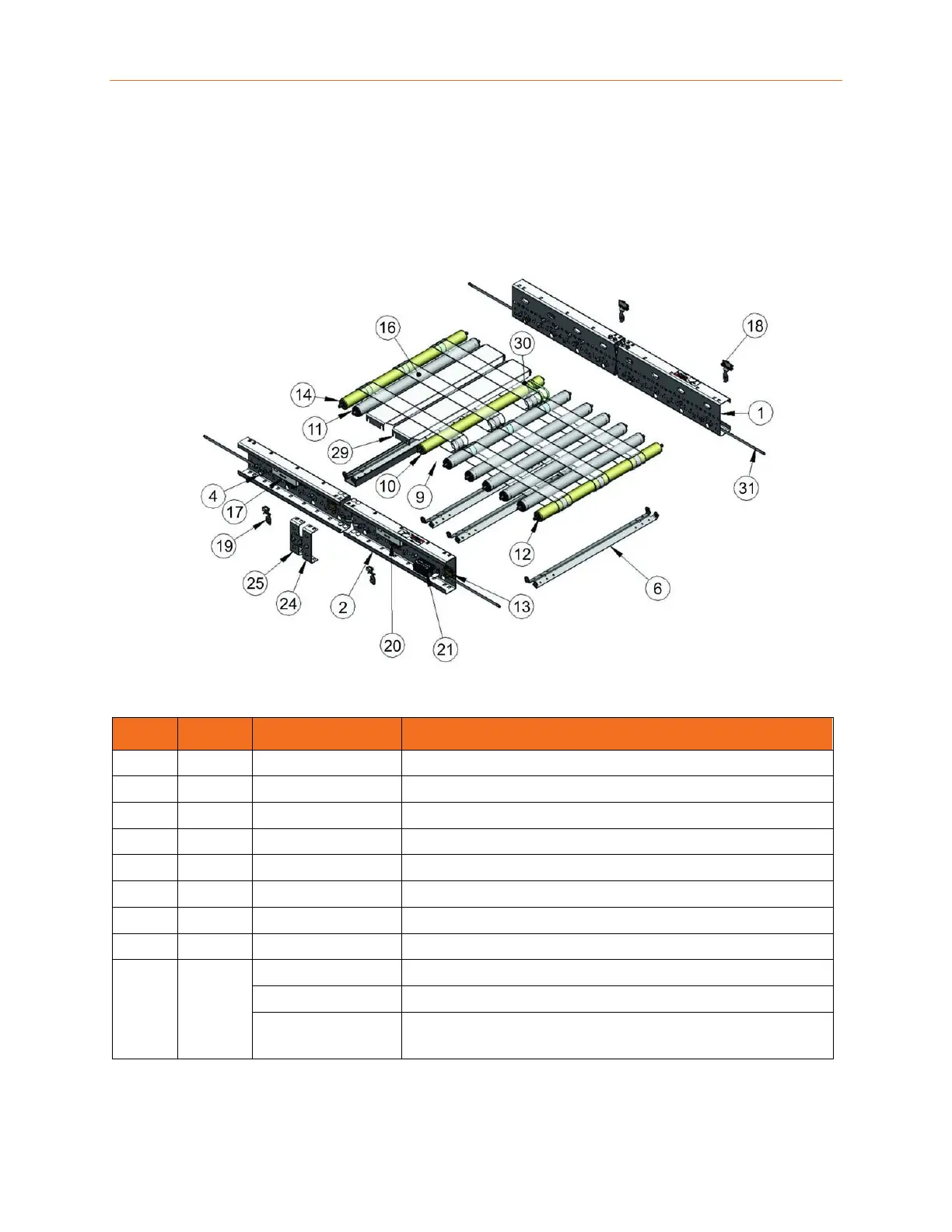

Figure 5-13 Belt Strip Decline PF Assy 24" Zone 4" Centers 2 ZN
Table 5-13 Belt Strip Decline PF Assy 24" Zone 4" Centers 2 ZN Spare Parts
SEQ QTY PART NO Description
1 2 49060501 MDR 710 CHAN PF/NO 24" LG 2-ZN SHN
2 2 49060502 MDR 710 CHAN PF/NO 24" LG 2-ZN OPP
3 4 220076 WASHER FLAT .313 SAE TYPE A
4 2 20054600 GROMMET 1"OD X .71"ID FOR .87 DIA HOLE
5 1 490388 710 MDR EXTRUDED WIREWAY X-OVER BF
6 4 490000 MDR SPDR STAMPED "BF
7 19 225021 NUT FLANGE .313-18
8 3 20057700 BOLT CAR TRUSS HD SPCL .313-18 X .625
9 1 140044__ ROL G196AB-__.00"BF DGR MDR AX7
140066__ ROL G196AB __.00"BF MDR DGR AX7 B2006
140159__ ROL G196AB-__W 2- GRVS EA END 1 WAY CLT- SS
# R__.019NP111H3EEEE
