Honeywell MDR 710 - 5.16 Belt Strip Incl Nose-Over Assy 24 Zone 4 Centers 2 ZN (493168)

MDR 710 – WWL Conveyor | Maintenance Manual | 29349817 67
November 16, 2020
Spare Parts
5.16 Belt Strip Incl Nose-Over Assy 24" Zone 4"
Centers 2 ZN (493168)

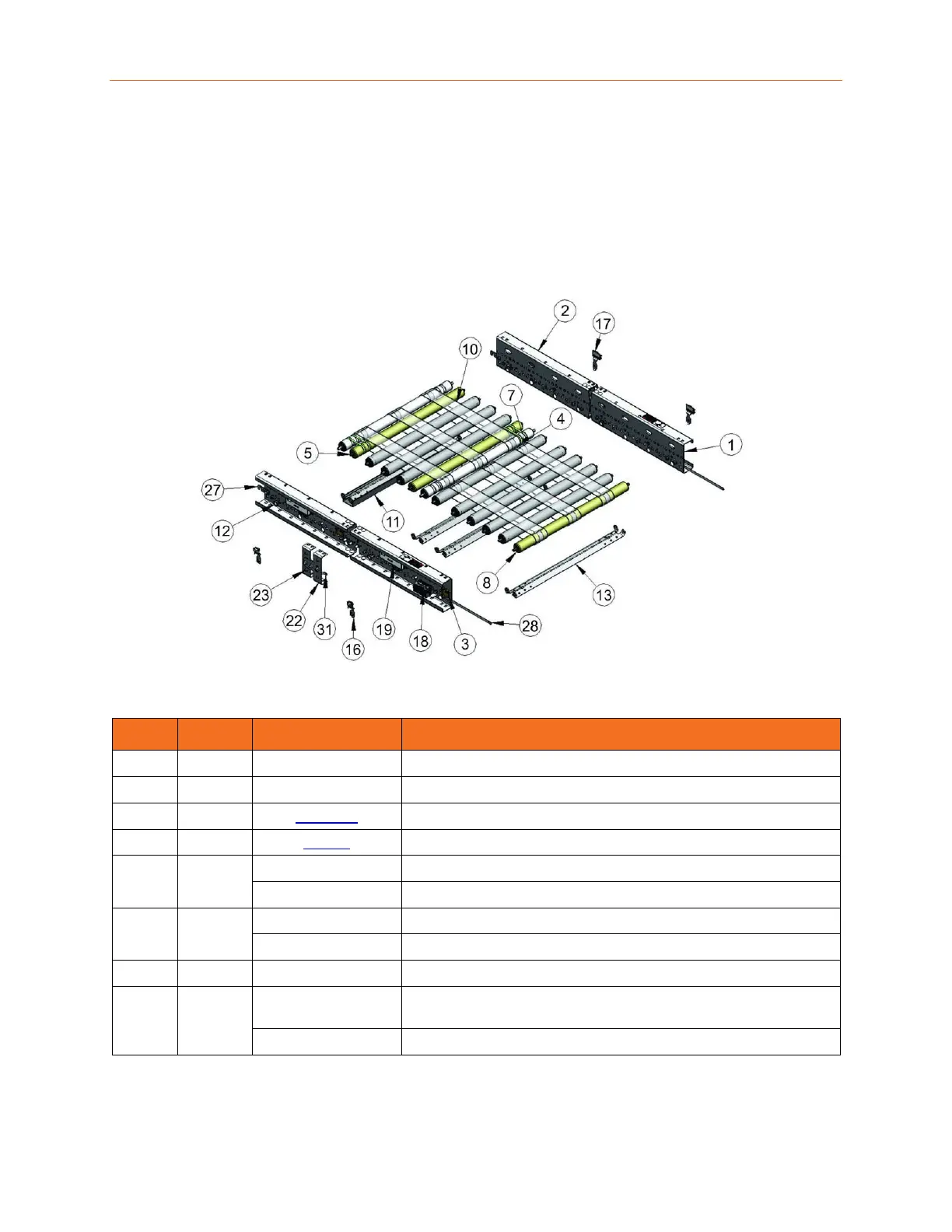

Figure 5-8 Belt Strip Incl Nose-Over Assy 24" Zone 4" Centers 2 ZN
Table 5-8 Belt Strip Incl Nose-Over Assy 24 In. ZN 4 In. Ctrs 2 ZN Spare Parts
SEQ QTY PART NO Description
1 2 49060501 MDR 710 CHAN PF/NO 24" LG 2-ZN SHN
2 2 49060502 MDR 710 CHAN PF/NO 24" LG 2-ZN OPP
3 3 49105100 WWL POINTS UP 3 PLT AXLE LOCK
4 4 305227 O-BELT .25 X 9.437 LG 83A
5 2 150001__ WWL ST 60-180FPM DGR STD TRQ RLLR __BF (15 IN CABLE)
150005__ WWL HT 60-180FPM DGR HI TRQ RLLR __BF (15 IN CABLE)
6 8 140002__ ROL G196AB __.00"BF AX7
140061__ ROL G196AB 10.00BF AX7 B2006
7 2 140159__ ROLL G196AB-__W FGR 2EAEND AX7 1WAY
8 1 150003__ WWL ST 60-180FPM NO GRV STD TRQ RLLR __BF (15 IN
CABLE)
150007__ WWL HT 60-180FPM NO GRV HI TRQ RLLR __BF (15 IN CABLE)
