Honeywell MDR 710 - 5.17 Belt Strip Incl Assy Roller Low 24 Zone 4 Centers 24 Lg (493134)

MDR 710 – WWL Conveyor | Maintenance Manual | 29349817 69
November 16, 2020
Spare Parts
5.17 Belt Strip Incl Assy Roller Low 24" Zone 4"
Centers 24" Lg (493134)

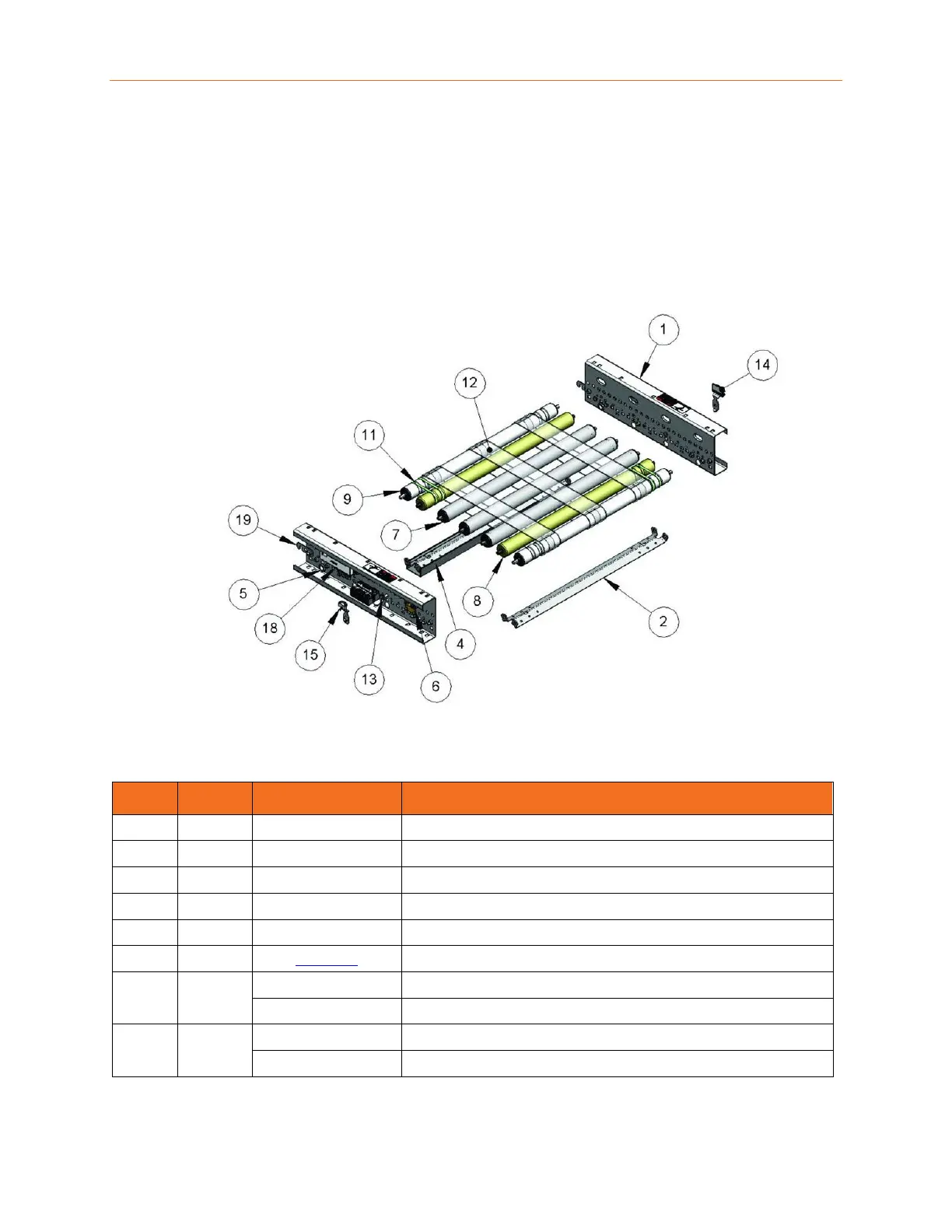

Figure 5-9 Belt Strip Incl Assy Roller Low 24" Zone 4" Centers 24" Lg
Table 5-9 Belt Strip Incl Assy Roller Low 24" Zone 4" Centers 24" Lg Spare Parts
SEQ QTY PART NO Description
1 2 490597024 MDR 710-STRT RLR LOW RAIL 24" LG
2 2 490000__ MDR SPDR STAMPED __"BF
3 8 225021 NUT FLANGE .313-18
4 1 490388__ 710 MDR EXTRUDED WIREWAY X-OVER __BF
5 2 20054600 GROMMET 1"OD X .71"ID FOR .87 DIA HOLE
6 2 49105100 WWL POINTS UP 3 PLT AXLE LOCK
7 3 140066__ ROL G196AB __.00"BF MDR DGR AX7 B2006
140061__ ROL G196AB __.00BF AX7 B2006
8 2 150001__ WWL ST 60-180FPM DGR STD TRQ RLLR __BF (15 IN CABLE)
150005__ WWL HT 60-180FPM DGR HI TRQ RLLR __BF (15 IN CABLE)
