Honeywell MDR 710 - 5.12 Straight Assy Roller High __” Zone _” Centers __” Lg (491945)

MDR 710 – WWL Conveyor | Maintenance Manual | 29349817 61
November 16, 2020
Spare Parts
SEQ QTY PART NO Description
8 1 4905____ 710 MDR CONTROL CARD PHANTOM ASSY
5.12 Straight Assy Roller High __” Zone _” Centers
__” Lg (491945)

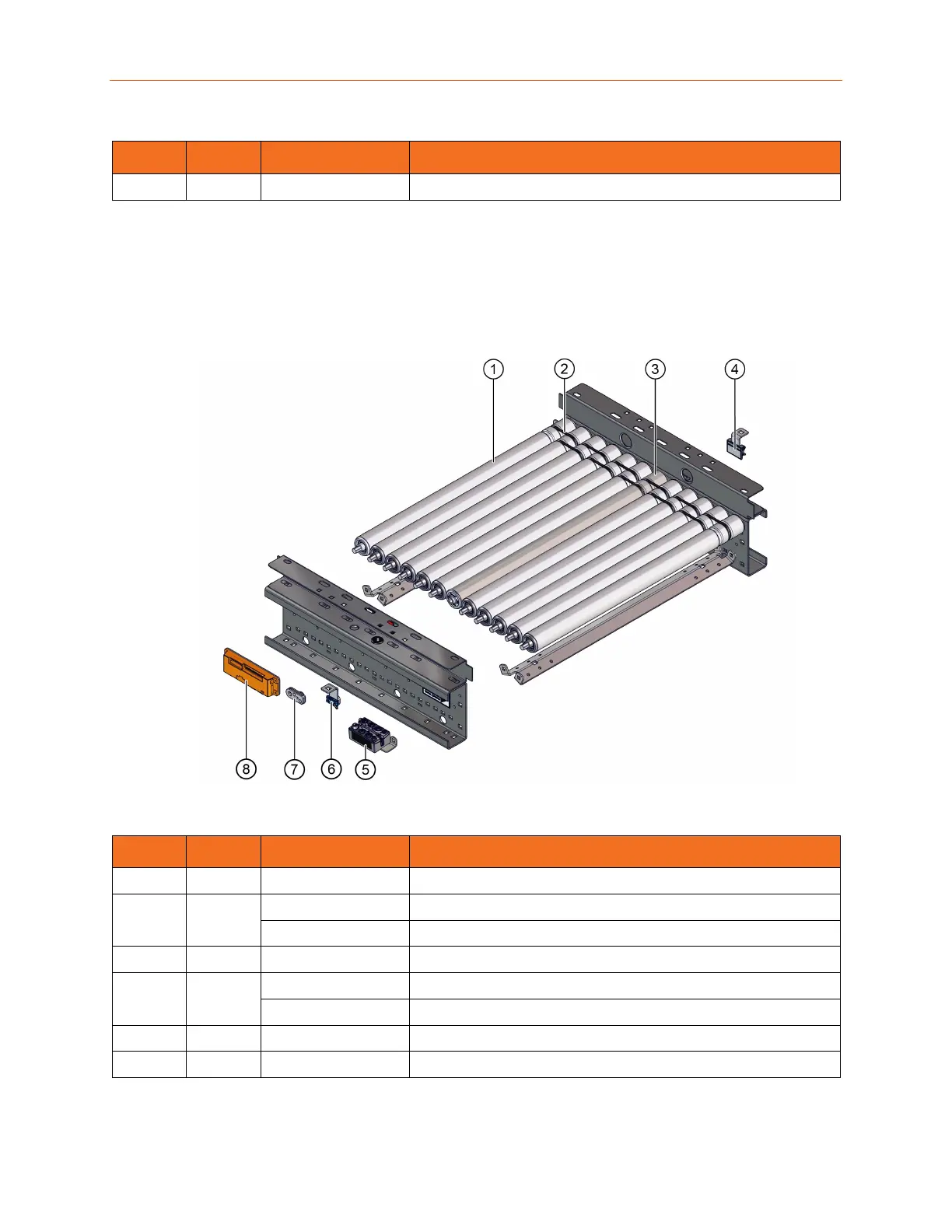

Figure 5-4 Straight Assy Roller High __” Zone _” Centers __” Lg
Table 5-4 Straight Assy Roller High __” Zone _” Centers __” Lg Spare Parts
SEQ QTY PART NO Description
1 11 140066__ ROL G196AB __"BF MDR DGR AX7 6002
2 11 29451500 O-BELT 3/16" DIA X 7.75" CUT LENGTH (2"CTR)
29888900 O-BELT 3/16" DIA X 7.75" CUT LENGTH (2"CTR)
3 1 150_____ ROL MOTORIZED 60-180FPM DGR __BF
4 1 49196103 MDR 710 REFLECTOR L BRKT ASSY
49196500 MDR 710 REFLECTOR L BRKT ASSY
5 1 49037600 710 MDR BnR MODULE W/BRKT
6 1 49196101 MDR 710 PHOTO EYE L BRKT ASSY
