5.27 Belt Strip Horz Scan Bed Assy Roller Low 30"
Zone 60" Lg (493280)

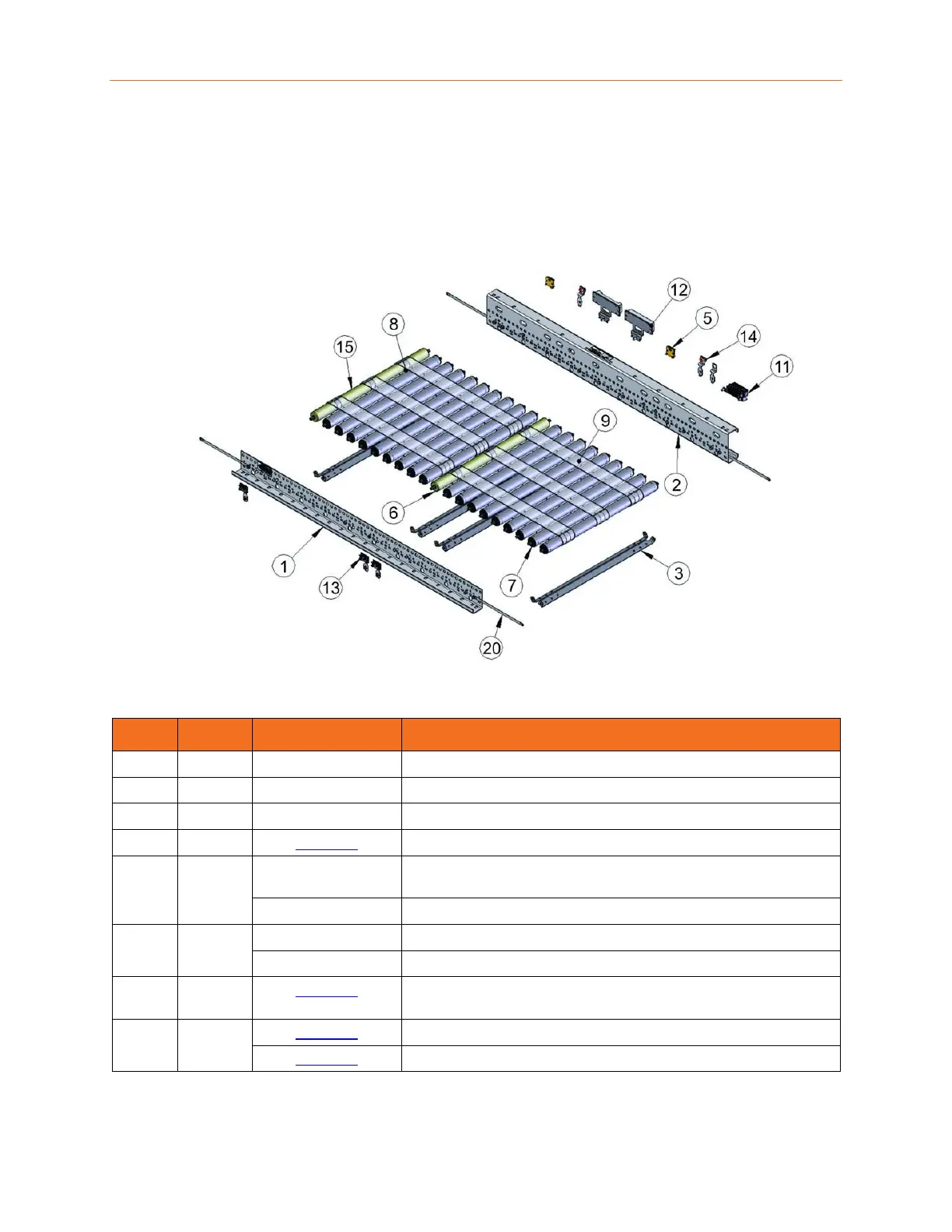

Figure 5-19 Belt Strip Horz Scan Bed Assy Roller Low 30" Zone 60" Lg
Table 5-19 Belt Strip Horz Scan Bed Assy Roller Low 30" Zone 60" Lg Spare Parts
SEQ QTY PART NO Description
1 1 490696060 MDR 710 SCAN BED CHAN LO RL 60" LG
2 1 490558060 MDR 710 SCAN BED CHAN HI RL 60" LG
3 4 490000__ MDR SPDR STAMPED __"BF
5 2 49105100 WWL POINTS UP 3 PLT AXLE LOCK
6 1 150003__ WWL ST 60-180FPM NO GRV STD TRQ RLLR __BF (15 IN
CABLE)
150007__ WWL HT 60-180FPM NO GRV HI TRQ RLLR __BF (15 IN CABLE)
7 18 140002__ ROL G196AB __.00"BF AX7
140061__ ROL G196AB __.00BF AX7 B2006
8 12 29406800 TIRE URETHANE TRACKING 1.9RLR 1.00"WD 1/16"THK 5.594LG
83A
9 6 49022324 710 MDR STRIP BELT 24" ZN
49022330 710 MDR STRIP BELT 30" ZN
