Honeywell MDR 710 - 5.15 Belt Strip Incl PF Assy 24 Zone 4 Centers 2 ZN (493172)

MDR 710 – WWL Conveyor | Maintenance Manual | 29349817 65
November 16, 2020
Spare Parts
SEQ QTY PART NO Description
8 1 49______ MDR 710 PE BRACKET PHANTOM ASSY
9 1 49037600 710 MDR BNR MODULE W/BRKT
10 2 4905____ 710 MDR CONTROL CARD PHANTOM ASSY
5.15 Belt Strip Incl PF Assy 24" Zone 4" Centers 2 ZN
(493172)

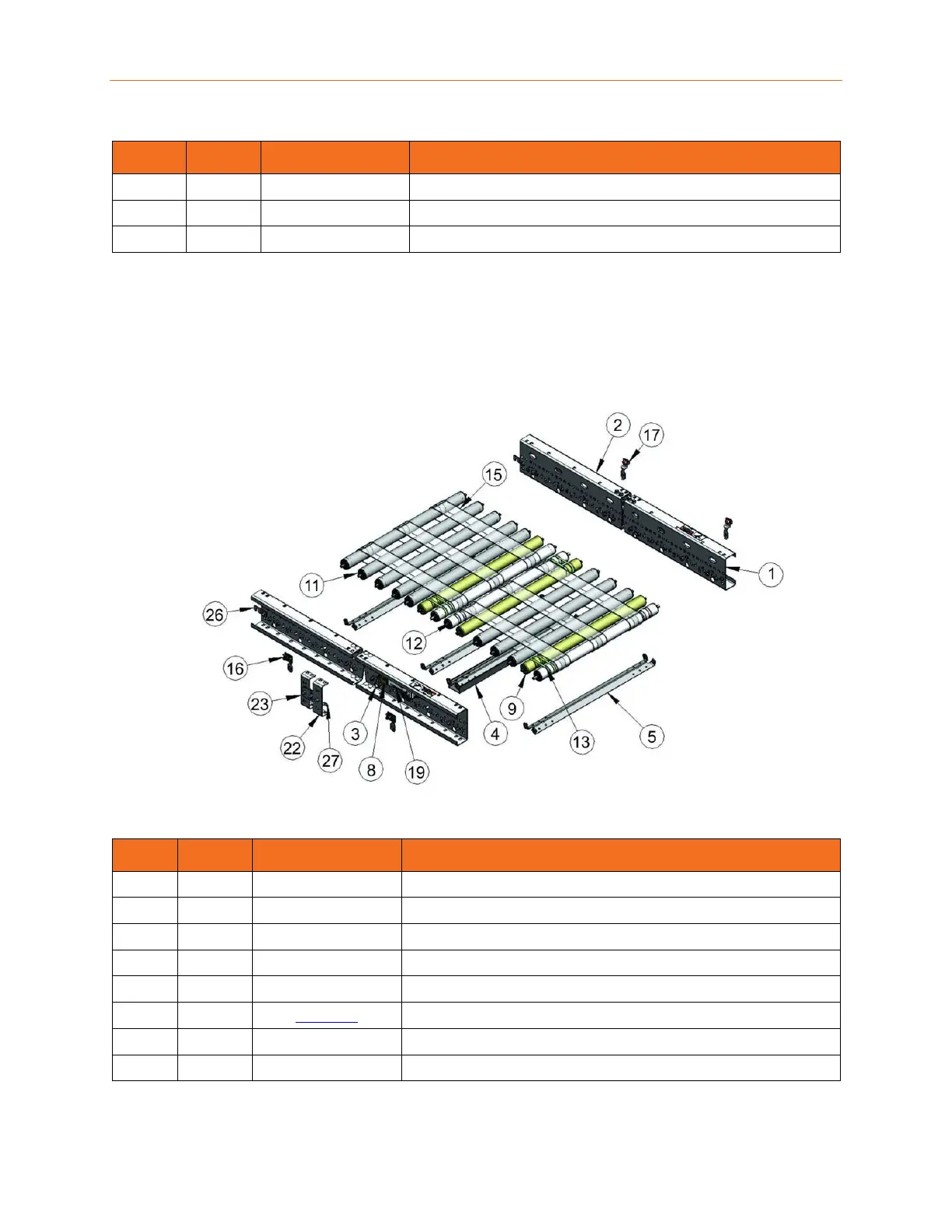

Figure 5-7 Belt Strip Incl PF Assy 24" Zone 4" Centers 2 ZN
Table 5-7 Belt Strip Incl PF Assy 24" Zone 4" Centers 2 ZN Spare Parts
SEQ QTY PART NO Description
1 2 49060501 MDR 710 CHAN PF/NO 24" LG 2-ZN SHN
2 2 49060502 MDR 710 CHAN PF/NO 24" LG 2-ZN OPP
3 2 20054600 GROMMET 1"OD X .71"ID FOR .87 DIA HOLE
4 1 490388__ 710 MDR EXTRUDED WIREWAY X-OVER BF
5 4 490000__ MDR SPDR STAMPED "BF
8 3 49105100 WWL POINTS UP 3 PLT AXLE LOCK
9 3 150001__ WWL ST 60-180FPM DGR STD TRQ RLLR __BF (15 IN CABLE)
150005__ WWL HT 60-180FPM DGR HI TRQ RLLR __BF (15 IN CABLE)
