Honeywell MDR 710 - 5.14 Belt Horizontal Dense Pattern Strip Belt Rollers Low (491211)

64 MDR 710 – WWL Conveyor | Maintenance Manual | 29349817
November 16, 2020
Spare Parts
5.14 Belt Horizontal Dense Pattern Strip Belt Rollers
Low (491211)

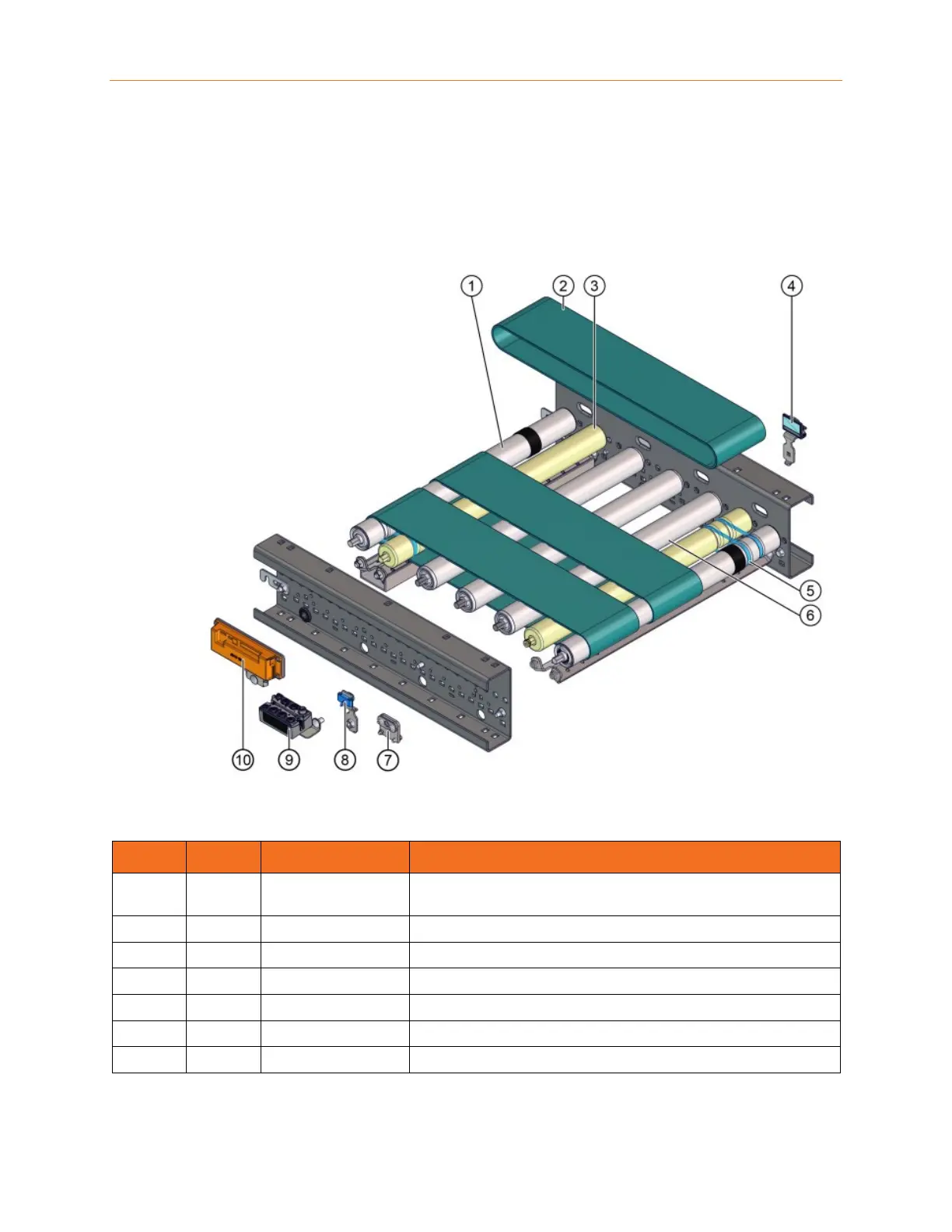

Figure 5-6 Belt Horizontal Dense Patter Strip Belt Rollers Low
Table 5-6 Belt Horizontal Dense Patter Strip Belt Rollers Low Spare Parts
SEQ QTY PART NO Description
1 2 491142__ ROL G196AB __.__"BF MDR DGR DENSE PATT BELT
W/TIRES
2 3 49048624 710 MDR STRIP BELT XX" ZN
3 2 150_____ 710 MDR DGR MOTORIZED ROLLER __BF
4 1 49060400 MDR 710 REFL BRACKET ASSY
5 4 0305227 0-BELT .25 X 9.437 LG 83A
6 3 140061__ ROL G196AB __.__BF AX7 B2006
7 6 4910____ AXLE LOCK BRACKET (POINT UP)
