5.22 Belt Strip Decline Nose-Over Assy 24" Zone 4"
Centers 2 ZN (493176)

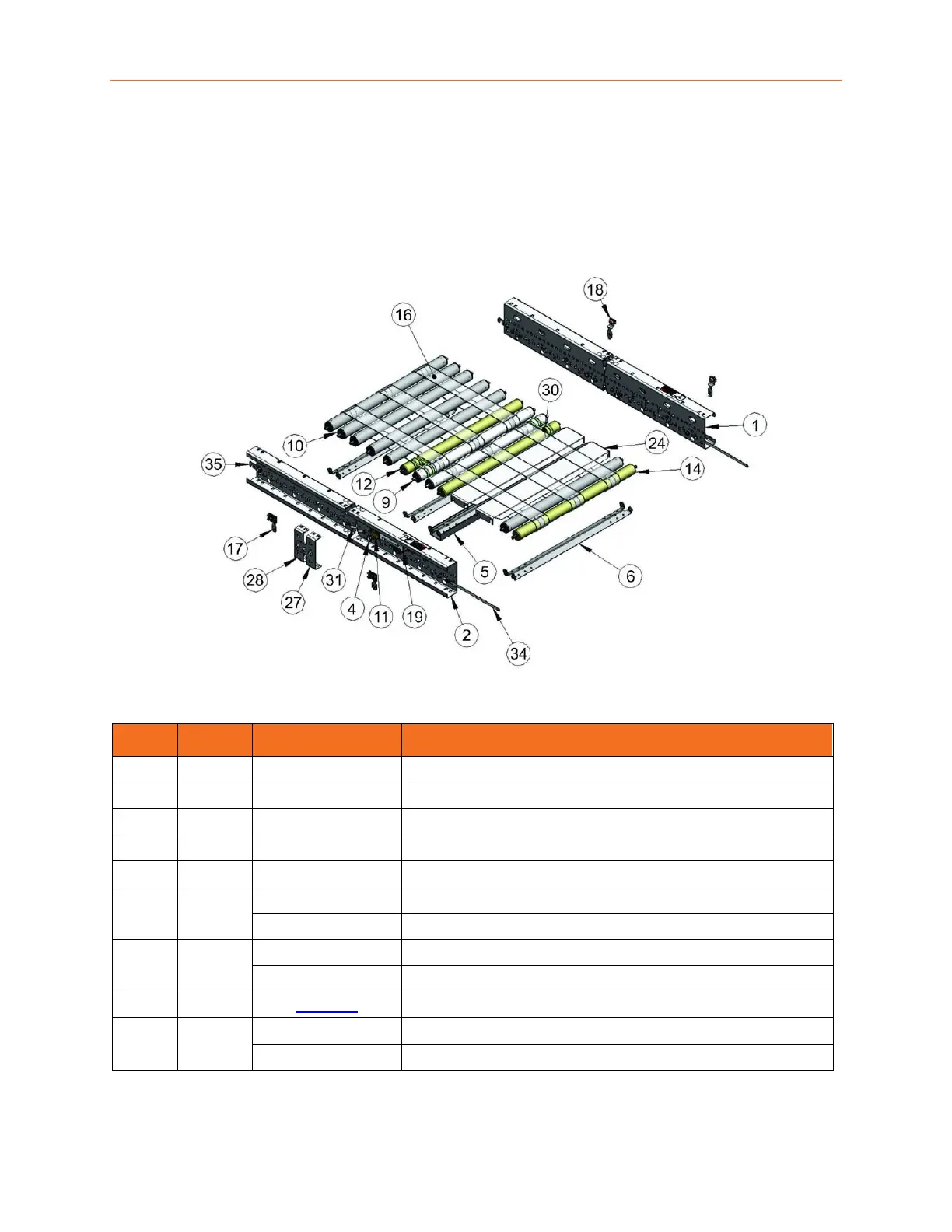

Figure 5-14 Belt Strip Decline Nose-Over Assy 24" Zone 4" Centers 2 ZN
Table 5-14 Belt Strip Decline Nose-Over Assy 24" Zone 4" Centers 2 ZN Spare Parts
SEQ QTY PART NO Description
1 2 49060501 MDR 710 CHAN PF/NO 24" LG 2-ZN SHN
2 2 49060502 MDR 710 CHAN PF/NO 24" LG 2-ZN OPP
4 2 20054600 GROMMET 1"OD X .71"ID FOR .87 DIA HOLE
5 1 490388 710 MDR EXTRUDED WIREWAY X-OVER __BF
6 4 490000 MDR SPDR STAMPED __"BF
9 2 140044__ ROL G196AB-__.00"BF DGR MDR AX7
140066__ ROL G196AB __.00"BF MDR DGR AX7 B2006
10 6 140002__ ROL G196AB __.00"BF AX7
140061__ ROL G196AB __.00BF AX7 B2006
11 3 49105100 WWL POINTS UP 3 PLT AXLE LOCK
12 1 150001__ WWL ST 60-180FPM DGR STD TRQ RLLR __BF (15 IN CABLE)
150005__ WWL HT 60-180FPM DGR HI TRQ RLLR __BF (15 IN CABLE)
