Service Screens Bootloader Screen
DOWNLOAD TYPE: Press this soft key to scroll through the languages (LANGUAGE-ENGLISH,
LANGUAGE-HEBREW, LANGUAGE-PORTUGUESE, LANGUAGE-SPANISH), BANNER, APP
and BOOT. Stop at the desired selection.
Choose a language to change LCD-160s selected at the ADDRESS field to display in that
language.
Choose BANNER to add the panel banner to those LCD-160 displays selected at the ADDRESS
field.
Select APP to download an application file to the selected LCD-160(s).
Select BOOT to download a boot file to the selected LCD-160(s).
AUTO:Press this soft key to automatically download to the LCD-160 the most up-to-date language,
bootloader, and application from the panel.
START:Press this soft key to begin the download.
5.3.2 Loop Download Menu
This screen allows the programmer to select loops for downloading applications and/or boot
programming.

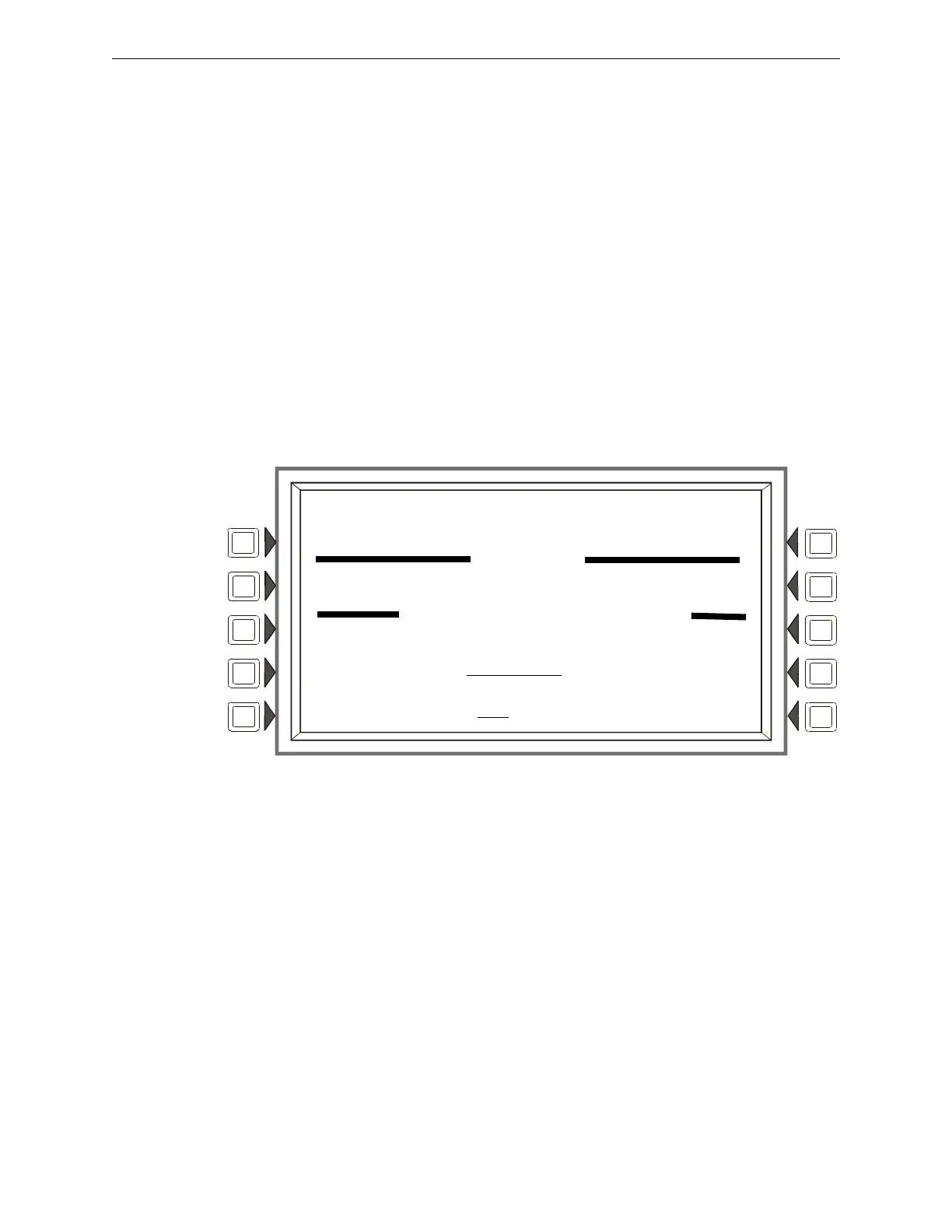

Figure 5.7 Loop Download Menu Screen
LOOP ADDRESS: Press this soft key to scroll through the Loops. Stop at the appropriate pair, or
select ALL.
DOWNLOAD TYPE: Press this soft key to scroll through the download types. Stop at the
appropriate type. Selections are: APP, BOOT, or APP/BOOT.
Select APP to download an application file to the selected loops.
Select BOOT to download a boot file to the selected loops.
Select APP/BOOT to select both for downloading.
AUTO:Press this soft key to automatically download to the selected loop(s) the most up-to-date
applications or boot programming from the panel.
START:Press this soft key to begin the download.
TROUBLE
LOADING..NO SERVICE
LAKEVIEW GENERAL HOSPITAL
BOOTLOADER
LOOP DOWNLOAD MENU
11:58:45A FRI NOV 25, 2005
AUTO
LOOP ADDRESS: LOOPS 1+2 START
DOWNLOAD TYPE: APP BACK
