36 NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005
Program Panel Program Menu (2)
3.3.4 Loop Configuration
This screen displays when the LOOP CONFIGURATION soft key is pressed at the Panel
Programming Menu 2 screen. Here the programmer chooses one of the ten possible SLC loops for
further definition.

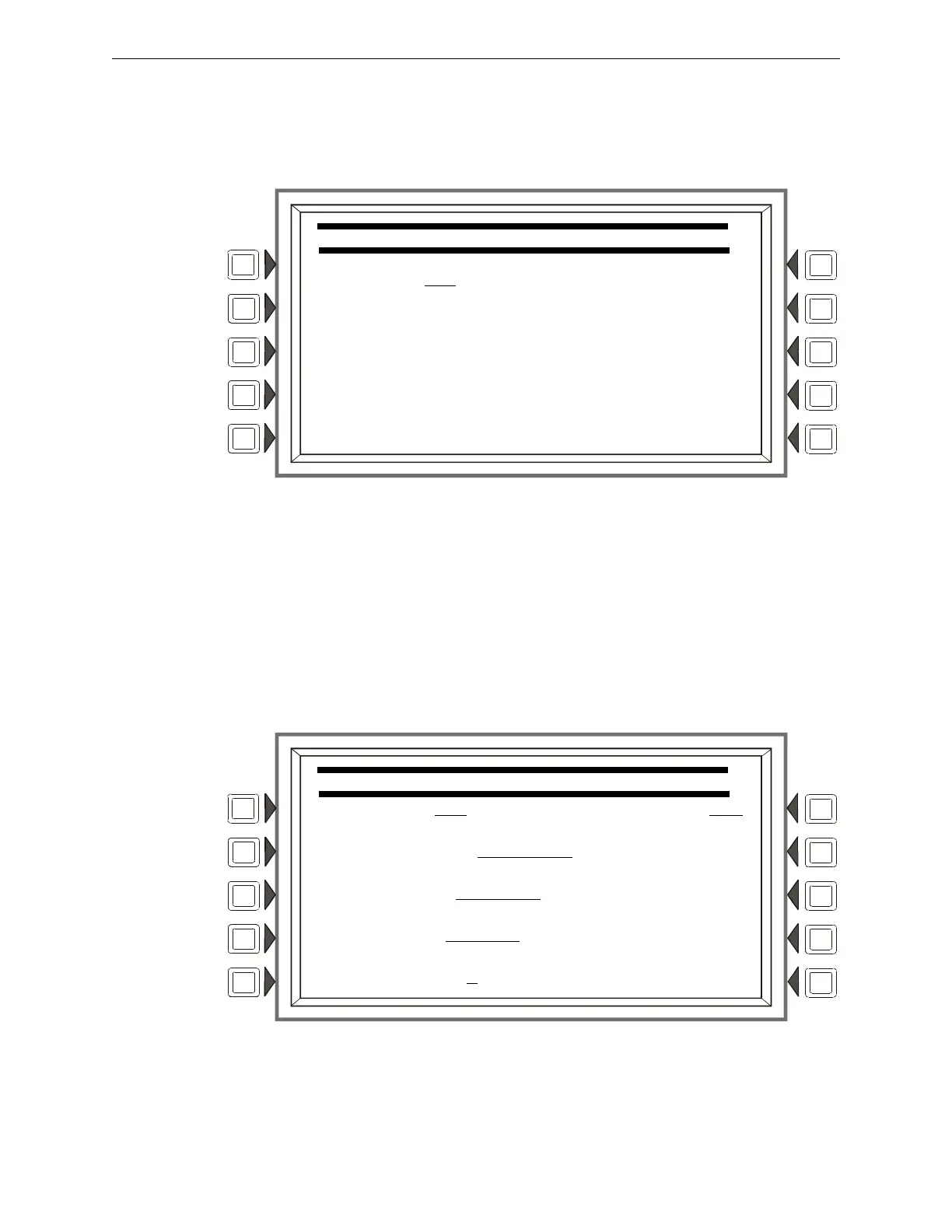

Figure 3.19 Loop Configuration Screen
Soft Keys
POINT SELECT: Pressing this soft key will invoke the cursor at the underlined field. Enter the
loop number desired (01 through 10) in the yy of the Lyy format.
NEXT/PREVIOUS SELECTION: Press either key to go forward or back through the loop
selections.
ACCEPT: Press to proceed to the Loop Point Programming screen.
Loop Point Programming
Figure 3.20 Loop Point Programming Screen
Soft Keys
INSTALLED: Press this soft key to choose YES or NO, depending on whether an SLC is installed
at this address.
LOOP CONFIGURATION
LOOP SELECTION
Lyy (LOOP)
NEXT LOOP ACCEPT
PREVIOUS LOOP BACK
LOOP POINT PROGRAMMING
INSTALLED: YES BLINK MODE: _ON
DETECTOR POLL: CLIP
MODULE POLL: CLIP
RAPID POLL: ENABLED ACCEPT
WIRING STYLE: 6 BACK
