NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005 81
Download Screen Service Screens
5.4 Download Screen
This screen is displayed during application/database/loop/LCD-160 downloads. The progress meter
shows the current download type and progress.

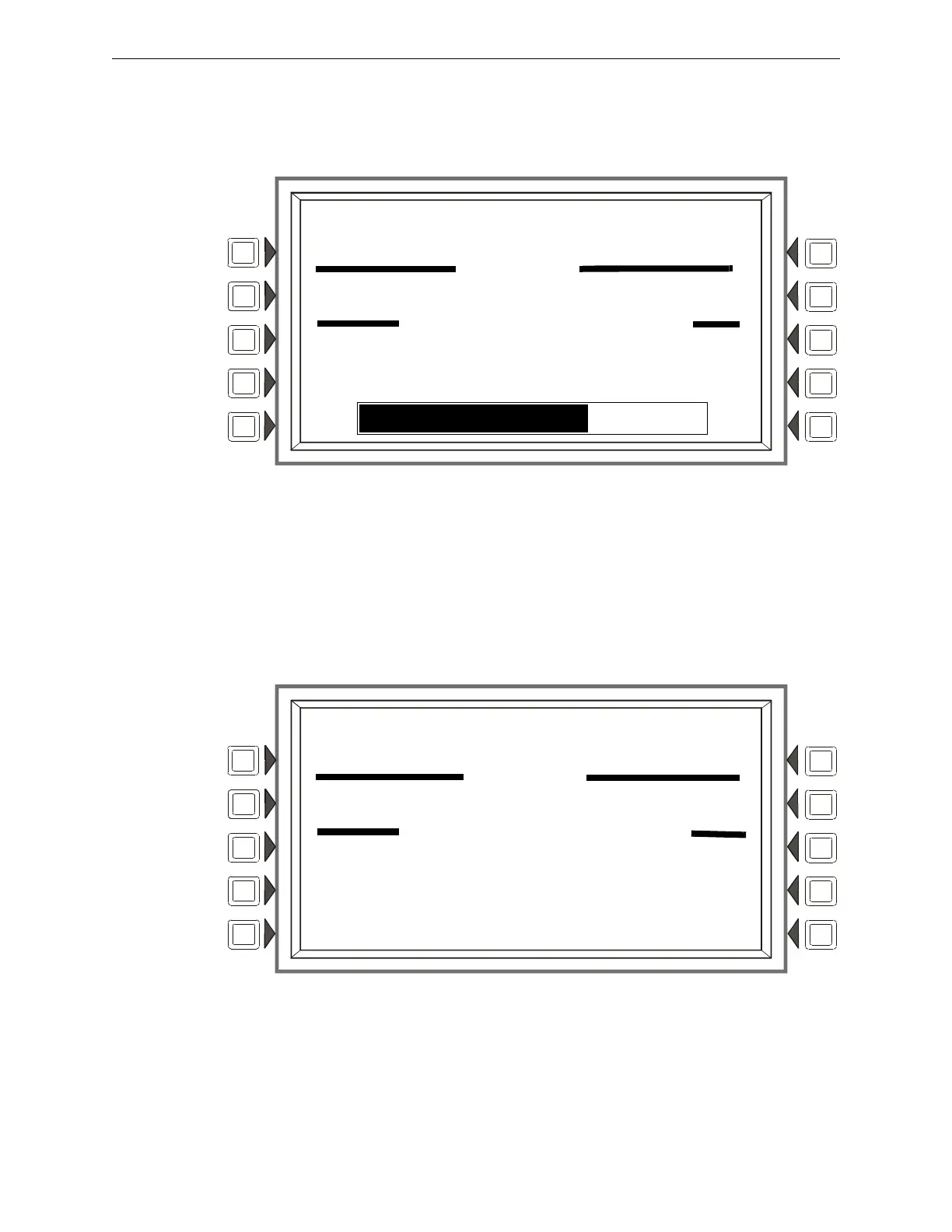

Figure 5.8 Download Screen
5.5 Application Corrupt Screen
During power-up, the panel checks the image integrity of the application code. If the code is
corrupt, the panel cannot proceed, and the following screen is displayed. The user must use VeriFire
to download the application code. Usually this screen results from a power interrupt during a
critical period of application download. The trouble LED will flash and the piezo (if enabled) will
pulse while this screen is in effect.
Figure 5.9 Application Corrupt Screen
TROUBLE
LOADING..NO SERVICE
LAKEVIEW GENERAL HOSPITAL
BOOTLOADER
PERFORM DOWNLOAD
11:58:45A WED NOV 23, 2005
RECEIVING LCM IMAGE...
76%
TROUBLE
EPROM ERROR
LAKEVIEW GENERAL HOSPITAL
BOOTLOADER
11:58:45A WED NOV 23, 2005
ACKNOWLEDGE
PERFORM DOWNLOAD
