NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005 95
Abort Switches Releasing Applications
How to Program an Abort Switch
The following contains information needed to program an Abort Switch for a monitor module.
Description A monitor module, connected to a UL-listed abort station (such as the Notifier
NBG-12LRA), used to monitor an abort switch for a releasing zone. Multiple monitor modules can
be programmed with the
ABORT SWITCH Type Code. They will work like multiple conventional
abort switches on a conventional zone.
Program Select a monitor module for use as an Abort Switch. While programming this module
(refer to Section 3.4.2, “Module Point”, on page 46 for instructions),
1. Select the
ABORT SWITCH Type Code.
2. Enter the number of the desired releasing zone into the module’s zone map. The releasing zone
must be fully programmed, with the Abort Switch type code included (refer to Section 3.4.4,
“Releasing Zone”, on page 50).
Example A programming example of a monitor module programmed as an Abort Switch for
Releasing Zone ZR05.

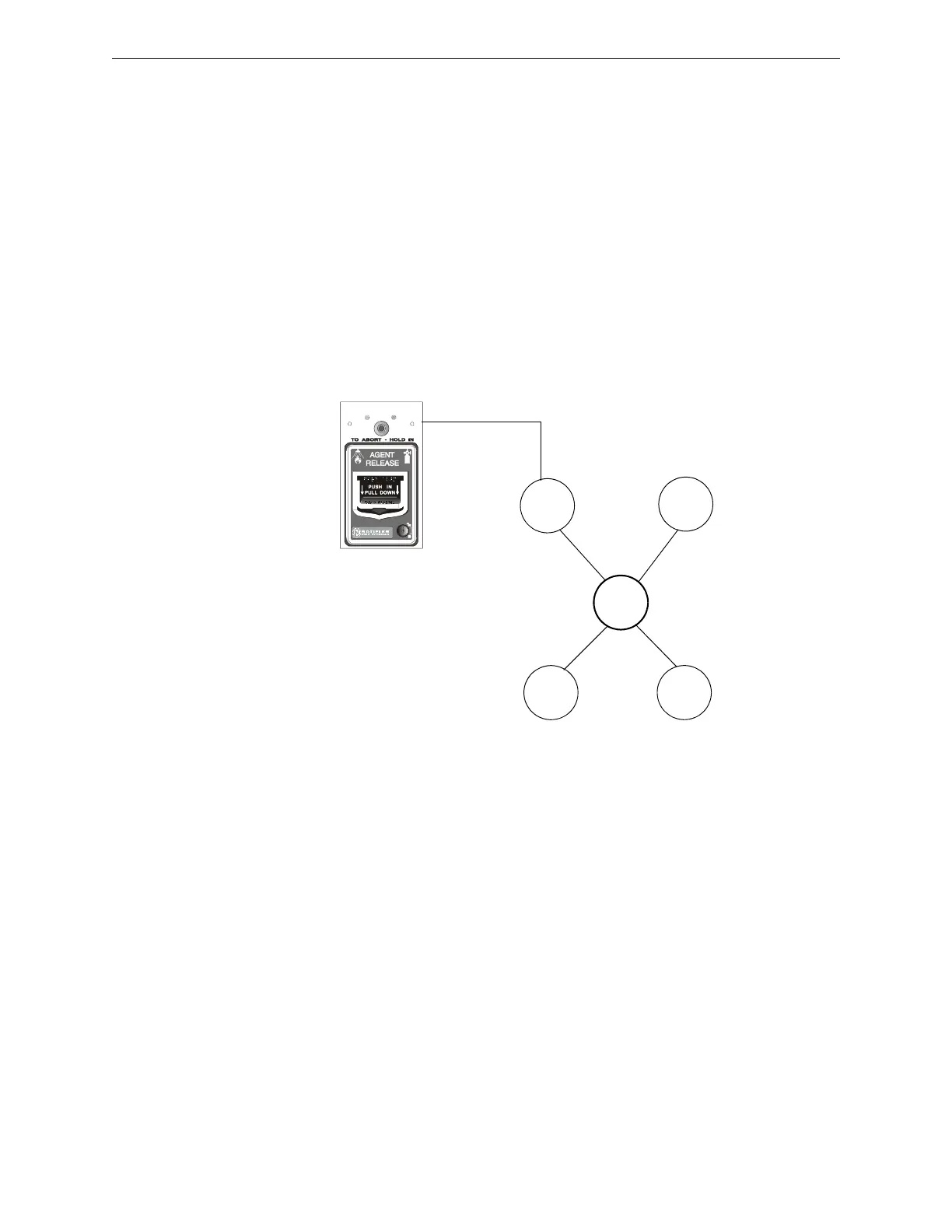

Figure B.9 Monitor Module Configured as an Abort Switch
SYSTEM
NORMAL
SYSTEM
CTIVATED
Detector
R05
NBG-12LRA
station with
Abort Switch
Monitor
Module
Type Code
ABORT SWITCH
SLC
output
module
SLC
output
module
To Next Page
