NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005 99
Abort Switches Releasing Applications
How to Program a Release End Bell Circuit
The following contains information needed to program a Release End Bell circuit for an SLC
output module
.
Description An SLC output module to activate an audible or visual device when releasing
devices shut off. Multiple outputs with the
REL END BELL Type Code can also be mapped to the
same Releasing Zone. When all the Releasing Zone functions are complete, all outputs with the
REL
END BELL Type Code activate at the same time. A REL END BELL circuit remains on until the system
is reset.
Program Select an SLC output module to use as a Release End Bell circuit. While programming
the point (refer to the Point Programming section of this manual for instructions),
1. Select the
REL END BELL Type Code,
2. Enter the number of the desired releasing zone into the module’s zone map. The releasing zone
must be fully programmed (refer to Section 3.4.4, “Releasing Zone”, on page 50).

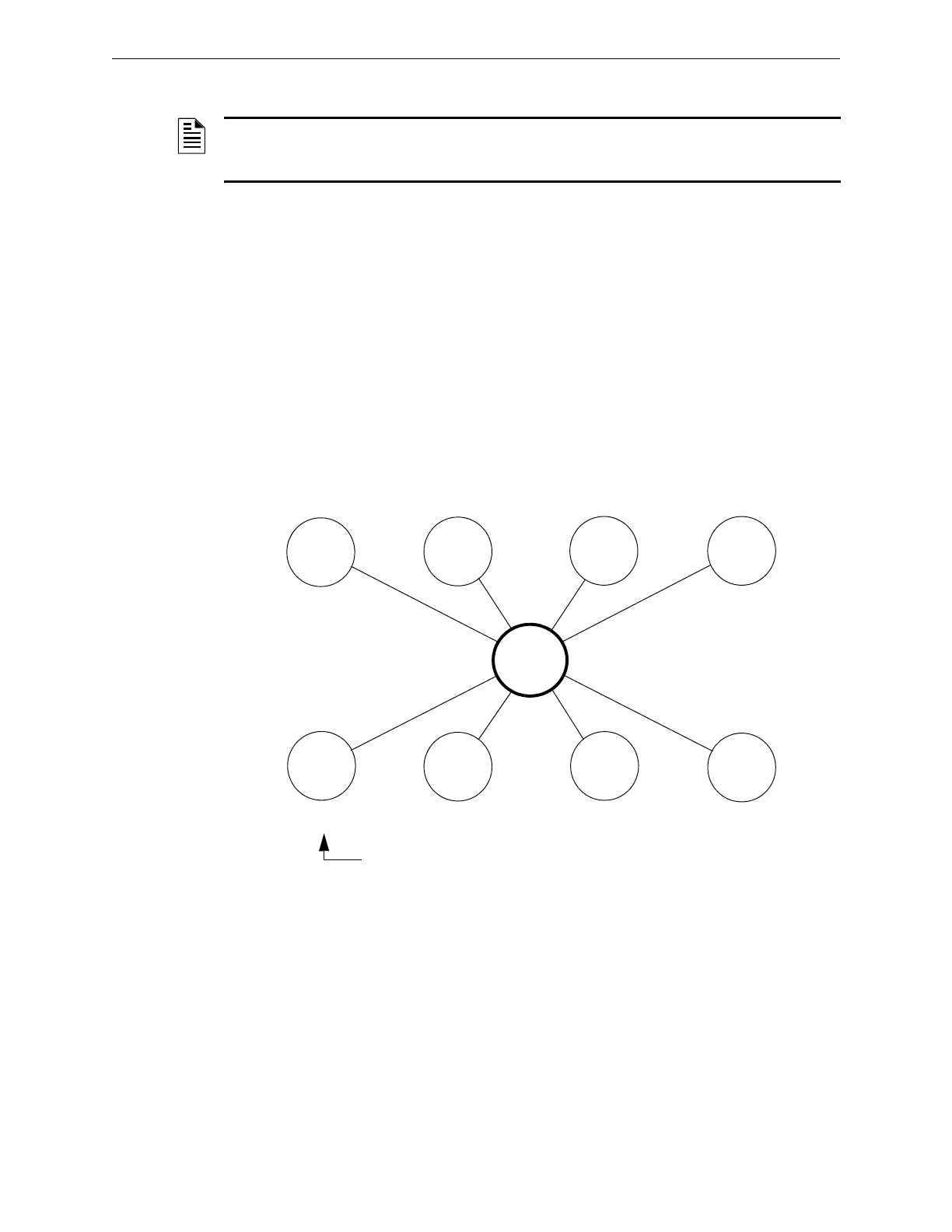

Example A programming example of a control module programmed as a Release End Bell for
Releasing Zone ZR05.
Figure B.13 Output Module Configured as a Release End Bell Circuit
NOTE: A releasing circuit with this Type Code requires the following selections: a Releasing
Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable;
No Walk Test.
Type Code
REL END BELL
Type Code
RELEASE CKT
Type Code
RELEASE CKT
Type Code
REL AUDIBLE
For example, a module programmed with the REL END BELL
Type Code activates when all releasing functions, such as the
releasing functions programmed for ZR05, shut off.
Output
module
Output
module
ZR05
Monitor
Module
Detector
Detector
Detector
SLC
output
module
SLC
output
module
To Next Page
