Controls applicable for Vigilon Compact VA panel only - (legacy product)
(green and red)

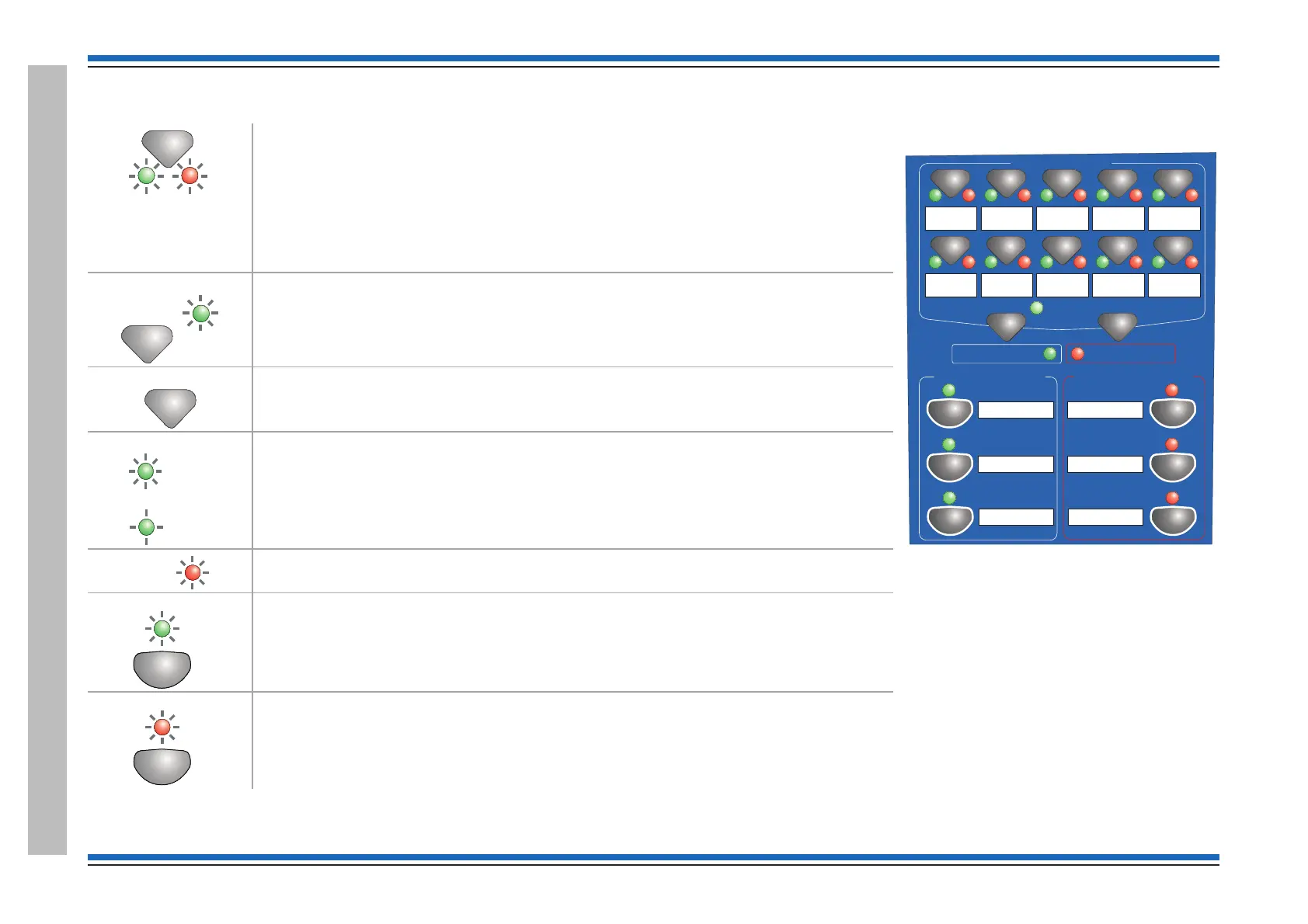

Pressing one or more of the 10 buttons selects the local Voice Alarm Zone(s) of the local
system to which emergency or auxiliary messages, or emergency microphone is to be
announced. The two LEDs beneath flash alternately to show the Voice Alarm Zone has
been selected.
On selecting the required emergency or auxiliary message only one of these LEDs changes
to steady or flashing indication determined by the type of audio to be outputted to the
selected Voice Alarm Zones. The left LED indicates auxiliary message selection while the
right LED indicates emergency message selection.
Pressing the 'All Zones' button allows quick selection of all Voice Alarm Zones
simultaneously. The accompanying LED gives a steady indication when the button is
pressed. Note all the VA Zones that have been setup in your system will give a flashing
indication and those not setup will give no indications.
Pressing 'Clear Zones' button will clear selected Voice Alarm Zones, also when auxiliary
messages are being announced pressing 'Clear Zones' will silence the announcements.
(green)
(green)
When 'Speak Now' light is illuminated the system is ready to allow live speech
announcement to selected Voice Alarm Zones via the Emergency microphone.
The indicator is lit following the selection of Voice Alarm Zones and on pressing the Press to
Talk (PTT) button on the Emergency microphone.
If the 'Press to Talk' button is released the 'Speak Now' indicator will flash and switch off
after 20seconds duration or immediately switch off on pressing the Clear Zone button.
(red)
When the 'VA Activated' LED is illuminated it indicates the voice announcements are being
made or emergency microphone is in use for speech announcement to Voice Alarms Zones.
When illuminated the system is announcing auxiliary message n to the selected Voice Alarm
Zones.
The indicator is lit following the selection of Voice Alarm Zone(s) and on pressing the
required Auxiliary message button.
When illuminated the system is announcing emergency message n to the selected Voice
Alarm Zones.
The indicator is steady or flashing determined by the type of emergency message being
announced to Voice Alarm Zones.
Commissioning instructions
22 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Controls and indicationsControls and indicationsControls and indications
Auxiliary messages
n
(green)
All Zones
Clear Zones
Voice Alarm Zones
Speak Now
Auxiliary messages
Emergency messages
1423 5
6978
10
1
2
3
1
2
3
ALERT
BOMB
EVACUATE
TEST START
STAND DOWN
TEST END
VA Activated
Controls and indicationsControls and indications
