Honeywell XNX Technical Manual

XNX Universal Transmitter
Section 6 - Specications
156

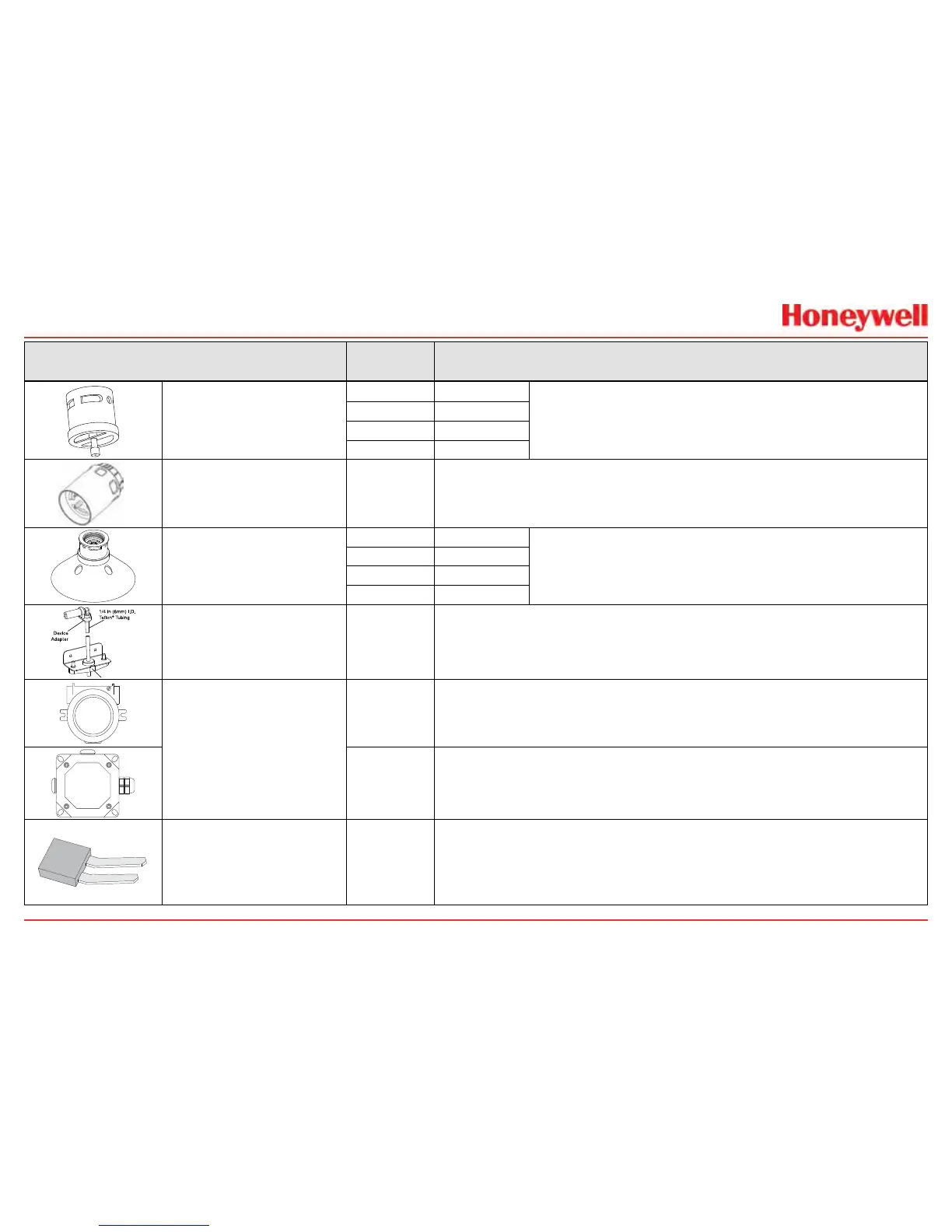

Accessory/Spare Part Number Description
WeatherproofCap
Included XNXEC
TheweatherproofcapprotectstheXNXsensorsfromharshweather�
02000-A-1640 MPD
02000-A-1640 Sensepoint
02000-A-1635 705
ExtremeWeatherProtector SPXCDWP
SensorXNX-ECorMPD;theweatherprotectionisdesignedtoprotectthesensorfrom
environmentalconditionsinoutdoorexposureapplications�
CollectingCone
S3KCC XNXEC
Thecollectingconeimprovesdetectionoflighter-than-airgasessuch
ashydrogenandmethane�
02000-A-1642 MPD
02000-A-1642 Sensepoint
02000-A-1642 705
RemoteGassingKit 1226A0354
TheRemoteGassingKitenablesgastobeappliedremotelyforperformingfunctional
responsechecks�
KitIncludes:50’Teon
®
tubing,mountingbracket,tubecapanddeviceadaptersin1/4”
and1/8”IDtoattachtobumptestportsontheweatherproofcapofyourdevice�
RemoteMPDMounting
2441-0022 UL/CSAAluminumJunctionBox
00780-A0100 ATEX/IECJunctionBox(3)M20,(1)M25entries�“Exe”ATEXIECApproval
TerminalBlock/Shorting
Jumpers
ContactHA
Terminalblock jumpersprovide an electrical connection without connection to the
PersonalityBoard�Installthejumpersbetweenpins1and2andbetweenpins3and4
tosupportmulti-nodewiring�

Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
