Honeywell XNX Technical Manual

XNX Universal Transmitter
Section 6 - Specications
157

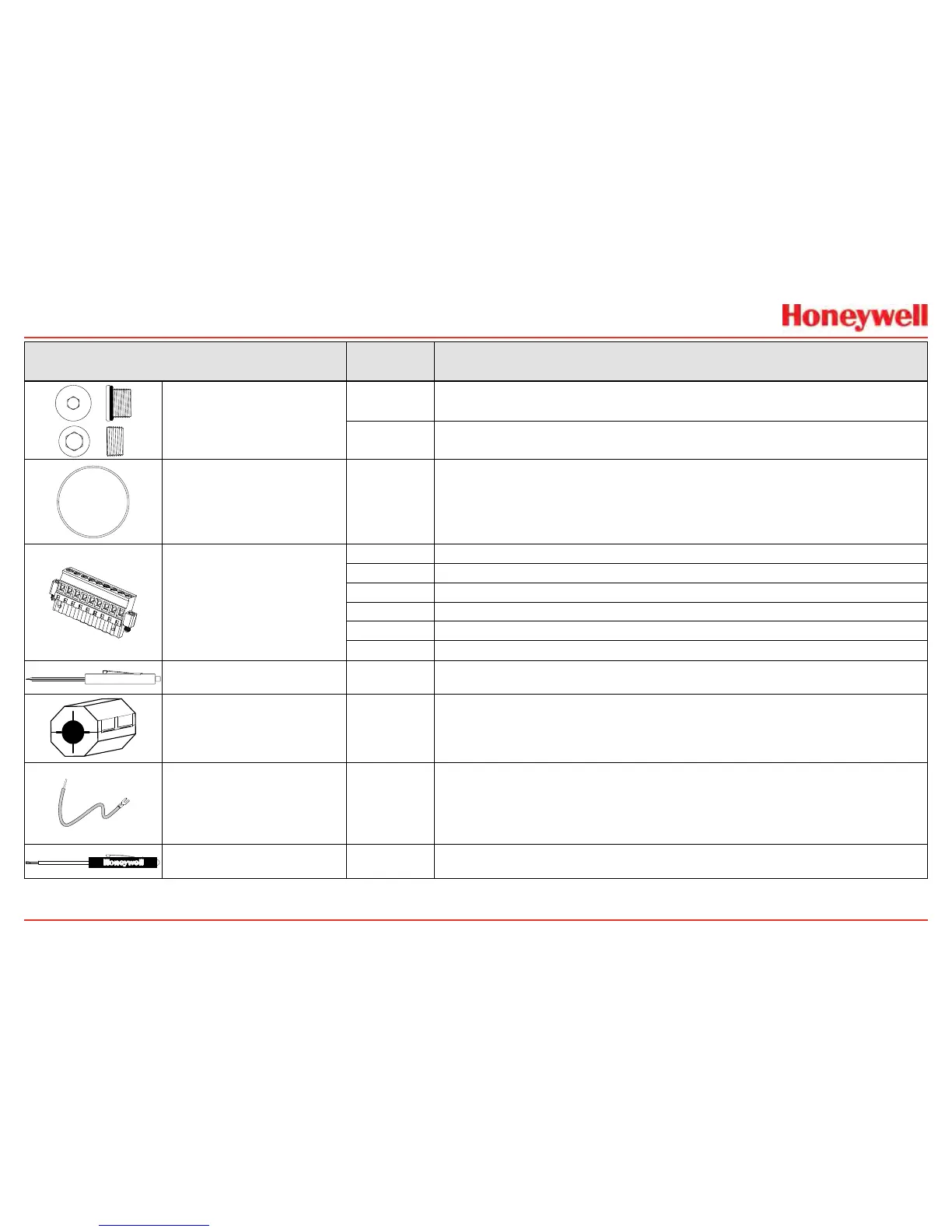

Accessory/Spare Part Number Description
StoppingPlugs
1226-0257
M25Plugw/protectivecapandO-ring�(CertiedforusewithXNXUniversalTransmitter
only)
1226-0258 3/4NPTw/protectivecap�(CertiedforusewithXNXUniversalTransmitteronly)
ReplacementCoverO-ring 0235-1266 ReplacementO-ringfortheXNXfrontcover
1
2
3
4
5
6
7
8
9
PluggableTerminalBlocks
1226A0302 TerminalBlockAss’y6-PinXNXEC
1226A0304 TerminalBlockAss’y9-PinXNXmV
1226A0305 IRTerminalBlockKitIncludes:9-Pinand2-PinTerminalBlocks
1226A0306 RelayTerminalBlockKitIncludes:9-Pinand2-PinTerminalBlocks
1226A0307 TerminalBlockAss’y10-PinXNXModbus
1226A0303 TerminalBlockAss’y6-PinFFB
MagneticWand/Screwdriver 1226-0254 Replacementwandforfrontpanelaccess
FerriteBead 0060-1051 BeadFerriteMVXNX
FoundationFieldbusGround
Cable
0310-0041 CableGroundFoundationFieldbusXNX
SmallScrewdriver 1226-0408
ReplacementscrewdriverforuseonTerminalBlockTB2andTB4(IRPersonalityand
RelayOption)

Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
