4 Assembly
Linear actuators MC55
Operating Manual Version 3.3 - November 2014 11
4 Assembly
Prior to assembling the linear actuator:
4.1 Checking the scope of delivery on page 11
4.2 Preparing assembly on page 11
The following sequence of operations is part of the linear actuator assembly:
4.3 Mounting the linear actuator on the valve on page 12
4.4 Assembling/disassembling the cover on page 13
4.5 Electrical connection on page 14
4.1 Checking the scope of delivery
1 Check the packaging for damage.
2 Dispose of packaging in an environmentally friendly manner.
3 Check the delivered items against the delivery note in order to see whether the
delivery is complete.
4 Report any missing or damaged products to the manufacturer.
4.2 Preparing assembly
A non-attached valve causes damage!
If you operate the linear actuator without valve, the spindle nut may fall off due to
the missing stroke.
• Always operate the linear actuator with a valve attached.
1 Allow for about 140 mm space above the cover at the site of installation.
2 Check the working environment before assembling and commissioning the linear
actuator:
3 Ensure that the valve is correctly fitted. For details please see assembly
instructions for valve.
4 Determine the assembly position of the linear actuator. Do not arrange linear
actuators in a hanging position.

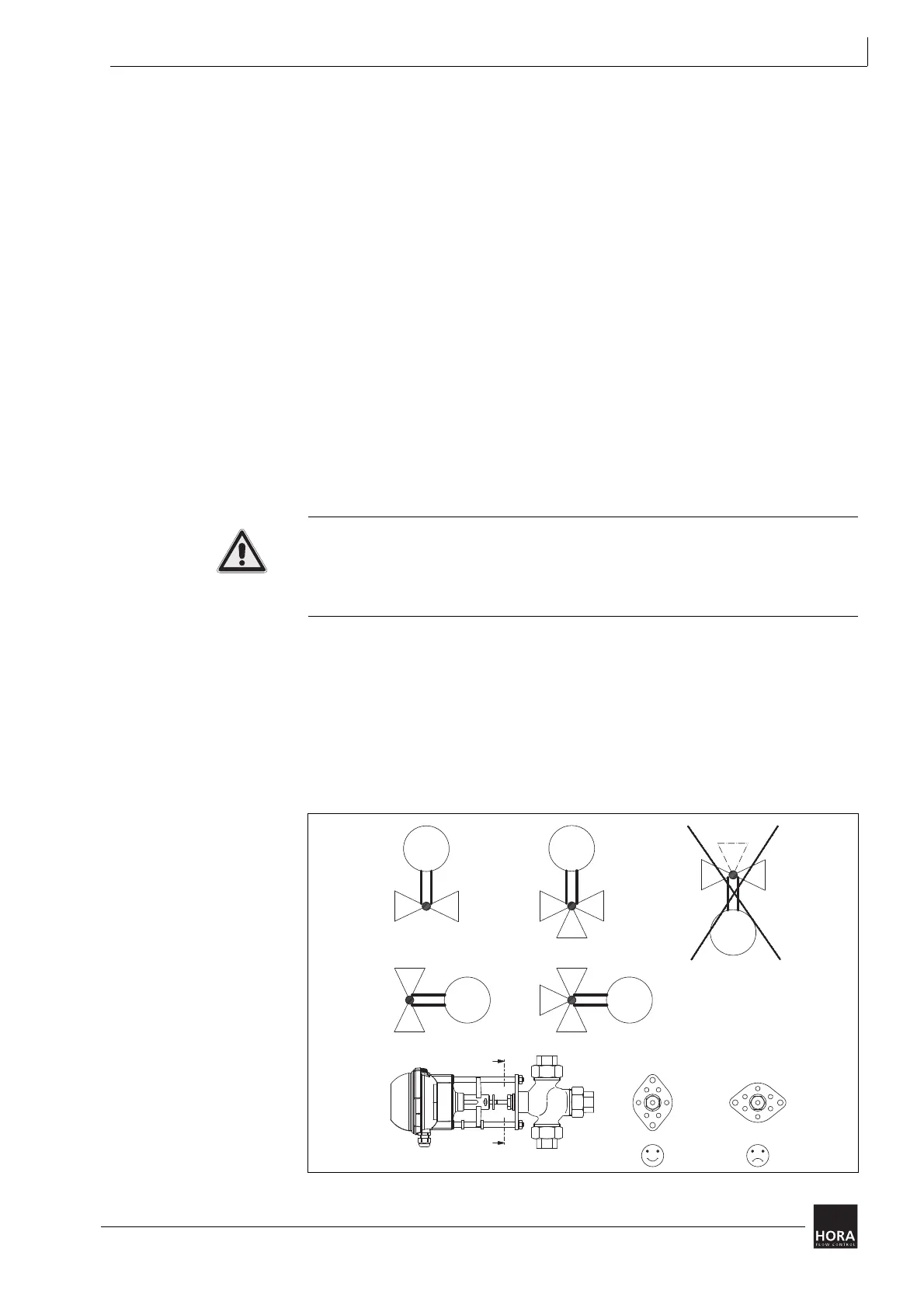

diagram 3 Assembly positions for linear actuator and valve
M
MM
M
M
M
A - B
AB A
B
