2 Product Specification
Linear actuators MC160 • MC161 • MC163
6 Version 2.1 - March 2011 Operating Manual
2 Product Specification
The linear actuators control a stepper motor by means of a micro controller. The
stepper motor’s rotational movement is converted into a linear movement via
planetary gears and a threaded spindle with spindle nut.
2.1 Component parts
1 Actuator housing
2 Cross head
3 Coupling piece
*
4 Union nut
5 Spindle nut
8 Position indicator
*
11 Distance sleeve
13 Bridge
27 Spacer for 230 V*
33 Sheeting*
36 Hand wheel
60 Guiding sleeve
101 Engine/ motor
* This component part is available as a spare part!
107 Push-fit PCB for 24 V or 230 V
110 Main board
201 Cover for 24 V or 230 V
*
230 Cable lead-in M20 × 1.5
*
231 Cable lead-in M16 × 1,5
*
308 Safety disk
*
314 Blank
*
315 Bolt
*
448 Hexagon nut M8*
451 Hexagon nut M10
*
480 Type plate
481 Wiring diagram on cover

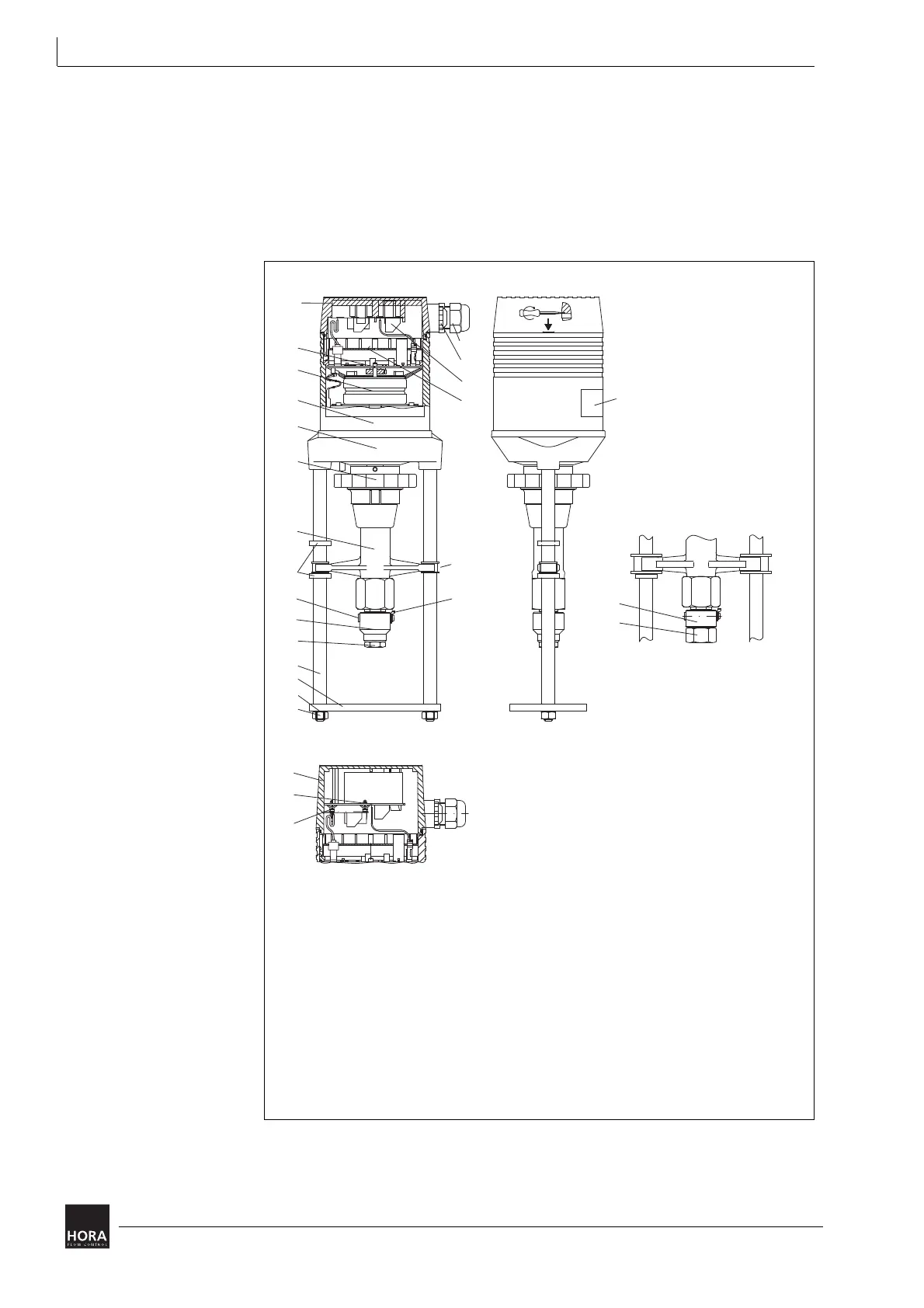

diagram 1 Component part denominations
4
3
7 mm
480
314
110
101
1
13
36
60
5
8
MC160/24, MC163/24
314
230
231
107
33,
201
315
3
451
11
2
308
448
3
4
MC161/24
480
481
230
V
27
107
201
201
107
27
MC160/230, MC163/230, MC161/230
