4 Assembly
Linear actuators MC160 • MC161 • MC163
16 Version 2.1 - March 2011 Operating Manual
9 Adjust the height of the spindle nut (5) with the help of the hand wheel (36) so
that you can remount the bolt (315).
Fit on the blank (314)!
How to disassemble the linear actuator
1 Follow the sequence of operation in reverse order.
4.4 Assembling/disassembling the cover
The cover contains the terminals for electric connection.
Risk of injury from electric shock by live parts!
When the power supply is on there is a danger of electric shock due to live parts.
• Prior to commencing any work, ensure that the actuator is safely disconnected
from the power supply system.
• Secure against unauthorised restarting.
• Remove the cover only momentarily.
How to remove the cover
1 Insert a screwdriver in the notch of the cover and lift the cover (201).
Damaged cables result in damage to devices!
When lifting the cover you may tear off or damage the cabling inside the cover.
• Carefully remove the cover.
2 Remove the cover (201) carefully.
3 Disconnect the plug-in connection between the main PCB and the (110) cover
(201).
How to attach the cover
1 Plug the previously pulled off cables back into the main PCB (110).
Pay attention to the notches on plug and socket.
201 Cover

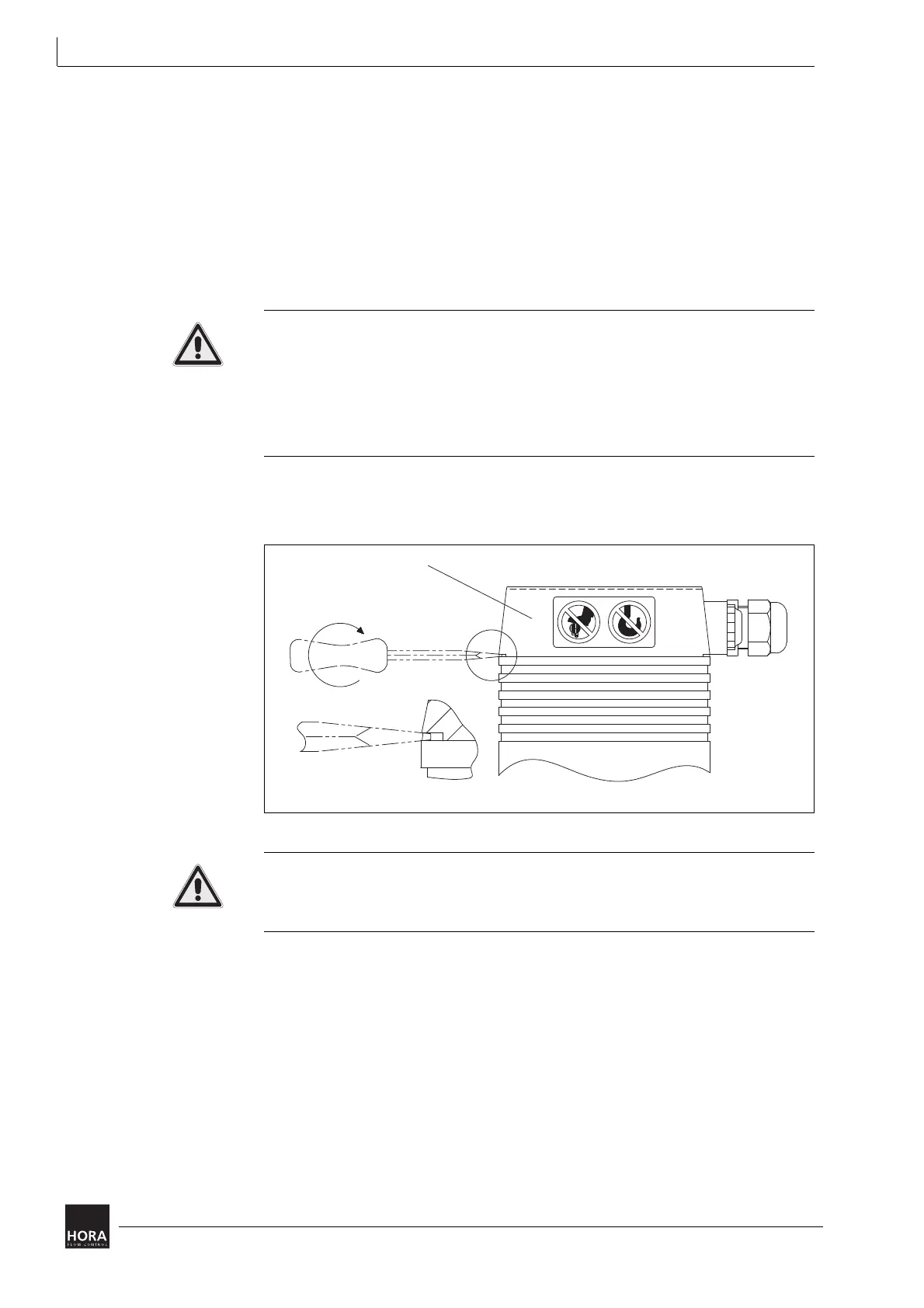

diagram 8 Removing the cover
