5 Commissioning
WARNING
Risk of injury from electric shock by live parts!
When the power supply is on there is a danger of electric shock due to live parts.
• Prior to commencing any work, ensure that the actuator is safely disconnected
from the power supply system.
• Secure against unauthorised restarting.
Operating parameters are set at the encoding switches (116) and jumpers. The
encoding switches and jumpers are situated underneath the PCB cover (33) in
the actuator housing (1).
 4.4 Assembling/disassembling the cover on page 14
 4.5.2 Removing the PCB cover on page 18
33 PCB cover 116 Coding switch
JP1 Jumper
JP2 Jumper

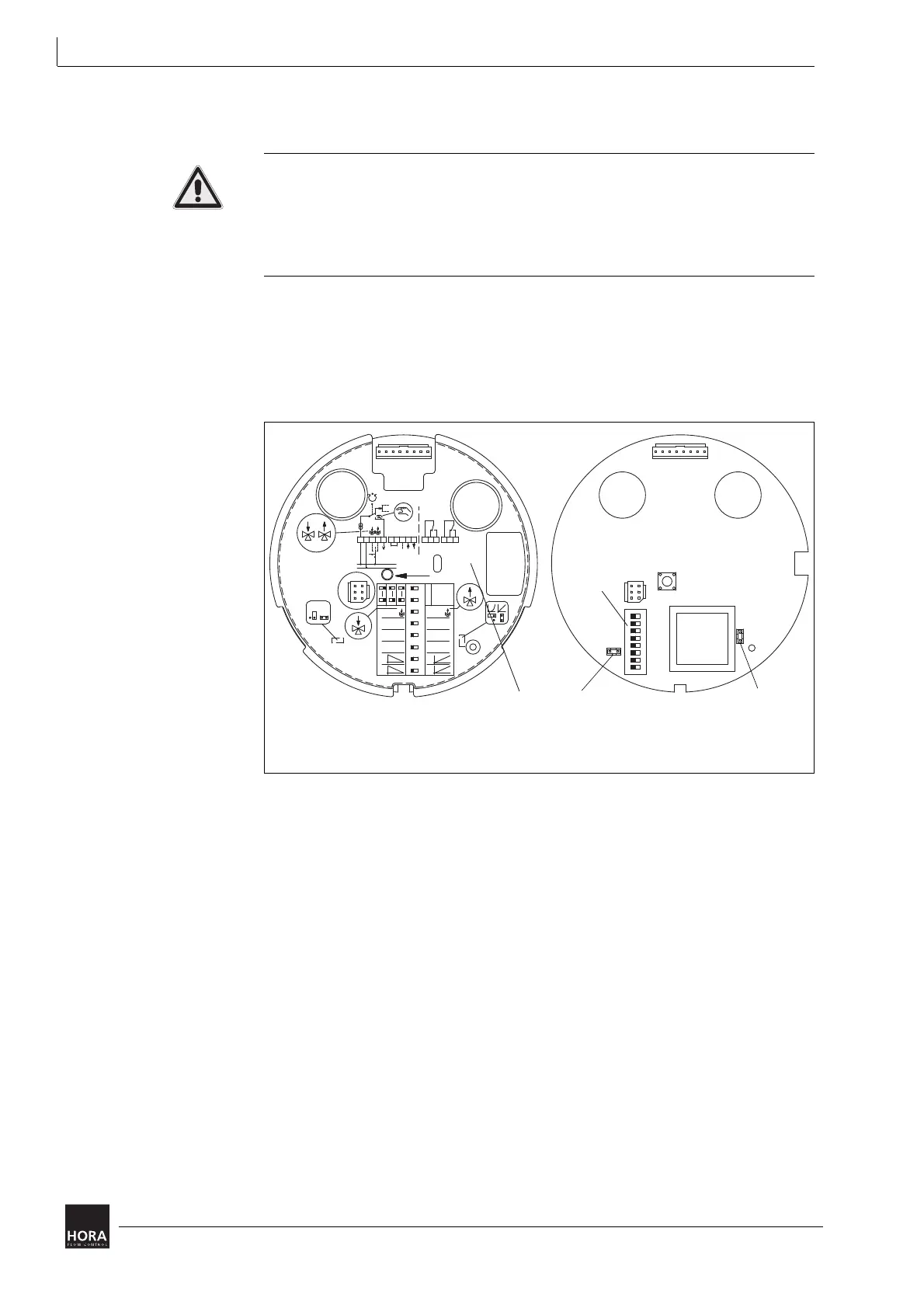

diagram 16 PCB cover, encoding switch and jumper
