HORA MC55/24 - Controller Independent Circuit MC55 Y

4 Assembly
Linear actuators MC55
16 Version 3.3 - November 2014 Operating Manual
4.5.1 Controller independent circuit MC55Y
When working with 24 V supply voltage and 0 … 10 V DC / 2 … 10 V DC input
signal you can switch the actuator controller-independently via a three-step
toggle switch in the control cabinet.
 How to switch the actuator controller-independently
1 Run the supply voltage 24 V AC via a diode and a three-step toggle switch to
terminal Y.
2 Using the toggle you can move the linear actuator to the following positions:
• Closed-loop control by input signal Y (normal operation)
• 10 V-position
• 0 V-Position, the linear actuator can be moved to the position on the plug-in
jumper selected by jumper JP2 at 2 … 10 V DC .
 5.1 Operating parameters and jumper settings on page 19
 5.5 Setting the limit position for MC55Y on page 21
z

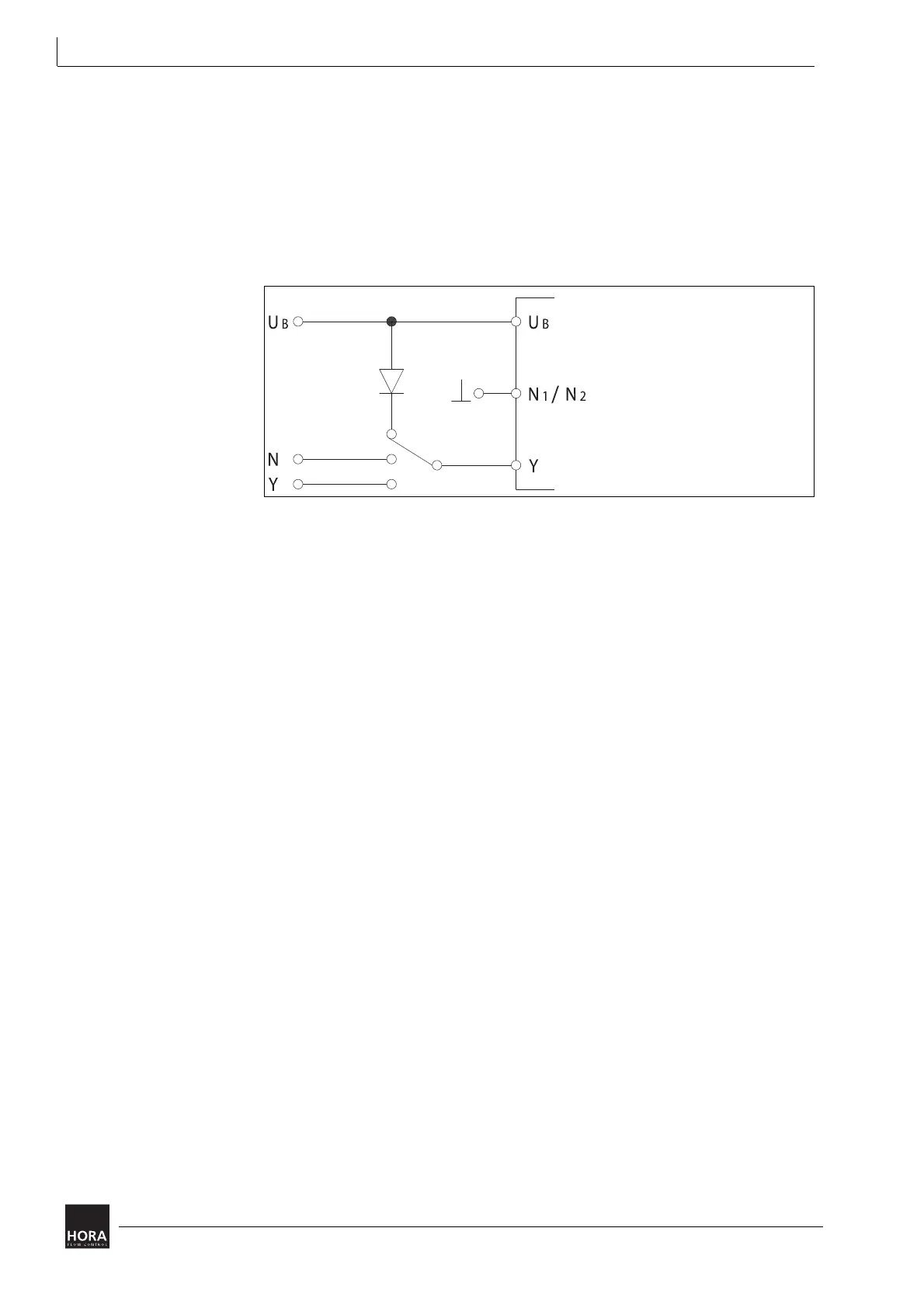

diagram 7 Controller independent circuit
Example: 1N4001;
1N4148
10 V Pos.
0 V Pos.
Closed-loop control
