2 Product Specification
Linear actuators MC100 • MC103
6 Version 2.1 - March 2011 Operating Manual
2 Product Specification
The linear actuators control a stepper motor by means of a micro controller. The
stepper motor’s rotational movement is converted into a linear movement via
planetary gears and a threaded spindle with spindle nut.
2.1 Component parts
* This component parts is available as a spare part!
1 Actuator housing
2 Cross head
3 Coupling piece*
6 Clutch
8 Position display*
11 Distance sleeve
13 Bridge
27 Spacer for 230 V*
28 C-frame
33 Sheeting*
36 Hand wheel
101 Engine/ motor
107 Push-fit PCB for 24 V or 230 V
110 Main board
201 Cover for 24 V or 230 V*
230 Cable lead-in M20 × 1,5*
231 Cable lead-in M16 × 1,5*
308 Safety disk*
448 Hexagon nut M8*
480 Type plate
481 Wiring diagram on cover

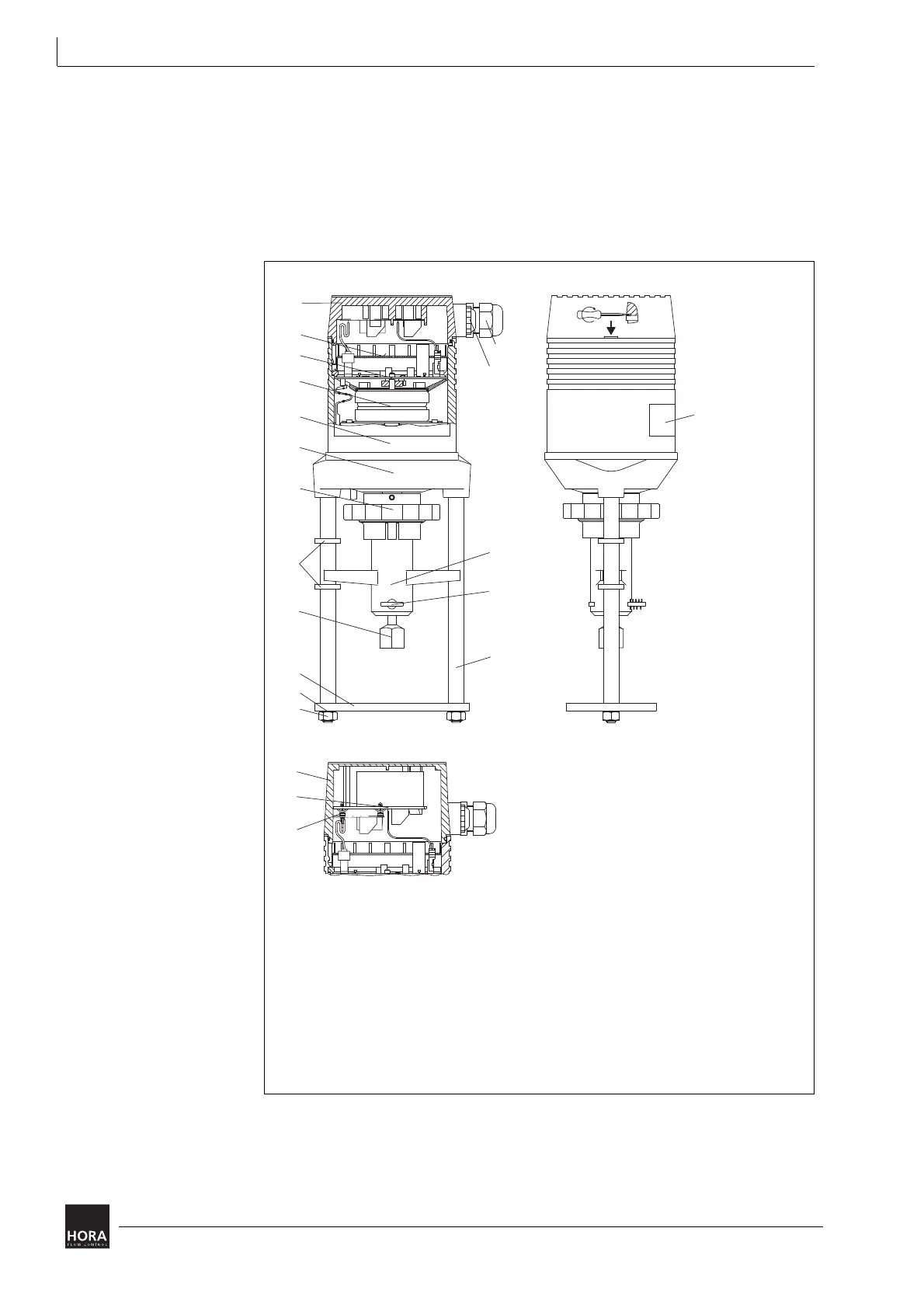

diagram 1 Component part denominations
448
308
2
6
8
36
13
1
101
110
230
231
107
201
33, 481
24 V
12
11
7 mm
480
3
28
110
101
1
13
36
6
8
MC100/24, MC103/24
28
230
231
107
33,
201
3
11
2
308
448
480
481
27
107
201
230 V
201
107
27
MC100/230, MC103/230
