4.5.2 Removing the PCB cover
To set the linear actuator by using the encoding switch you will first have to
remove the PCB cover. (33)
Risk of injury from electric shock by live parts!
When the power supply is on there is a danger of electric shock due to live parts.
• Prior to commencing any work, ensure that the actuator is safely disconnected
from the power supply system.
• Secure against unauthorised restarting.
1 Insert the screwdriver in one of the notches on the cover (201) and lift off the
cover (201).
2 Insert a small screwdriver in the designated notch on the printed circuit cover
(33) and lift if off.
3 Access to encoding switches S1 to S8 as well as jumpers JP1 and JP2 is
achieved by removing the PCB cover (33) in the actuator casing (1).
33 Sheeting

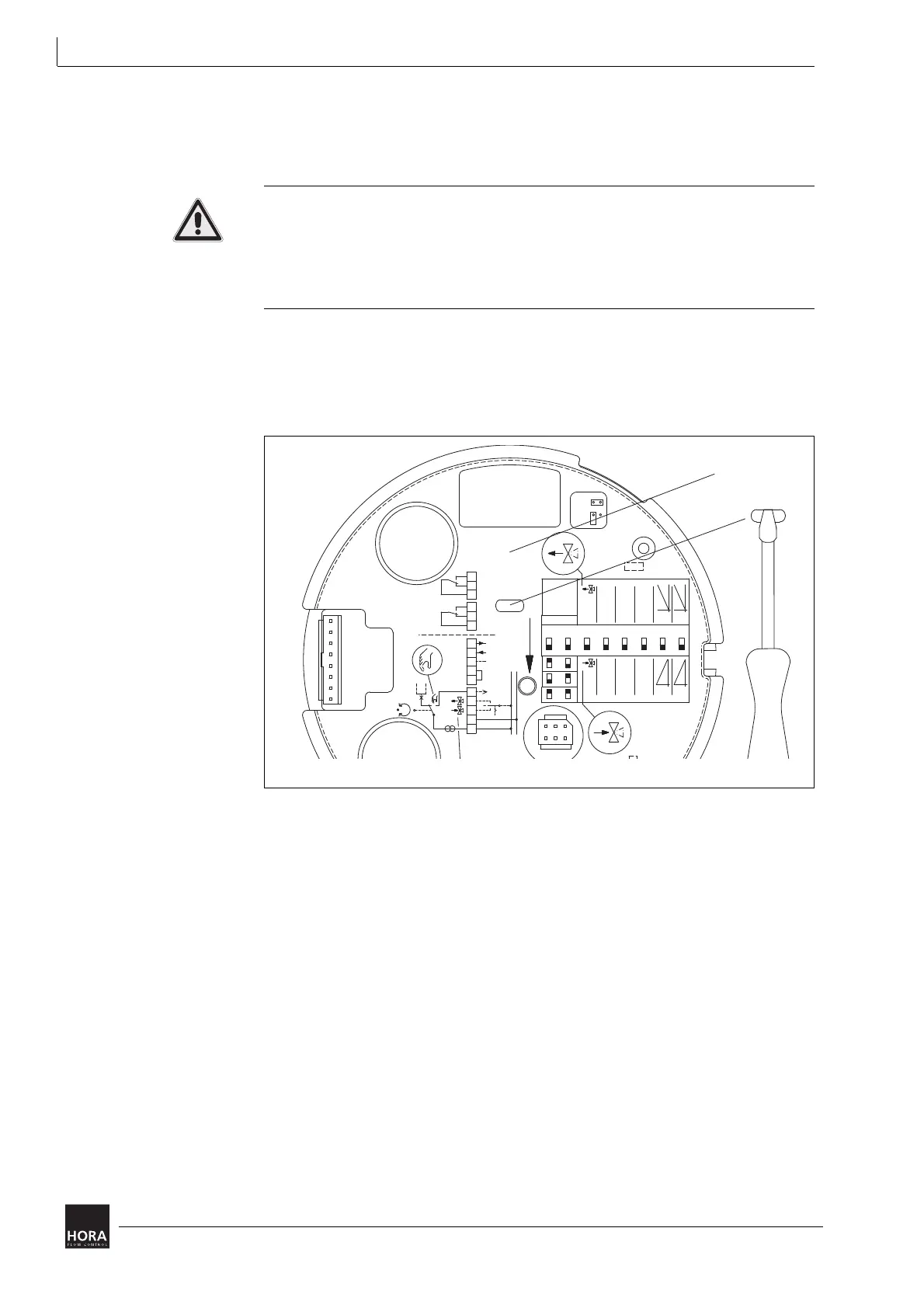

diagram 11 Remove the PCB cover in the actuator housing
33
A
A
GND
4 VDC
4 VAC;
30 VAC;
(GND)
U
T
XY
N2B2B1
R32
N1
UB
JP1
1600 N
1000 N
x
y
0,5
0,3
(0...20 mA)
0...10 V
ausein
12345678
x
(4...20 mA)
2...10 V
6 s/mm
Stellzeit
Autotest
Pause
Endpos.
y
4 s/mm
Stellzeit
Autotest
Pause
Endpos.
0,05
0,15
ON
V
Hysterese
S
INIT
20 21 22 23 24 25
WE1 WE2
