HORA MC55/24 - Fitting the PCB for the Ma Output Signal

4 Assembly
Linear actuators MC100 • MC103
20 Version 2.1 - March 2011 Operating Manual
5 Set the position switches.
 5.8 Setting a potential-free path switch on page 25
4.6.2 Fitting the PCB for the mA output signal
WARNING
Risk of injury from electric shock by live parts!
When the power supply is on there is a danger of electric shock due to live parts.
• Prior to commencing any work, ensure that the actuator is safely disconnected
from the power supply system.
• Secure against unauthorised restarting.
1 Open the cover (201) of the linear actuator.
 4.4 Assembling/disassembling the cover on page 14
224 V: Clip the PCB for the mA output signal to the safety catches inside the cover
(201).
230 V: Push the PCB for the mA output signal onto the three spacers of the (27)
push-fit PCB (107).

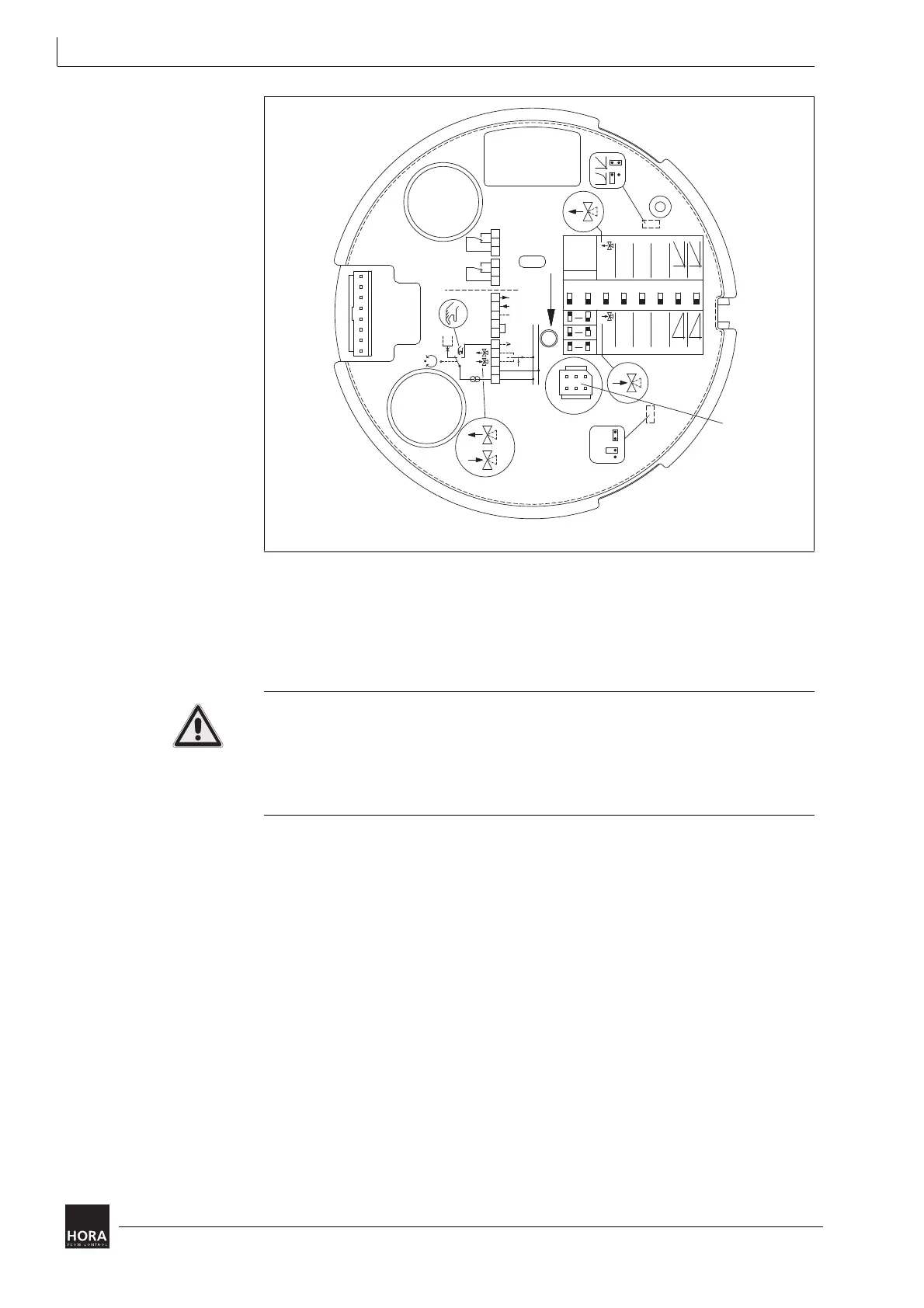

 diagram 13 on page 21
