5 Commissioning
Linear actuators MC160 • MC161 • MC163
Operating Manual Version 2.1 - March 2011 25
5.1 Operating parameters and encoding switch settings
Before starting to operate the linear actuator you will have to set the operating
parameters with the help of the encoding switches and jumpers.
5.2 Setting the input signal
 Additional information: Input signal (Y) on page 8
5.3 Setting the actuating time
 Additional information: 2.4.4 Actuating time on page 9
Switch /
jumper
on off
S1 X-
characteristic
line
X-characteristic
line
S2 Y-characteristic
line
Y-characteristic
line
S3 Input signal (Y)
0 … 10 V DC bzw. 0 … 20 mA
Input signal (Y)
2…10VDC bzw. 4…20mA
S4 Actuating time 4s/mm Actuating time 6 s/mm
S5 Auto test and auto pause on Auto test and auto pause off
S6 Limit position actuator spindle
extended
Limit position actuator spindle
retracted
S7, S8 S7 and S8 are used to set the hysteresis (0.15…0.5V).
JP1 Actuating force 1 kN Actuating force 1.6 kN
JP2 Input signal (Y) in mA Input signal (Y) in V

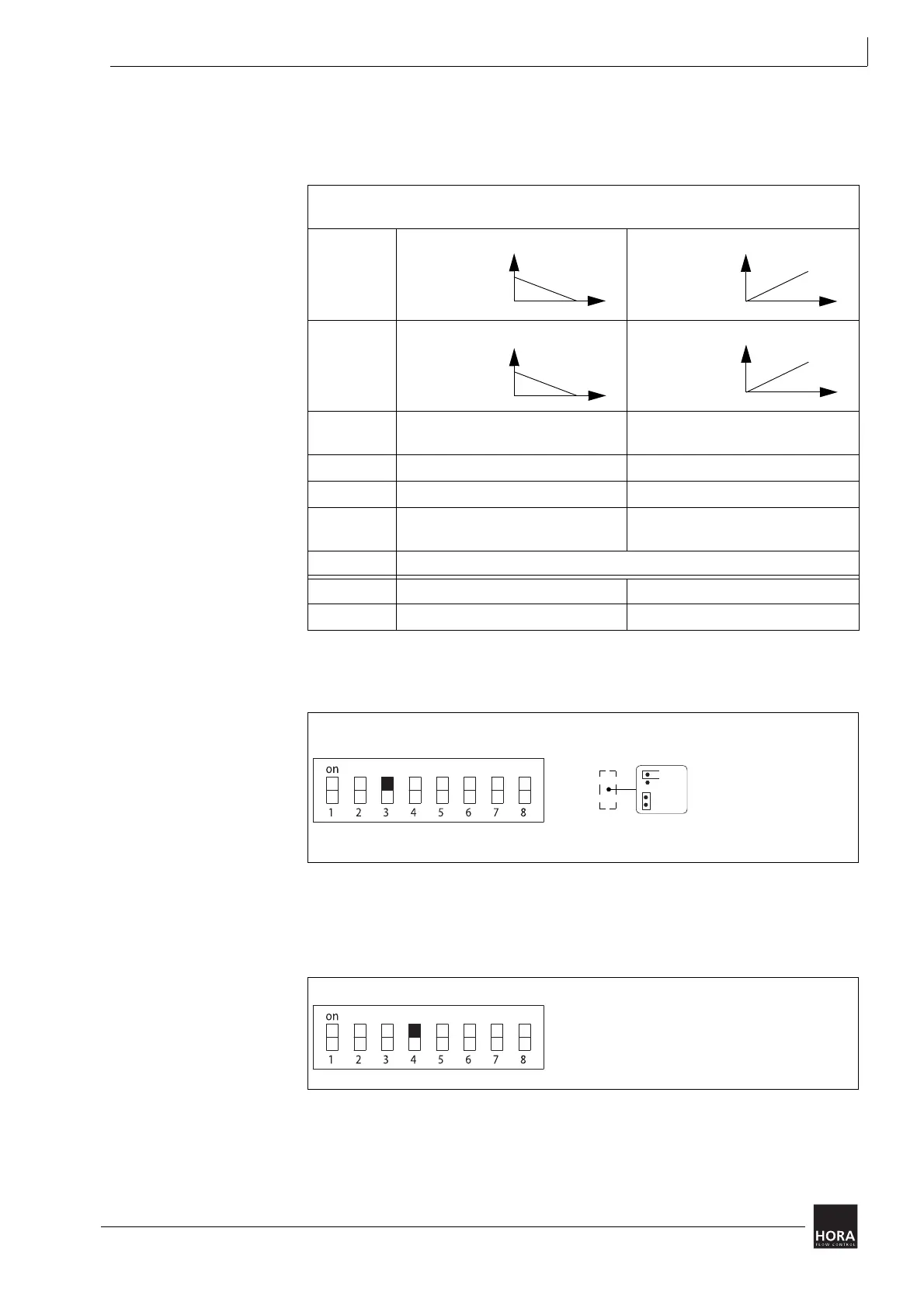

table 4 Encoding switch and jumper settings
Stroke
X
Stroke
X
Stroke
Y
Stroke
Y
diagram 18 Setting the input signal
0 ... 10 V
0 ... 20 mA
JP2
2 ... 10 V
4 ... 20 mA
mA
V
diagram 19 Set actuating time
4 s/mm
6 s/mm
