4 Assembly
Linear actuators MC55
Operating Manual Version 3.3 - November 2014 13
4.4 Assembling/disassembling the cover
Risk of injury from electric shock by live parts!
When the power supply is on there is a danger of electric shock due to live parts.
• Prior to commencing any work, ensure that the actuator is safely disconnected
from the power supply system.
• Secure against unauthorised restarting.
• Remove the cover only momentarily.
How to remove the cover
1 Insert a screwdriver in the notch of the cover and lift the cover (201).
2 Remove the cover (201) carefully.
How to attach the cover
Hint: The cover may be mounted in any position.
1 Place the cover (201) on top and push it down to make it fit by applying
moderate force.
2 Check the cover for correct fit to ensure air-tightness for the actuator housing.
201 Cover

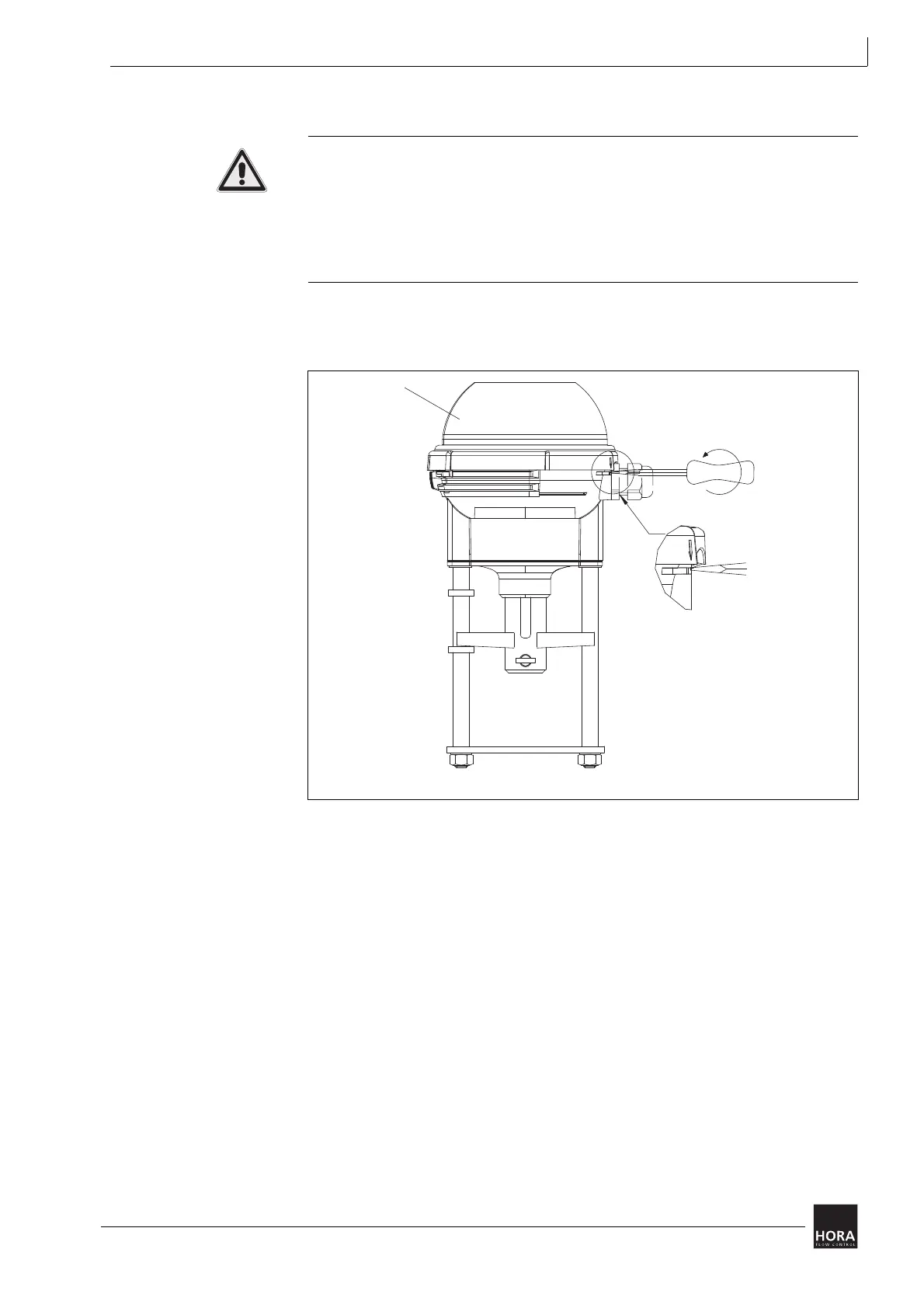

diagram 5 Removing the cover
