HP 2240 - B-12. Floppy Drive SCSI Address;Jumper Settings

B-23
SCSI ID Address Jumpers
Å
Å
Å
Top View of Floppy Disk Drive


ID 0ID 1ID 2
Jumper in = 0; out = 1
SCSI ID Address Jumpers
ID 0ID 1ID 2
Jumpers
0
1
2
3
4
5
6
7
SCSI ID
Address


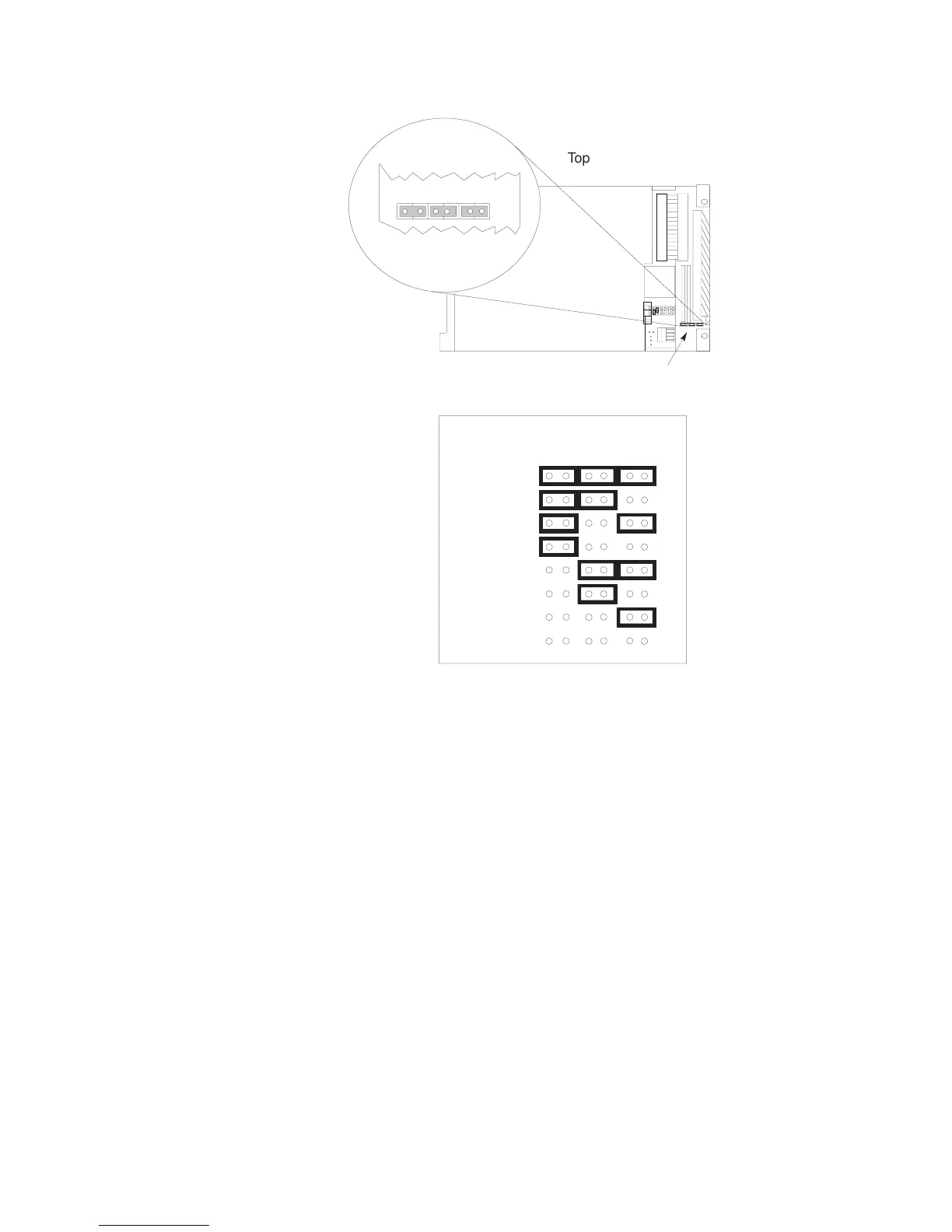

Figure B–12.Floppy Drive SCSI Address/Jumper Settings
