HP 2240 - B-14. Attaching Removable Drive Mounting Bracket and Drive Orientation

B-25
13. Figure B–14 shows the orientation of each of the removable me-
dia drives in the bracket and the position of the screws holding
the drive bracket in place. The same bracket can be used on all
three drives.




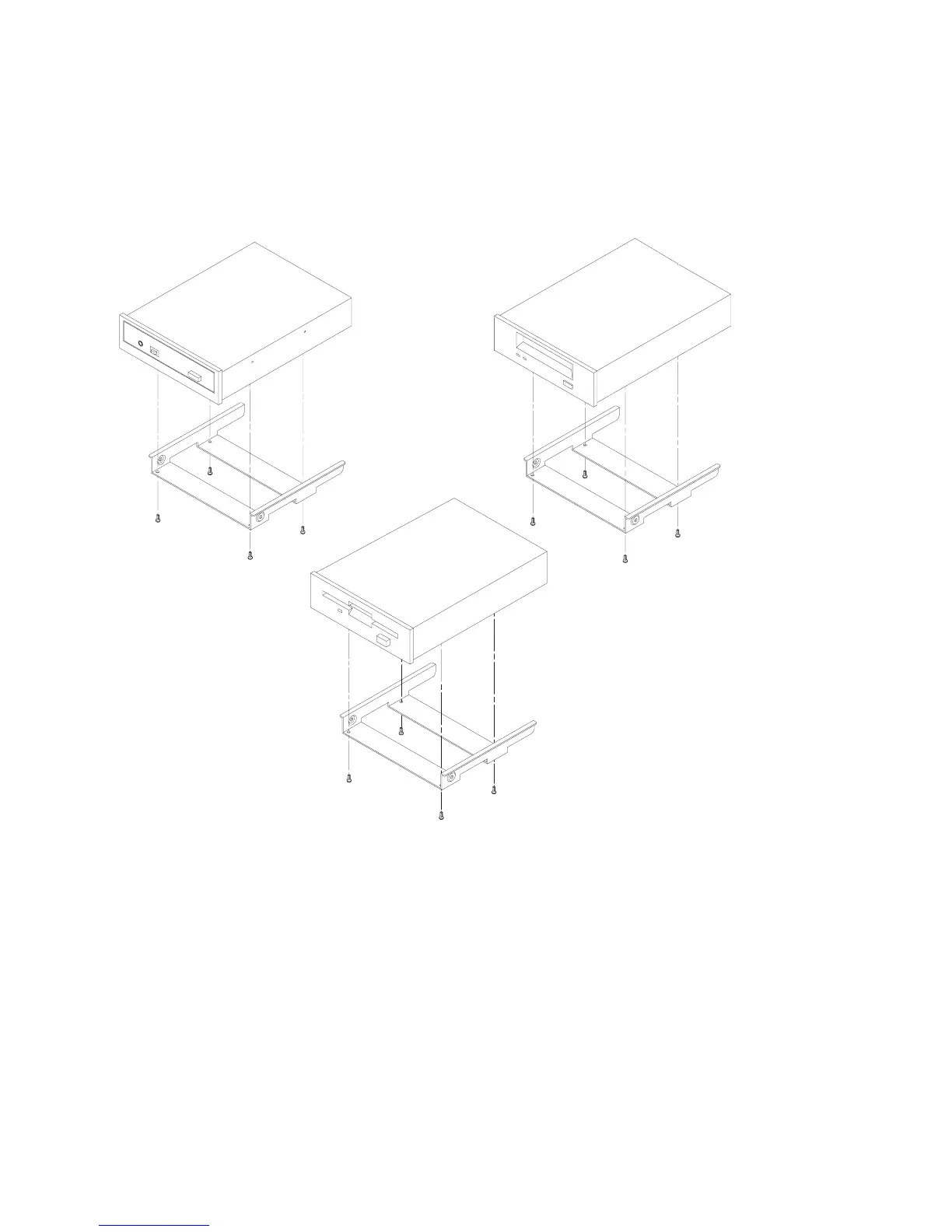

Figure B–14.Attaching Removable Drive Mounting Bracket and Drive Orientation
