B-26
14. With the disk mounting bracket between the guides on each side
of the Storage Assembly, slide the disk into the Storage Assem-
bly, securing it with the two side screws. See Figure B–15. Do
not over-tighten the side screws.
Reconnect the drive
SCSI and power cables
here.

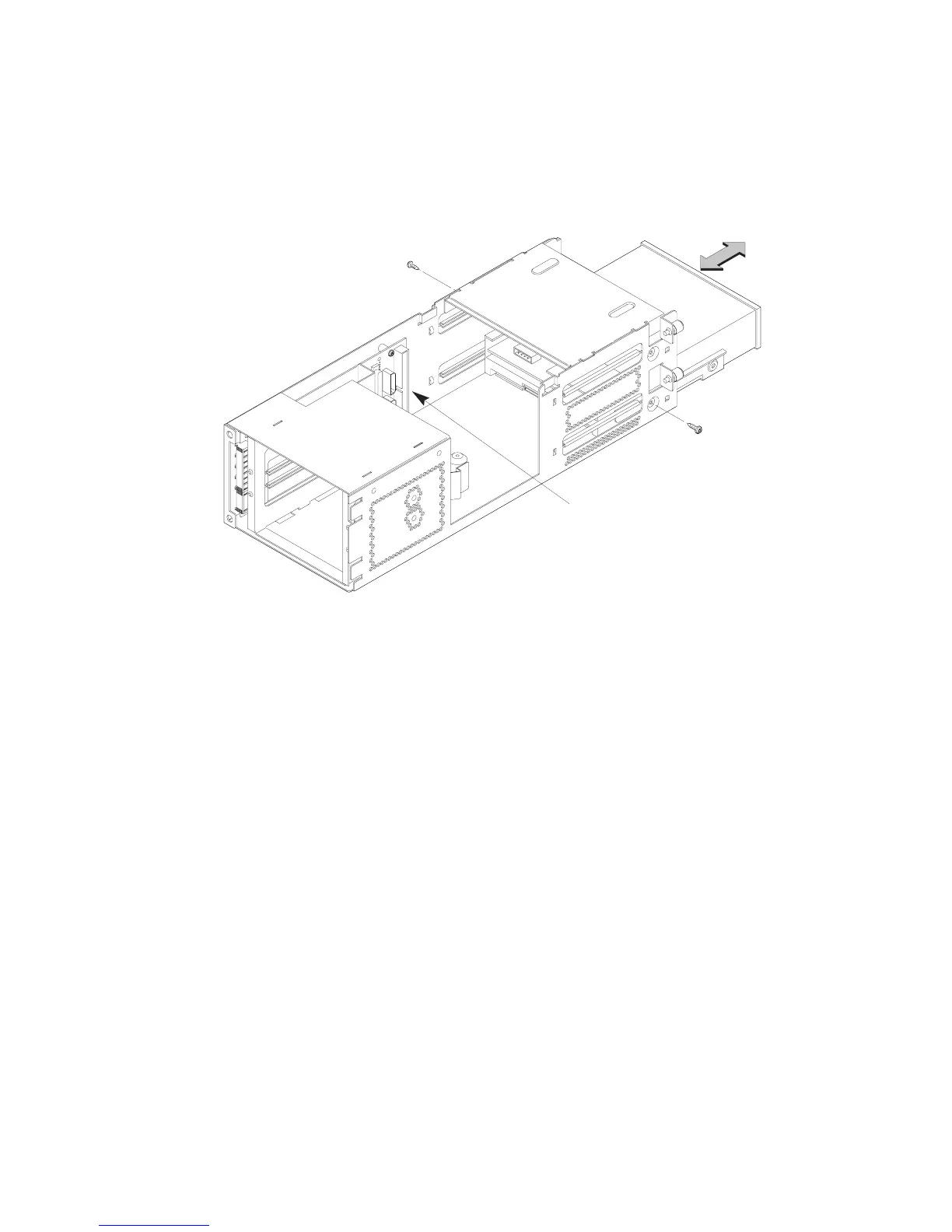

Figure B–15.Replacing Drive Screws
15. Reconnect the cabling from the back of the drive to the side of
the drawer assembly. See Figure NO TAG.
16. Secure the EMI plate at the back of the removable drives with
the captive screw in the bottom of the plate.
17. Slide the drawer back in.
