5. Be sure you have already checked the SCSI ID of the drive you
want to install using the method described at the beginning of
this section.
6. With the disk mounting bracket between the guides on each side
of the Storage Assembly, slide the disk into the Storage Assem-
bly, securing it to the drawer with two side screws. See
Figure B–20. Do not over-tighten the side screws.
The drives should be placed in the drive bays with the bottom of
each drive toward the middle, as shown in Figure B–20. Refer to
Figure B–18 for drive orientation in the bracket.

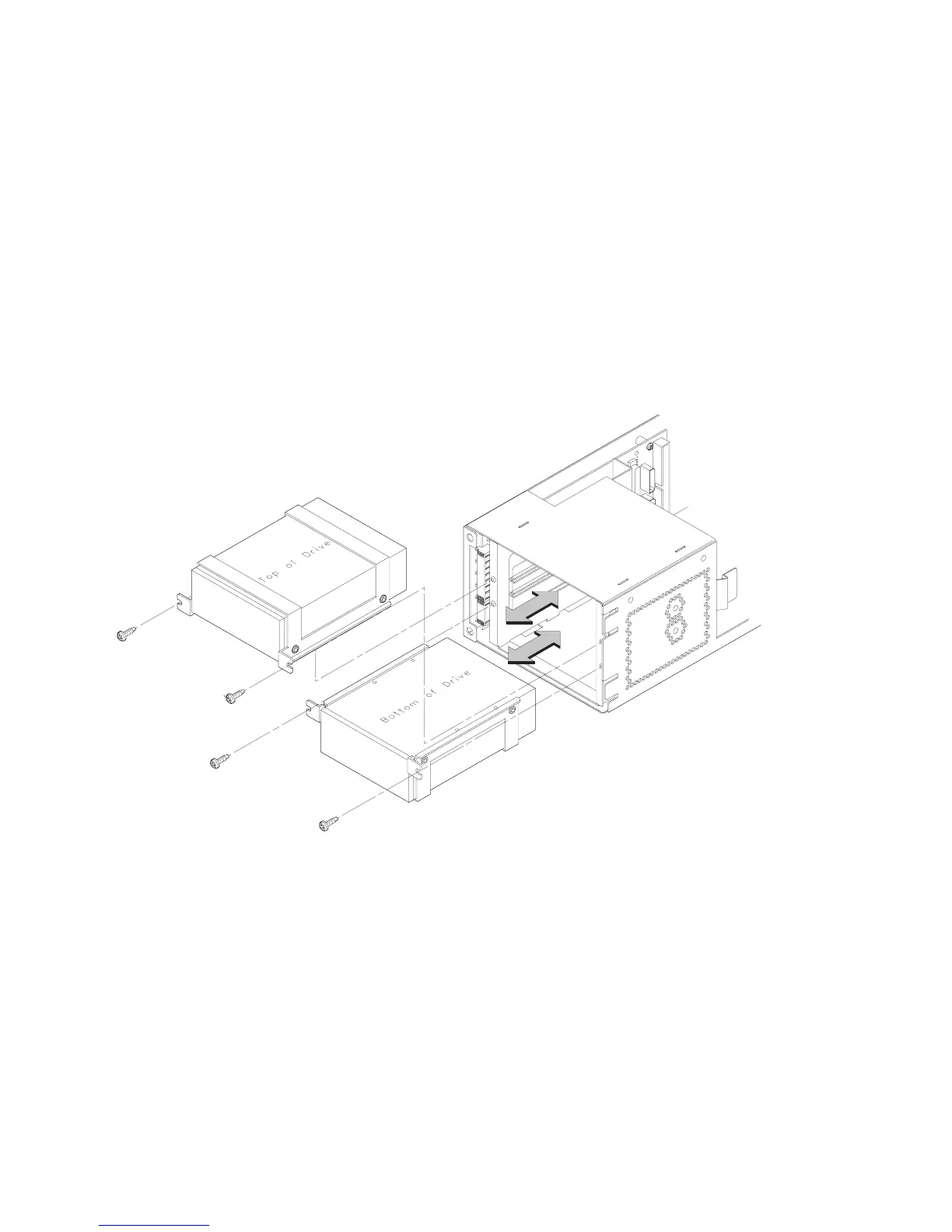

Figure B–20.Placing Hard Drives in Storage Drawer
