and maximum future capacity, use 512 MB DIMM pairs exclu-
sively.
Front of
System
3B
7B
3A
7A
5B
1B
5A
1A
2B
6B
2A
6A
4B
0B
4A
0A
Pair 4
Pair 2
Pair 3
Pair 1
Pair 8
Pair 6
Pair 7
Pair 5
CPU Modules
J18
J17
J16
J15
J31
J30
J29
J28
J26
J25
J24
J23
J22
J21
J20
J19

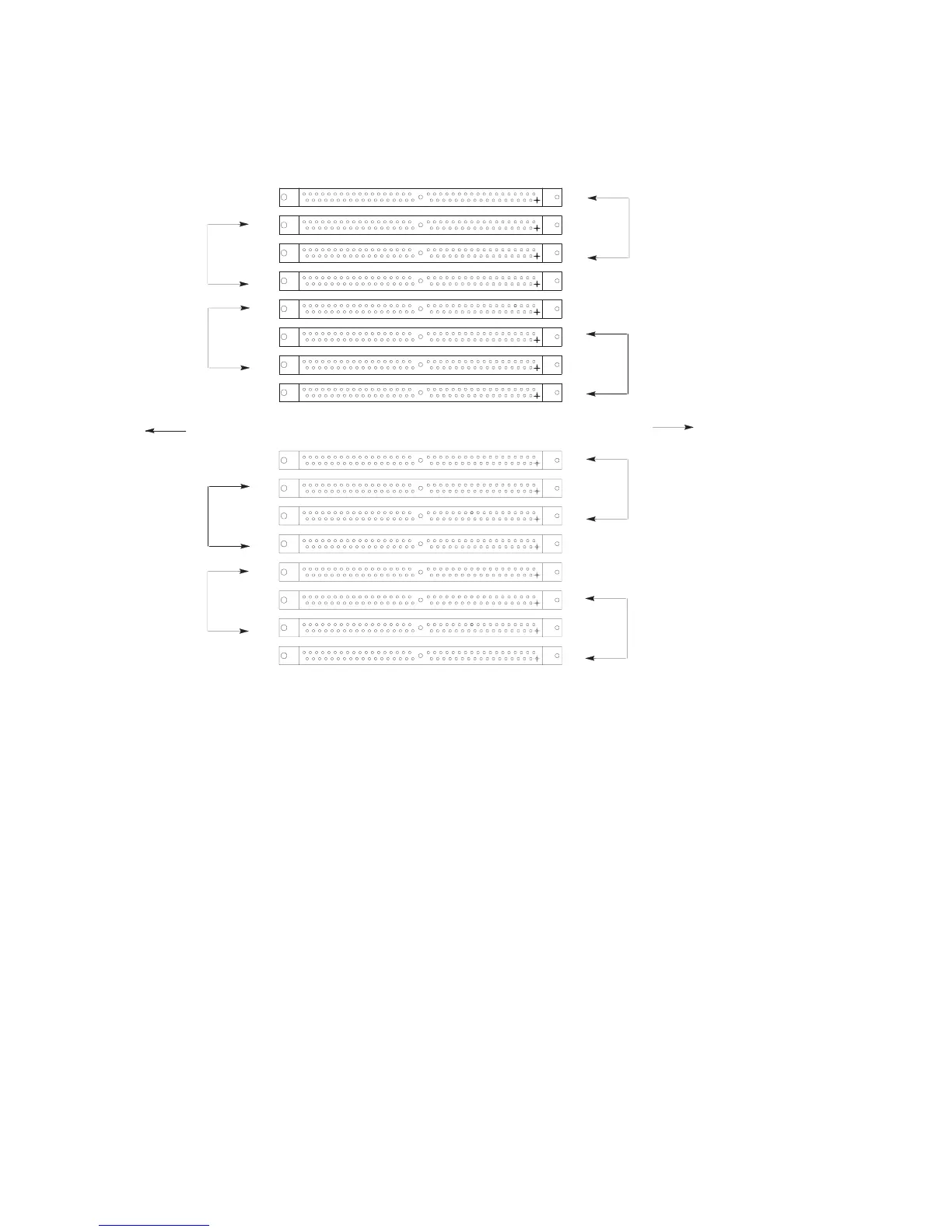

Figure B–24. Memory DIMM Sequence
9. Open the ejector tab by pressing down on it at the left of the con-
nector. Refer to Figure B–25.
